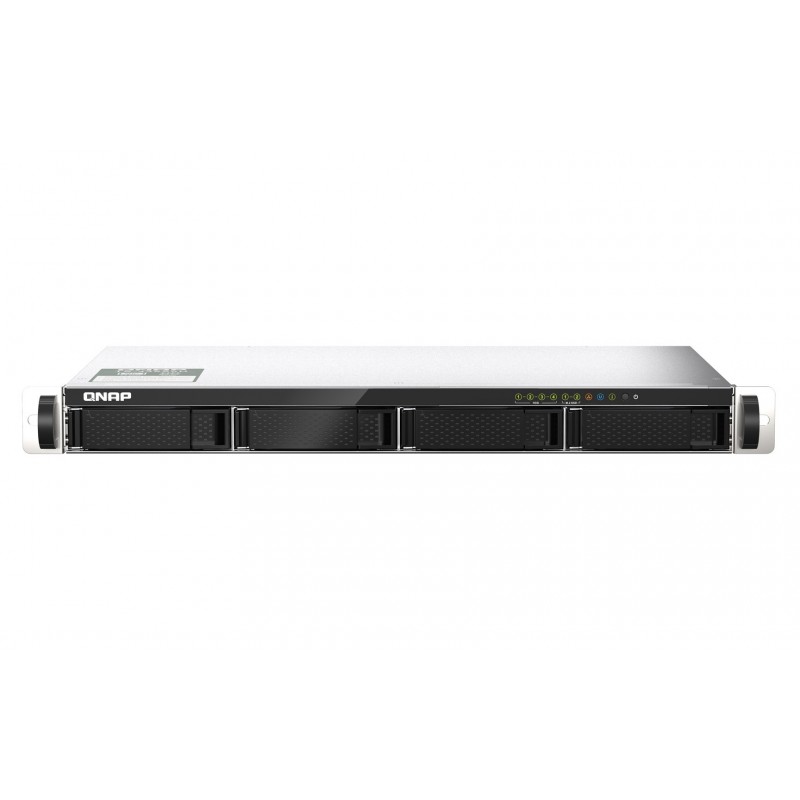

QNAP TS-435XEU NAS Rack (1U) Marvell CN9131 4 GB DDR4 0 TB QNAP QTS Black, Grey

Data sheet

Height

43.3 mm

Width

430 mm

Depth

292.1 mm

Weight

4.17 kg

Type

NAS

Memory slots

1

Storage temperature (T-T)

-20 - 70 °C

Operating temperature (T-T)

0 - 40 °C

USB port

Yes

Mac operating systems supported

Yes

Remotely operated

Yes

Cables included

AC
LAN (RJ-45)

On/off switch

Yes

USB 2.0 ports quantity

2

Internal memory

4 GB

AC input voltage

100 - 240 V

Power consumption (typical)

30.878 W

Windows operating systems supported

Yes

AC input frequency

50 - 60 Hz

Processor model

CN9131

Processor family

Marvell

Processor frequency

2.2 GHz

Operating system version

5.0.0

Operating system installed

QNAP QTS

Ethernet LAN (RJ-45) ports

2

Internal memory type

DDR4

Processor cores

4

Flash memory

4000 MB

Operating relative humidity (H-H)

5 - 95%

LED indicators

Yes

Ethernet LAN data rates

100
1000 Mbit/s
2500 Mbit/s
10000 Mbit/s

Ethernet LAN

Yes

Cable lock slot

Yes

Product colour

Black
Grey

Supported file systems

FAT32
HFS+
NTFS
exFAT
ext3
ext4

Harmonized System (HS) code

84714100

Processor manufacturer

Marvell

Memory form factor

SO-DIMM

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Cable lock slot type

Kensington

Linux operating systems supported

Yes

Number of screws

28

S.M.A.R.T. support

Yes

RAID support

Yes

Server operating systems supported

Windows Server 2008 R2
Windows Server 2012
Windows Server 2012 R2
Windows Server 2016
Windows Server 2019

Cooling type

Active

Chassis type

Rack (1U)

Maximum RAM supported

32 GB

Number of fans

3 fan(s)

Fan diameter

4 cm

Power supply location

Built-in

Supported storage drive interfaces

M.2, Serial ATA II, Serial ATA III

Wake-on-LAN ready

Yes

RAID levels

0
1
5
6
10
JBOD

Number of storage drives supported

4

Supported storage drive types

HDD & SSD

Buzzer

Yes

Storage drive sizes supported

2.5
3.5"
M.2

Device class

Small & Medium Business

Power cables quantity

1

Total installed storage capacity

0 TB

Storage drives installed

No

Installed storage drive type

No

Jumbo frames support

Yes

Fiber optic connector

SFP+

Fiber ports quantity

2

Browser supported

Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox, Microsoft Edge

Rack mount kit

Yes

Power supply unit (PSU) capacity

100 W

iSCSI support

Yes

Backup function

Yes

Reset button

Yes

Snapshot

Yes

Multilingual support

Yes

Access Control List (ACL)

Yes

Hot-swap drive bays

Yes

Number of power supply units

1

Backup features

Cloud
iSCSI LUN

System log

Yes

Built-in FTP server

Yes

Share folder

Y

Power consumption (HDD standby)

17.367 W

Link aggregation

Yes

Hot spare

Yes

Online RAID migration

Yes

Online RAID expansion

Yes

Concurrent connections

1500

Load balancing system

Yes

Dynamic DNS (DDNS)

Yes

DHCP server

Yes

Disk roaming

Yes

Fan voltage

12 V

RAID rebuild

Yes

Auto-rebuild

Yes

DHCP client

Yes

Disk scan

Yes

Bad block scan

Yes

Universal Plug and Play (UPnP)

Yes
