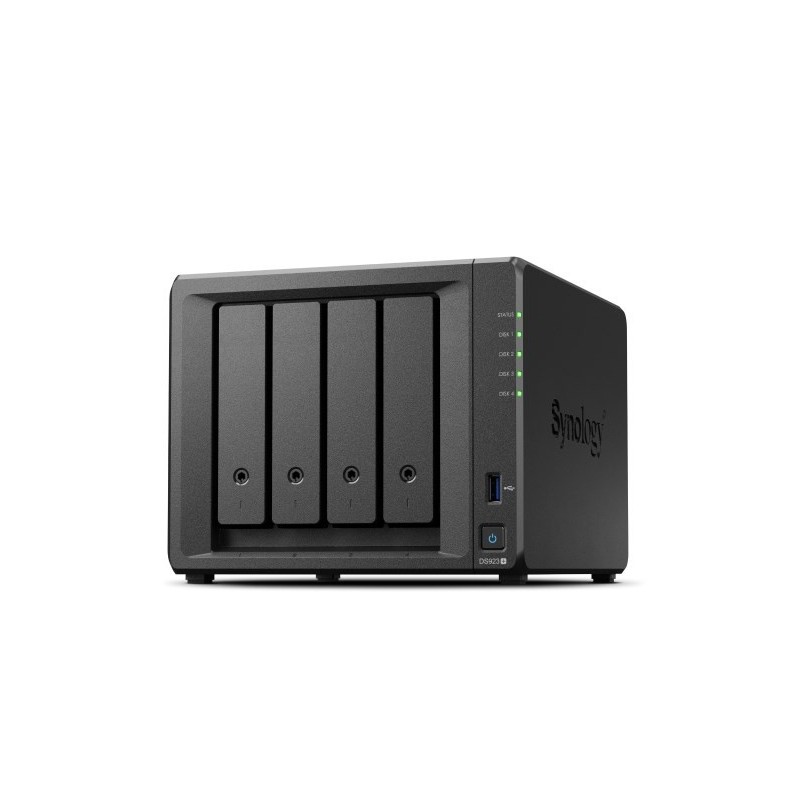

Synology DiskStation DS923+ NAS/storage server Tower Ryzen Embedded R1600 4 GB DDR4L 0 TB DiskStation Manager Black

Data sheet

Height

166 mm

Width

199 mm

Depth

223 mm

Weight

2.34 kg

Type

NAS

Memory slots

2

Storage temperature (T-T)

-20 - 60 °C

Built-in speaker(s)

No

Operating temperature (T-T)

0 - 40 °C

USB port

Yes

Cables included

AC
LAN (RJ-45)

On/off switch

Yes

Internal memory

4 GB

AC input voltage

100 - 240 V

Power consumption (typical)

35.51 W

Built-in display

No

AC input frequency

50 / 60 Hz

Processor model

R1600

Processor family

Ryzen Embedded

Processor frequency

-2.6 GHz

Operating system version

7.1.1

Operating system installed

DiskStation Manager

Ethernet LAN (RJ-45) ports

2

Internal memory type

DDR4L

Processor cores

2

Processor boost frequency

3.1 GHz

Card reader integrated

No

Operating relative humidity (H-H)

5 - 95%

LED indicators

Yes

Ethernet LAN data rates

10
100
1000 Mbit/s

Ethernet LAN

Yes

Cable lock slot

Yes

Certification

FCC
BSMI
VCCI
RCM
UKCA
EAC
CCC
KC

Product colour

Black

Supported file systems

BTRFS
Fat
HFS+
NTFS
ext3
ext4

Security algorithms

AES

Processor manufacturer

AMD

Processor generation

AMD Ryzen Embedded R1000 Series

ECC

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Sustainability compliance

Yes

Cable lock slot type

Kensington

Compliance certificates

CE
RoHS

External power adapter

Yes

RAID support

Yes

Server operating systems supported

Windows Server 2016
Windows Server 2019

Cooling type

Active

Chassis type

Tower

Noise level

22.9 dB

Supported network protocols

SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

Maximum RAM supported

32 GB

Number of fans

2 fan(s)

Fan diameter

9.2 cm

Power supply location

External

Supported storage drive interfaces

M.2, Serial ATA III

Wake-on-LAN ready

Yes

RAID levels

0
1
5
6
10
JBOD

Number of storage drives supported

4

Supported storage drive types

HDD & SSD

Storage drive sizes supported

2.5
3.5"

Copper ethernet cabling technology

10BASE-T
100BASE-TX
1000BASE-T

Device class

Home & Home Office

Power cables quantity

1

Total installed storage capacity

0 TB

Storage drives installed

No

Installed storage drive type

No

Management protocols

SNMP

Browser supported

Google Chrome, Firefox, Microsoft Edge, Safari

Power supply unit (PSU) capacity

100 W

iSCSI support

Yes

Backup function

Yes

Reset button

Yes

Multilingual support

Yes

Access Control List (ACL)

Yes

Hot-swap drive bays

Yes

Redundant power supply (RPS) support

No

Number of power supply units

1

Backup features

Cloud
iSCSI LUN

Built-in FTP server

Yes

Number of M.2 (M & B) slots

2

Drive bay locking

Yes

Power consumption (HDD standby)

11.52 W

Link aggregation

Yes

Hot spare

Yes

Online RAID migration

Yes

Online RAID expansion

Yes

eSATA ports quantity

1

PCI Express x2 (Gen 3.x) slots

1

Built-in UPnP AV media server

Yes
