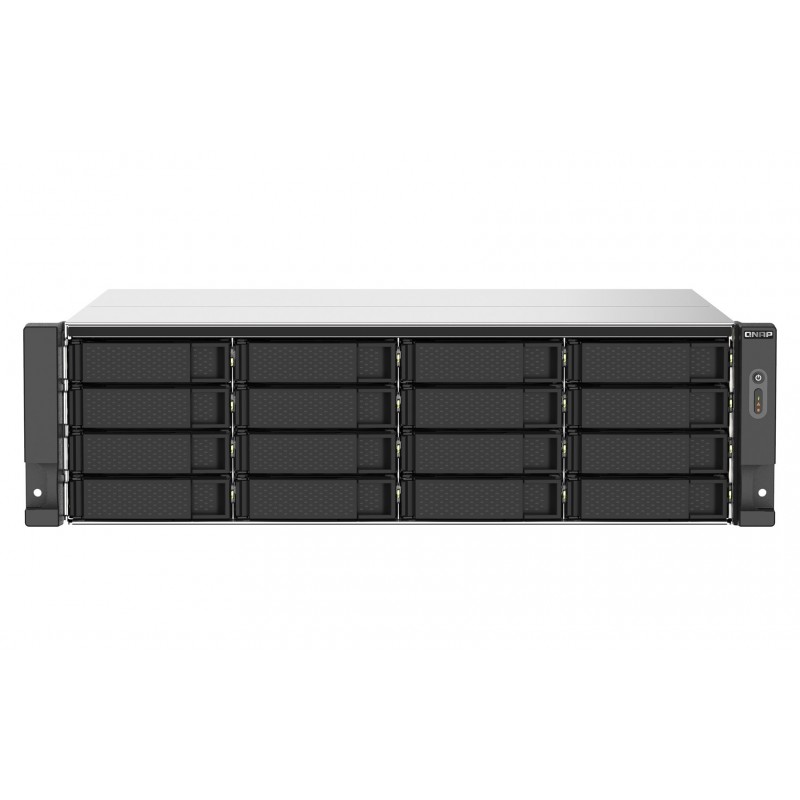

Qnap TS-1673AU-RP-16G, 3U, 16 x 2.5"/3.5" SATA, AMD Ryzen V1500B 4C/8T, 16GB DDR4 (max. 64GB), 2 x 2.5GbE, optional

Data sheet

Height

132 mm

Width

482 mm

Depth

425 mm

Weight

12 kg

Type

NAS

Memory slots

2

Storage temperature (T-T)

-20 - 70 °C

Operating temperature (T-T)

0 - 40 °C

USB port

Yes

Mac operating systems supported

Mac OS X 10.10 Yosemite
Mac OS X 10.11 El Capitan
Mac OS X 10.12 Sierra
Mac OS X 10.13 High Sierra
Mac OS X 10.14 Mojave
Mac OS X 10.15 Catalina
Mac OS X 10.15.3 Catalina

Package weight

17.1 kg

Cables included

AC
LAN (RJ-45)

On/off switch

Yes

Internal memory

16 GB

AC input voltage

100 - 240 V

Power consumption (typical)

97.34 W

Windows operating systems supported

Windows 7
Windows 8
Windows 10

AC input frequency

50 - 60 Hz

Processor model

V1500B

Processor family

Ryzen Embedded

Processor frequency

2.2 GHz

Operating system version

5.0.0

Operating system installed

QNAP QTS

Ethernet LAN (RJ-45) ports

2

Internal memory type

DDR4

Processor cores

4

Flash memory

5000 MB

Storage drive capacity

0 GB

Operating relative humidity (H-H)

5 - 95%

LED indicators

HDD
LAN
Power
Status
USB

Ethernet LAN data rates

10
100
1000 Mbit/s
2500 Mbit/s

Ethernet LAN

Yes

Product colour

Black
Grey

Supported file systems

FAT32
HFS+
NTFS
ext3
ext4

Harmonized System (HS) code

84714100

Security algorithms

256-bit AES
FIPS 140-2
HTTPS
SNMPv3
SSH
SSL/TLS

Processor manufacturer

AMD

Processor generation

AMD Ryzen Embedded V1000 Series

On-board graphics card model

Not available

Memory form factor

UDIMM

Processor threads

8

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

Linux operating systems supported

Yes

Number of screws

64

S.M.A.R.T. support

Yes

RAID support

Yes

Power consumption (sleep)

47.75 W

Server operating systems supported

Windows Server 2008 R2
Windows Server 2008 R2 x64
Windows Server 2012
Windows Server 2012 R2
Windows Server 2012 R2 x64
Windows Server 2012 x64
Windows Server 2016
Windows Server 2016 x64
Windows Server 2019

Cooling type

Active

Chassis type

Rack (3U)

Maximum RAM supported

32 GB

Number of fans

3 fan(s)

Fan diameter

8 cm

Power supply location

Built-in

Other operating systems supported

Solaris 10

Supported storage drive interfaces

Serial ATA II, Serial ATA III

RAID levels

0
1
5
6
10
50
60
JBOD

Number of storage drives supported

16

Supported storage drive types

HDD & SSD

Buzzer

Yes

L2 cache

2 MB

Storage drive sizes supported

2.5
3.5"

L3 cache

4 MB

Device class

Small & Medium Business

Total installed storage capacity

0 TB

Storage drives installed

Yes

Installed storage drive type

No

Jumbo frames support

Yes

Browser supported

Apple Safari 7+, Google Chrome, Microsoft Internet Explorer 10+, Mozilla Firefox

Web-based management

Yes

Power supply unit (PSU) capacity

550 W

iSCSI support

Yes

Backup function

Yes

Reset button

Yes

Snapshot

Yes

Multilingual support

Yes

Access Control List (ACL)

Yes

Hot-swap drive bays

Yes

Number of power supply units

2

Backup features

Cloud
iSCSI LUN

System log

Yes

Built-in FTP server

Yes

Share folder

CIFS/SMB

Hot spare

Yes

Third-party support

Yes

Built-in iTunes server

Yes

Online RAID migration

Yes

Online RAID expansion

Yes

Dynamic DNS (DDNS)

Yes

DHCP server

Yes

Fan voltage

12 V

RAID rebuild

Yes

DHCP client

Yes

Bad block scan

Yes

Universal Plug and Play (UPnP)

Yes
