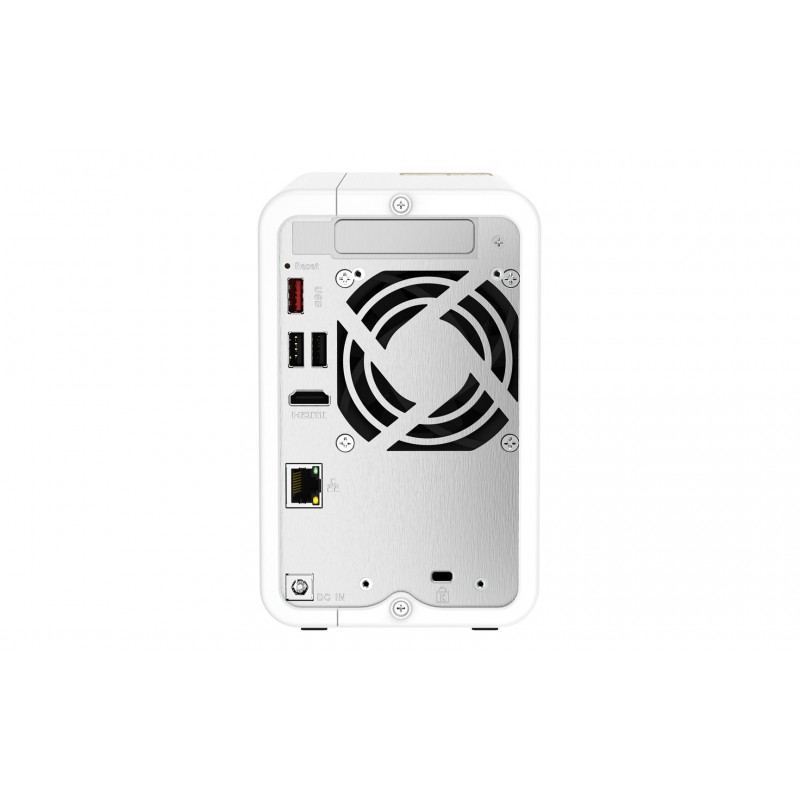

QNAP TS-262 NAS Tower Ethernet LAN Gold, White N4505

Data sheet

Height

168 mm

Width

105 mm

Depth

226 mm

Weight

1.55 kg

Type

NAS

Storage temperature (T-T)

-20 - 70 °C

Operating temperature (T-T)

0 - 40 °C

USB port

Yes

Mac operating systems supported

Mac OS X 10.10 Yosemite
Mac OS X 10.11 El Capitan
Mac OS X 10.12 Sierra
Mac OS X 10.13 High Sierra
Mac OS X 10.14 Mojave
Mac OS X 10.15 Catalina
Mac OS X 10.15.3 Catalina
Mac OS X 11.0 Big Sur
Mac OS X 12.0 Monterey

Remotely operated

Yes

Package weight

2.68 kg

Cables included

AC
LAN (RJ-45)

On/off switch

Yes

USB 2.0 ports quantity

2

Internal memory

4 GB

AC input voltage

100 - 240 V

Power consumption (typical)

12.448 W

Windows operating systems supported

Windows 7
Windows 7 Enterprise
Windows 7 Enterprise x64
Windows 7 Home Basic
Windows 7 Home Basic x64
Windows 7 Home Premium
Windows 7 Home Premium x64
Windows 7 Professional
Windows 7 Professional x64
Windows 7 Starter
Windows 7 Starter x64
Windows 7 Ultimate
Windows 7 Ultimate x64
Windows 7 x64
Windows 8
Windows 8 Enterprise
Windows 8 Enterprise x64
Windows 8 Pro
Windows 8 Pro x64
Windows 8 x64
Windows 8.1
Windows 8.1 Enterprise
Windows 8.1 Enterprise x64
Windows 8.1 Pro
Windows 8.1 Pro x64
Windows 8.1 x64
Windows 10
Windows 10 Education
Windows 10 Education x64
Windows 10 Enterprise
Windows 10 Enterprise x64
Windows 10 Home
Windows 10 Home x64
Windows 10 IOT Core
Windows 10 IoT Enterprise
Windows 10 Pro
Windows 10 Pro x64
Windows 10 x64
Windows 11
Windows 11 x64

Processor model

N4505

Processor family

Intel® Celeron®

Processor frequency

2 GHz

Operating system version

5.0.1

Operating system installed

QNAP QTS

Ethernet LAN (RJ-45) ports

1

Processor cores

2

HDMI ports quantity

1

Processor boost frequency

2.9 GHz

Flash memory

4000 MB

Operating relative humidity (H-H)

5 - 95%

LED indicators

HDD
LAN
Power
Status
USB

Ethernet LAN data rates

10
100
1000 Mbit/s
2500 Mbit/s

Ethernet LAN

Yes

Cable lock slot

Yes

HDMI version

2.0

Number of users

4096 user(s)

Product colour

Gold
White

Supported file systems

HFS+
NTFS
exFAT
ext3
ext4

Security algorithms

256-bit AES
FIPS 140-2

Processor manufacturer

Intel

Processor cache

4 MB

On-board graphics card model

Intel® UHD Graphics

Processor threads

2

Cable lock slot type

Kensington

Enhanced Intel SpeedStep Technology

Yes

Intel 64

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

Intel VT-x with Extended Page Tables (EPT)

Yes

Intel Virtualization Technology (VT-x)

Yes

CPU configuration (max)

1

Intel Trusted Execution Technology

No

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Linux operating systems supported

Yes

External power adapter

Yes

Number of screws

12

S.M.A.R.T. support

Yes

RAID support

Yes

Power consumption (sleep)

8.198 W

Server operating systems supported

Windows Server 2008 R2
Windows Server 2012
Windows Server 2012 R2
Windows Server 2019

Cooling type

Active

Chassis type

Tower

Idle States

Yes

Supported network protocols

IPv4, IPv6

Maximum RAM supported

4 GB

Number of fans

1 fan(s)

Quick installation guide

Yes

Fan diameter

7 cm

Power supply location

External

Other operating systems supported

IBM AIX 7.1
IBM AIX 7.2
Solaris 10
Solaris 10 SPARC
Solaris 11
Solaris 11 SPARC

Supported storage drive interfaces

Serial ATA III

RAID levels

0
1
JBOD

Number of storage drives supported

2

Supported storage drive types

HDD & SSD

Buzzer

Yes

Storage drive sizes supported

2.5
3.5"

Device class

Home & Home Office

Power cables quantity

1

Storage drives installed

No

Installed storage drive type

No

Jumbo frames support

Yes

Browser supported

Apple Safar, Google Chrome, Microsoft Edge, Mozilla Firefox

Power supply unit (PSU) capacity

65 W

iSCSI support

Yes

USB copy function

Yes

Backup function

Yes

Reset button

Yes

Snapshot

Yes

Multilingual support

Yes

Access Control List (ACL)

Yes

Hot-swap drive bays

Yes

Backup features

iSCSI LUN

System log

Yes

Built-in FTP server

Yes

Number of M.2 (M & B) slots

2

Share folder access right management

Yes

Share folder

512

Hot spare

Yes

Online RAID migration

Yes

Online RAID expansion

Yes

Concurrent connections

1500

PCI Express x2 (Gen 3.x) slots

1

Dynamic DNS (DDNS)

Yes

DHCP server

Yes

Disk roaming

Yes

Fan voltage

12 V

RAID rebuild

Yes

Fibre Channel

Yes
