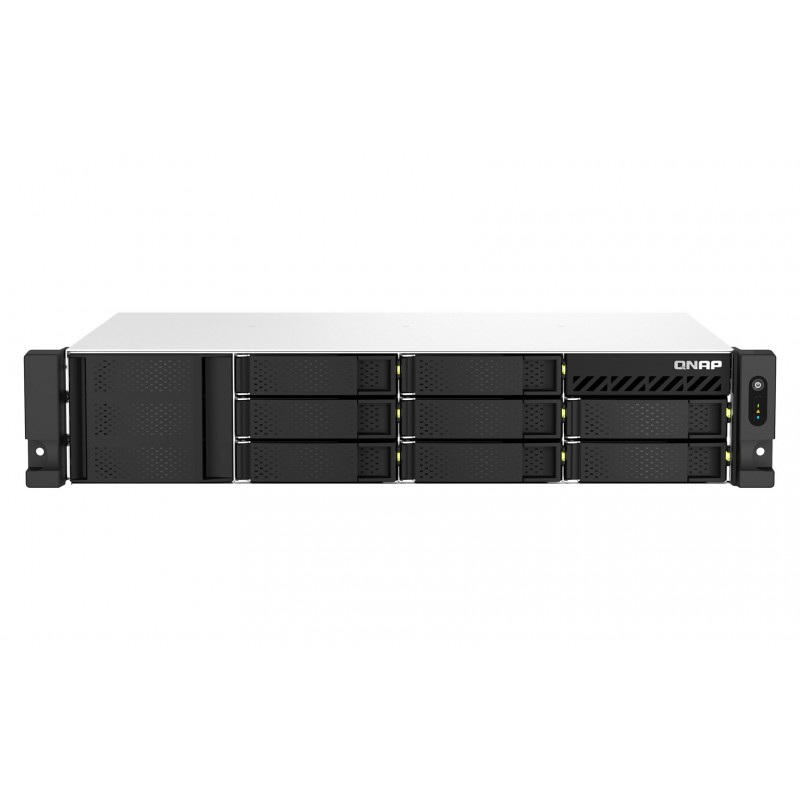

QNAP TS-864EU-8G NAS/storage server Rack (2U) Ethernet LAN Black

Data sheet

Height

88.6 mm

Width

482.1 mm

Depth

318.1 mm

Weight

6.68 kg

Type

NAS

Memory slots

2

Storage temperature (T-T)

-20 - 70 °C

Operating temperature (T-T)

0 - 40 °C

USB port

Yes

Mac operating systems supported

Yes

Package weight

9.25 kg

Cables included

AC
LAN (RJ-45)

On/off switch

Yes

Internal memory

8 GB

AC input voltage

100 - 240 V

Power consumption (typical)

51.022 W

Windows operating systems supported

Yes

Processor family

Intel® Celeron®

Operating system version

5.0.0

Operating system installed

QNAP Turbo System

Ethernet LAN (RJ-45) ports

2

Internal memory type

DDR4

Processor cores

4

HDMI ports quantity

1

Processor boost frequency

2.9 GHz

Flash memory

4000 MB

Operating relative humidity (H-H)

5 - 95%

LED indicators

Yes

Ethernet LAN data rates

100
1000 Mbit/s
2500 Mbit/s

Ethernet LAN

Yes

Storage relative humidity (H-H)

5 - 95%

HDMI version

1.4b

Product colour

Black

Supported file systems

FAT32
HFS+
NTFS
ext3
ext4

Security algorithms

256-bit AES
FIPS 140-2
HTTPS
SNMPv2
SNMPv3

Processor manufacturer

Intel

On-board graphics card model

Intel® UHD Graphics

Memory form factor

SO-DIMM

Processor threads

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

Linux operating systems supported

Yes

Number of screws

56

S.M.A.R.T. support

Yes

RAID support

Yes

Power consumption (sleep)

24.776 W

Cooling type

Active

Chassis type

Rack (2U)

Maximum RAM supported

16 GB

Number of fans

2 fan(s)

Fan diameter

8 cm

Power supply location

Built-in

Supported storage drive interfaces

Serial ATA II, Serial ATA III

Wake-on-LAN ready

Yes

RAID levels

0
1
5
6
10
50
60
JBOD

Number of storage drives supported

8

Supported storage drive types

HDD & SSD

Buzzer

Yes

Storage drive sizes supported

2.5
3.5"

Number of processors supported

1

Storage drive interface

Serial ATA III

Device class

Small & Medium Business

Storage drives installed

No

Installed storage drive type

No

Jumbo frames support

Yes

Browser supported

Mozilla Firefox, Microsoft Edge, Google Chrome, Apple Safari

Web-based management

Yes

Power supply unit (PSU) capacity

300 W

iSCSI support

Yes

Backup function

Yes

Reset button

Yes

Snapshot

Yes

Multilingual support

Yes

Access Control List (ACL)

Yes

Hot-swap drive bays

Yes

Number of power supply units

1

Backup features

iSCSI LUN

System log

Yes

Built-in FTP server

Yes

Hot spare

Yes

Online RAID migration

Yes

Online RAID expansion

Yes

Concurrent connections

1500

Dynamic DNS (DDNS)

Yes

DHCP server

Yes

Fan voltage

12 V
