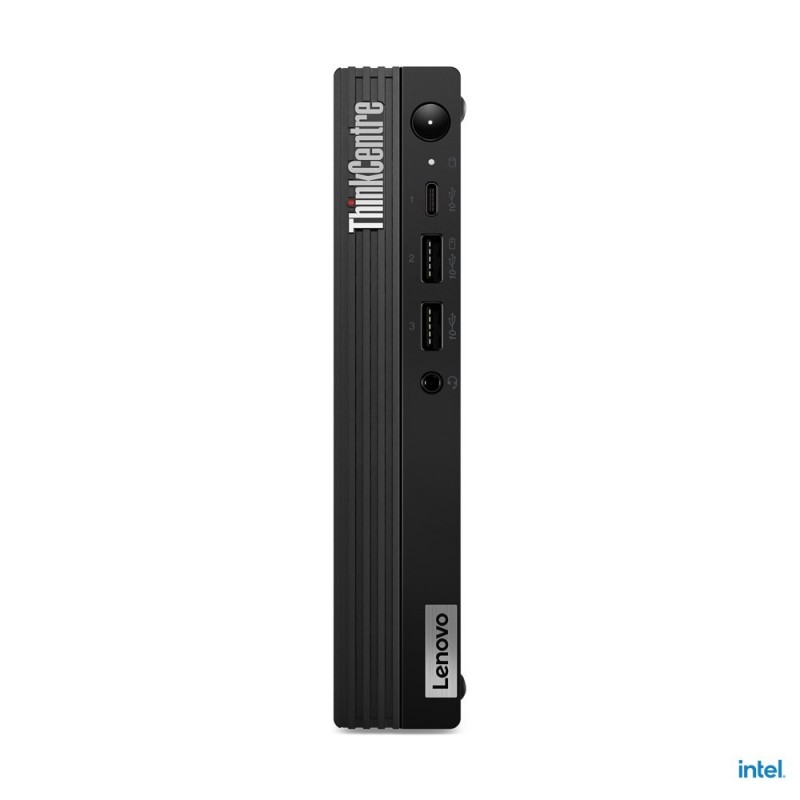

Lenovo ThinkCentre M80q G3 Tiny i5-12500T 16GB DDR5 SSD256 UHD 770 W11Pro Black 3Y OnSite

Data sheet

Height

36.5 mm

Width

179 mm

Depth

182.9 mm

Weight

1.25 kg

Bluetooth

Yes

Bluetooth version

5.3

power supply

90 W

Product Type

Mini PC

SSD Capacity

256 GB

Memory slots

2x SO-DIMM

Storage temperature (T-T)

-40 - 60 °C

Built-in microphone

No

Built-in speaker(s)

Yes

Operating temperature (T-T)

5 - 35 °C

Operating altitude

0 - 3048 m

Wi-Fi

Yes

Number of speakers

1

Internal memory

16 GB

Processor model

i5-12500T

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Processor family

Intel® Core™ i5

Processor frequency

2 GHz

Operating system installed

Windows 11 Pro

Ethernet LAN (RJ-45) ports

1

Internal memory type

DDR5-SDRAM

Processor cores

6

HDMI ports quantity

1

Storage media

SSD

Processor boost frequency

4.4 GHz

Total storage capacity

256 GB

Optical drive type

No

Card reader integrated

No

Operating system architecture

64-bit

Memory clock speed

4800 MHz

Memory layout (slots x size)

1 x 16 GB

Maximum internal memory

64 GB

DisplayPorts quantity

1

Operating relative humidity (H-H)

20 - 80%

Ethernet LAN data rates

100
1000 Mbit/s

Audio system

High Definition Audio

Ethernet LAN

Yes

Volume

1 L

Storage relative humidity (H-H)

10 - 90%

Non-operating altitude

0 - 12192 m

Cable lock slot

Yes

Placement supported

Horizontal/Vertical

Certification

EPEAT Silver
ENERGY STAR 8.0
ErP Lot 3
TCO Certified 9.0
RoHS compliant

HDMI version

2.1

DisplayPort version

1.4

Product colour

Black

Sustainability certificates

ENERGY STAR
EPEAT Silver
ErP
TCO

Processor manufacturer

Intel

Processor cache type

Smart Cache

Processor generation

12th gen Intel® Core™ i5

Processor cache

18 MB

Discrete graphics card

No

On-board graphics card

Yes

On-board graphics card model

Intel UHD Graphics 770

On-board graphics card family

Intel® UHD Graphics

Discrete graphics card model

Not available

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Mobile network connection

No

Antenna type

2x2

SSD interface

PCI Express 4.0

SSD form factor

M.2

Total SSDs capacity

256 GB

NVMe

Yes

Number of SSDs installed

1

Combo headphone/mic port

Yes

Motherboard chipset

Intel Q670

Trusted Platform Module (TPM)

Yes

Password protection

Yes

WLAN controller manufacturer

Intel

WLAN controller model

Intel Wi-Fi 6E AX211

Keyboard included

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

On-board GPU manufacturer

Intel

Execute Disable Bit

Yes

Embedded options available

No

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Cable lock slot type

Kensington

Memory channels

Dual-channel

Audio chip

Realtek ALC256-VB

Enhanced Intel SpeedStep Technology

Yes

Intel 64

Yes

Bus type

DMI4

Cabling technology

10/100/1000Base-T(X)

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4

Mouse included

Yes

Compliance certificates

RoHS

Password protection type

HDD
Power on
Supervisor

Intel VT-x with Extended Page Tables (EPT)

Yes

Intel Virtualization Technology (VT-x)

Yes

CPU configuration (max)

1

Intel Trusted Execution Technology

Yes

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Chassis type

Mini PC

Idle States

Yes

Intel Stable Image Platform Program (SIPP)

Yes

Warnings

The product contains electrical components which may be hazardous if used incorrectly.
Warning: When in use, do not cover the computer's vents to avoid overheating.
