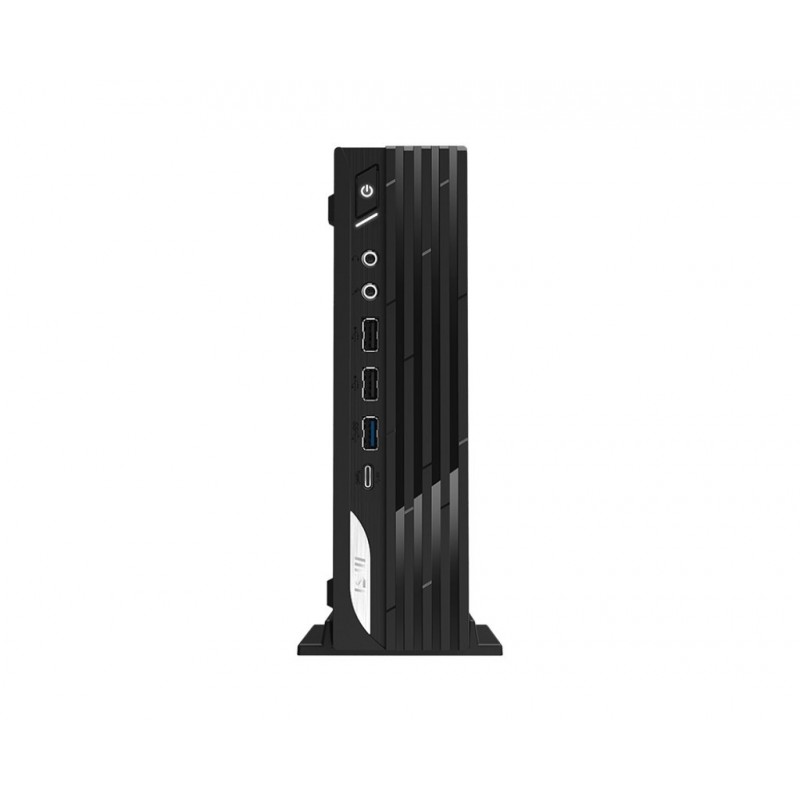

MSI PRO DP21 14M-1042EU i7-14700 16GB SSD1TB M.2 Intel UHD Graphics AX211 WiFi 6E Windows 11 Pro Black 3Y

Data sheet

Height

54.8 mm

Width

204 mm

Depth

208 mm

Weight

1.27 kg

Bluetooth

Yes

Bluetooth version

5.3

power supply

120 W

Product Type

Mini PC

SSD Capacity

1 TB

Memory slots

2x SO-DIMM

Storage temperature (T-T)

-20 - 60 °C

Operating temperature (T-T)

0 - 35 °C

Wi-Fi

Yes

Headphone outputs

1

Package weight

2.8 kg

Cables included

AC

USB 2.0 ports quantity

2

Package width

271 mm

Package depth

382 mm

Package height

122 mm

Microphone in

Yes

Line-in

Yes

Internal memory

16 GB

Processor model

i7-14700

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Processor family

Intel® Core™ i7

Operating system installed

Windows 11 Pro

Ethernet LAN (RJ-45) ports

1

Internal memory type

DDR5-SDRAM

Processor cores

20

HDMI ports quantity

1

Storage media

SSD

Processor boost frequency

5.4 GHz

Total storage capacity

1 TB

Optical drive type

No

Card reader integrated

No

Memory clock speed

5600 MHz

Memory layout (slots x size)

2 x 8 GB

Maximum internal memory

64 GB

DisplayPorts quantity

1

Operating relative humidity (H-H)

0 - 85%

Ethernet LAN

Yes

Storage relative humidity (H-H)

0 - 90%

VESA mounting

Yes

Cable lock slot

Yes

HDMI version

2.1

DisplayPort version

1.4

Product colour

Black

Performance cores

8

Processor manufacturer

Intel

Performance-core Max Turbo Frequency

5.3 GHz

Efficient cores

12

Processor cache type

Smart Cache

Processor generation

Intel® Core™ i7 (14th gen)

Maximum turbo power

219 W

Processor base power

65 W

Processor cache

33 MB

Efficient-core Max Turbo Frequency

4.2 GHz

Discrete graphics card

No

On-board graphics card

Yes

On-board graphics card model

Intel UHD Graphics 770

On-board graphics card family

Intel® UHD Graphics

Discrete graphics card model

Not available

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

SSD interface

PCI Express 3.0

SSD form factor

M.2

Total SSDs capacity

1 TB

NVMe

Yes

Number of SSDs installed

1

Processor threads

28

Motherboard chipset

Intel Q670

WLAN controller manufacturer

Intel

WLAN controller model

Intel Wi-Fi 6E AX211

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

On-board GPU manufacturer

Intel

Cable lock slot type

Kensington

Performance-core base frequency

2.1 GHz

Efficient-core base frequency

1.5 GHz

Warranty period

3 year(s)

Market positioning

Business

Line-out

Yes

M.2 SSD size

2280 (22 x 80 mm)

Chassis type

Desktop

Display included

No

VESA mount included

Yes
