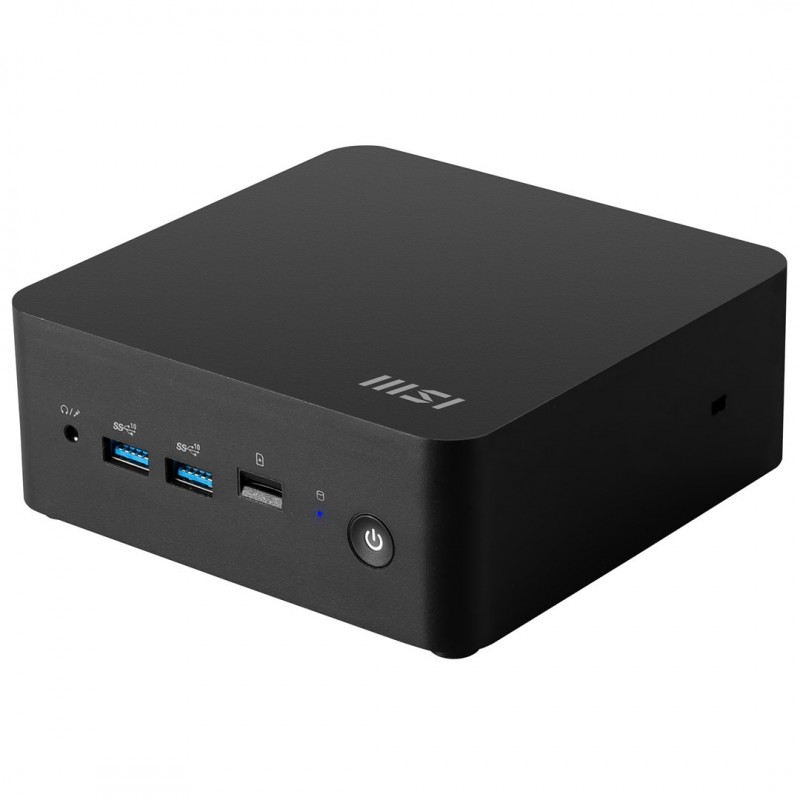

MSI Cubi NUC 13MQ-070PL i7-1365U 16GB SSD1TB Intel Iris Xe Graphics AX211 WiFi 6E Windows 11 Pro Black

Data sheet

Height

50.1 mm

Width

135.6 mm

Depth

132.5 mm

Weight

630 g

Bluetooth

Yes

Bluetooth version

5.3

power supply

120 W

Product Type

Mini PC barebone

SSD Capacity

1 TB

Memory slots

2x SO-DIMM

Power supply type

External AC adapter

Storage temperature (T-T)

-20 - 60 °C

Built-in speaker(s)

No

Operating temperature (T-T)

0 - 35 °C

Wi-Fi

Yes

Audio output channels

2.1 channels

Package weight

1.45 kg

AC adapter included

Yes

Housing material

Plastic

Package width

500 mm

Package depth

215 mm

Package height

457 mm

Internal memory

16 GB

Processor model

i7-1365U

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Processor family

Intel® Core™ i7

Operating system installed

Windows 11 Pro

Ethernet LAN (RJ-45) ports

2

Internal memory type

DDR5-SDRAM

Processor cores

10

HDMI ports quantity

2

Storage media

SSD

Processor boost frequency

5.2 GHz

Total storage capacity

1 TB

Optical drive type

No

Card reader integrated

Yes

Memory clock speed

5200 MHz

Maximum internal memory

64 GB

Operating relative humidity (H-H)

0 - 85%

Ethernet LAN

Yes

Storage relative humidity (H-H)

0 - 90%

DVI port

No

VESA mounting

Yes

Cable lock slot

Yes

HDMI version

2.1

Product colour

Black

Performance cores

2

Processor manufacturer

Intel

Performance-core Max Turbo Frequency

5.2 GHz

Efficient cores

8

Processor cache type

Smart Cache

Processor generation

13th gen Intel® Core™ i7

Maximum turbo power

55 W

Processor base power

15 W

Processor cache

12 MB

Efficient-core Max Turbo Frequency

3.9 GHz

Discrete graphics card

No

On-board graphics card

Yes

On-board graphics card model

Intel Iris Xe Graphics

On-board graphics card family

Intel Iris Xe Graphics

Discrete graphics card model

Not available

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

SSD form factor

M.2

Total SSDs capacity

1 TB

NVMe

Yes

Number of SSDs installed

1

Combo headphone/mic port

Yes

Processor threads

12

Motherboard chipset

Intel SoC

Trusted Platform Module (TPM)

Yes

WLAN controller model

Intel Wi-Fi 6E AX211

On-board GPU manufacturer

Intel

Trusted Platform Module (TPM) version

2.0

Cable lock slot type

Kensington

Audio chip

Realtek ALC256

Intel® Thunderbolt 4

Yes

Thunderbolt 4 ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

Warranty period

3 year(s)

Graphics card family

Intel

DC-in jack

Yes

Panel mounting interface

100 x 100 mm

Power cord included

Yes

Cooling type

Active

Chassis type

Mini PC

Motherboard form factor

NUC

LAN controller

Intel I226-LM
Intel I226-V

Number of M.2 (M) slots

2

Number of processors supported

1
