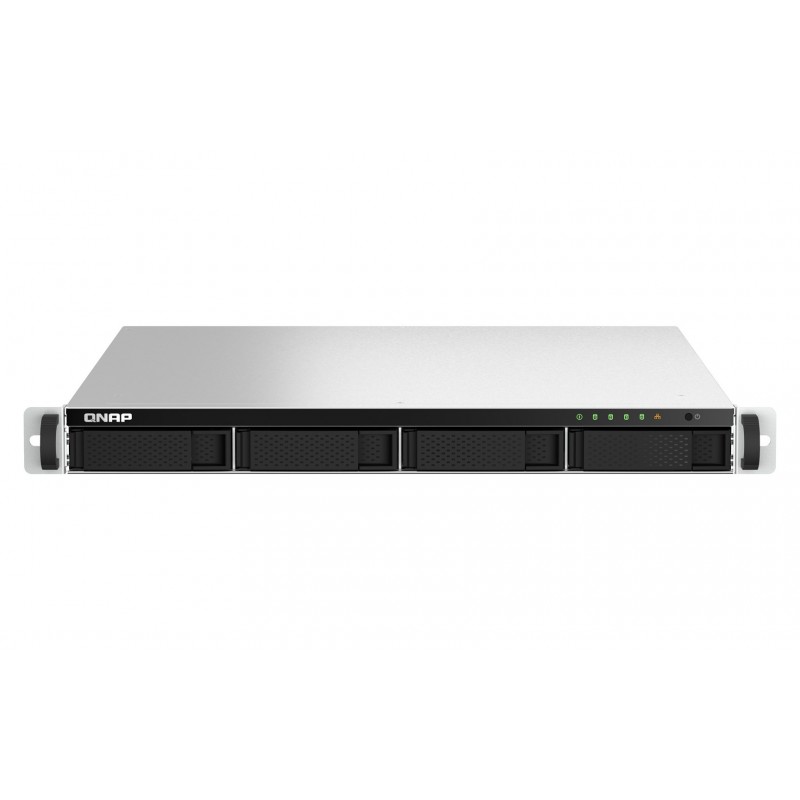

QNAP TS-464U-RP NAS Rack (1U) Intel® Celeron® N5095 8 GB QNAP Turbo System Black

Data sheet

Height

43.3 mm

Width

430 mm

Depth

479 mm

Weight

8.12 kg

Type

NAS

Storage temperature (T-T)

-20 - 70 °C

Operating temperature (T-T)

0 - 40 °C

USB port

Yes

Mac operating systems supported

Yes

Package weight

10.1 kg

Cables included

AC
LAN (RJ-45)

On/off switch

Yes

USB 2.0 ports quantity

2

Internal memory

8 GB

AC input voltage

100 - 240 V

Power consumption (typical)

51.404 W

Windows operating systems supported

Windows 7
Windows 8
Windows 10
Windows 11

Processor model

N5095

Processor family

Intel® Celeron®

Operating system version

5.0.1

Operating system installed

QNAP Turbo System

Ethernet LAN (RJ-45) ports

2

Processor cores

4

HDMI ports quantity

1

Processor boost frequency

2.9 GHz

Flash memory

4000 MB

Operating relative humidity (H-H)

5 - 95%

LED indicators

HDD
LAN
Power
Status

Ethernet LAN data rates

10
100
1000 Mbit/s
2500 Mbit/s

Ethernet LAN

Yes

Storage relative humidity (H-H)

5 - 95%

HDMI version

1.4b

Product colour

Black

Supported file systems

FAT32
HFS+
NTFS
exFAT
ext3
ext4

Harmonized System (HS) code

84714100

Security algorithms

256-bit AES
FIPS 140-2
HTTPS
SSH

Processor manufacturer

Intel

On-board graphics card model

Intel® UHD Graphics

Processor threads

4

Enhanced Intel SpeedStep Technology

Yes

Intel 64

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

Intel VT-x with Extended Page Tables (EPT)

Yes

Intel Virtualization Technology (VT-x)

Yes

CPU configuration (max)

1

Intel Trusted Execution Technology

No

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Linux operating systems supported

Yes

Number of screws

84

S.M.A.R.T. support

Yes

RAID support

Yes

Server operating systems supported

Windows Server 2008 R2
Windows Server 2012
Windows Server 2012 R2
Windows Server 2016
Windows Server 2019

Cooling type

Active

Chassis type

Rack (1U)

Idle States

Yes

Maximum RAM supported

8 GB

Number of fans

2 fan(s)

Fan diameter

4 cm

Power supply location

Built-in

Other operating systems supported

Solaris 10

Supported storage drive interfaces

Serial ATA II, Serial ATA III

Wake-on-LAN ready

Yes

RAID levels

0
1
5
6
10
JBOD

Number of storage drives supported

4

Supported storage drive types

HDD & SSD

Buzzer

Yes

Storage drive sizes supported

2.5
3.5"

Device class

Small & Medium Business

Power cables quantity

2

Storage drives installed

No

Installed storage drive type

No

Jumbo frames support

Yes

Browser supported

Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox

Power supply unit (PSU) capacity

250 W

iSCSI support

Yes

Backup function

Yes

Reset button

Yes

Snapshot

Yes

Multilingual support

Yes

Access Control List (ACL)

Yes

Hot-swap drive bays

Yes

Redundant power supply (RPS) support

Yes

Number of power supply units

2

Backup features

Cloud
iSCSI LUN

System log

Yes

Built-in FTP server

Yes

Share folder

CIFS/SMB

Power consumption (HDD standby)

37.469 W

Hot spare

Yes

Online RAID migration

Yes

Online RAID expansion

Yes

Concurrent connections

1500

PCI Express x2 (Gen 3.x) slots

1

Dynamic DNS (DDNS)

Yes

DHCP server

Yes

Disk roaming

Yes

Fan voltage

12 V

RAID rebuild

Yes

DHCP client

Yes

Disk scan

Yes
