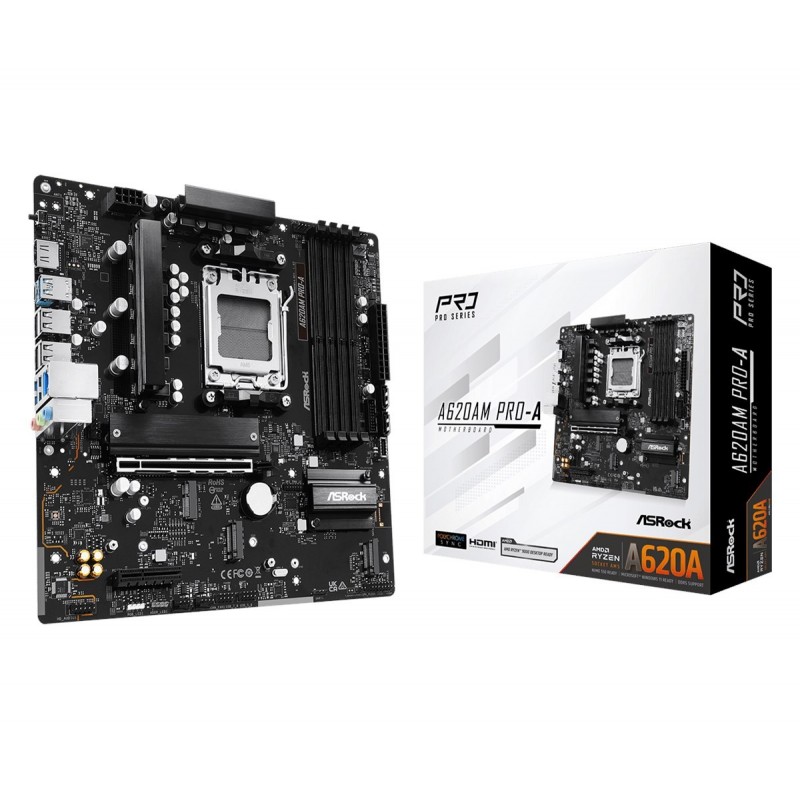

Płyta główna Asrock A620AM PRO-A

Data sheet

Width

244 mm

Depth

244 mm

Bluetooth

No

Wi-Fi

No

Audio output channels

7.1 channels

USB 2.0 ports quantity

4

Windows operating systems supported

Windows 10
Windows 11

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

Maximum internal memory

256 GB

DisplayPorts quantity

1

Ethernet LAN

Yes

Certification

FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)

Processor manufacturer

AMD

On-board graphics card

Yes

Motherboard chipset

AMD A620

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Memory channels

Dual-channel

Graphics card family

AMD

Graphics card

AMD RDNA 2

Processor socket

Socket AM5

RGB LED pin header

Yes

Ethernet interface type

Gigabit Ethernet

RAID support

Yes

Number of SATA III connectors

2

Memory slots type

DIMM

Motherboard form factor

Micro ATX

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 9000 Series
AMD Ryzen™ 8000 Series

Supported memory types

DDR5 UDIMM

Motherboard chipset family

AMD

Number of memory slots

4

USB 2.0 connectors

2

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Supported storage drive interfaces

M.2, SATA

LAN controller

Dragon RTL8125BG

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

TPM connector

Yes

BIOS type

UEFI AMI

RAID levels

0
1
10

Supported storage drive types

HDD & SSD

Number of M.2 (M) slots

3

Number of HDDs supported

2

PCI Express x16 (Gen 4.x) slots

1

Power fan connector

Yes

Number of M.2 (E) slots

1

PCI Express x4 (Gen 3.x) slots

1

Warnings

Avoid contact with liquids to prevent electronic damage.
Dispose of in accordance with local regulations for electronic waste.
Do not disassemble to avoid damage to internal components and loss of warranty.
