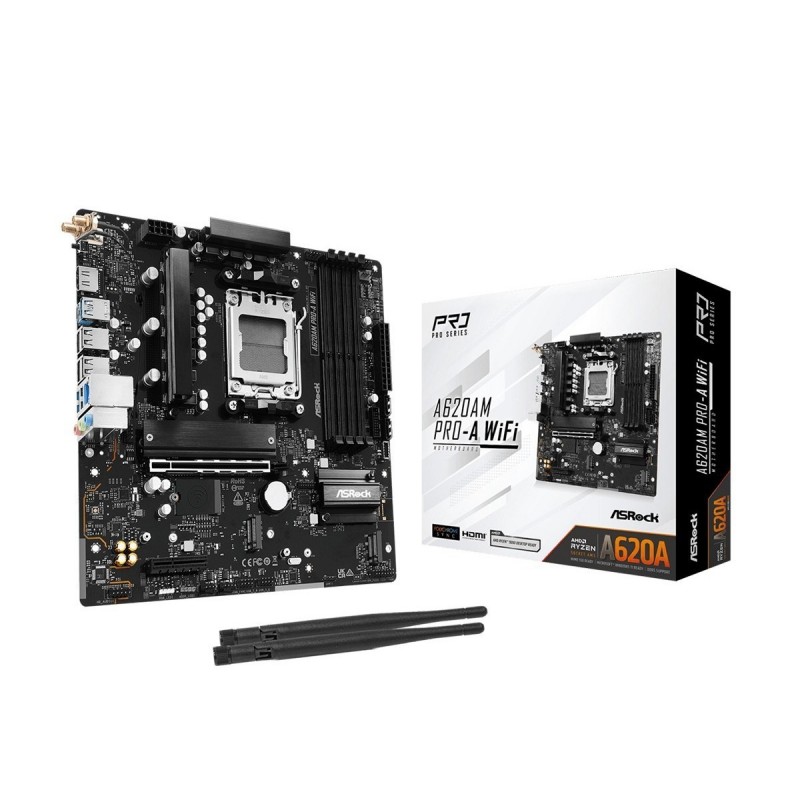

Płyta główna ASROCK A620AM PRO-A WIFI

Data sheet

Width

244 mm

Depth

244 mm

Bluetooth

Yes

Bluetooth version

5.2

Wi-Fi

Yes

Audio output channels

7.1 channels

Cables included

SATA

USB 2.0 ports quantity

4

Windows operating systems supported

Windows 10 x64
Windows 11 x64

Wi-Fi standards

802.11 ax
802.11 axe
802.11a
802.11ac
802.11b
802.11g
802.11n

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

Maximum internal memory

256 GB

Ethernet LAN

Yes

HDCP

Yes

Maximum resolution

3840 x 2160 pixels

HDMI version

2.1

Product colour

Black

Processor manufacturer

AMD

On-board graphics card

Yes

Top Wi-Fi standard

Wi-Fi 6E (802.11axe)

Antenna type

2 x 2

Motherboard chipset

AMD A620A

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Memory channels

Dual-channel

Audio chip

Realtek ALC897

High Dynamic Range (HDR) supported

Yes

Graphics card family

AMD

Graphics card

AMD RDNA 2

Compliance certificates

CE
Federal Communications Commission (FCC)

Processor socket

Socket AM5

RGB LED pin header

Yes

Ethernet interface type

2.5 Gigabit Ethernet
Fast Ethernet
Gigabit Ethernet

HDCP version

2.3

RAID support

Yes

Number of SATA III connectors

2

Memory slots type

DIMM

Motherboard form factor

Micro ATX

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Supported memory types

DDR5-SDRAM

Motherboard chipset family

AMD

Number of memory slots

4

Supported memory clock speeds

8000

USB 2.0 connectors

2

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Supported storage drive interfaces

M.2, NVMe, SATA III

Unbuffered memory

Yes

LAN controller

Dragon RTL8125BG

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

TPM connector

Yes

12V power connector

Yes

BIOS type

UEFI AMI

Intel Extreme Memory Profile (XMP)

Yes

Number of chassis fan connectors

3

RAID levels

0
1
10

Supported storage drive types

HDD & SSD

Number of M.2 (M) slots

3

Number of HDDs supported

2

PCI Express x16 (Gen 4.x) slots

1

ECC сompatibility

ECC & Non-ECC

AMD Extended Profiles for Overclocking (EXPO)

Yes

Antennas quantity

2

Number of CPU fan connectors

2

Number of water pump connectors

1

Number of RGB LED pin headers

1

BIOS flashback button

Yes
