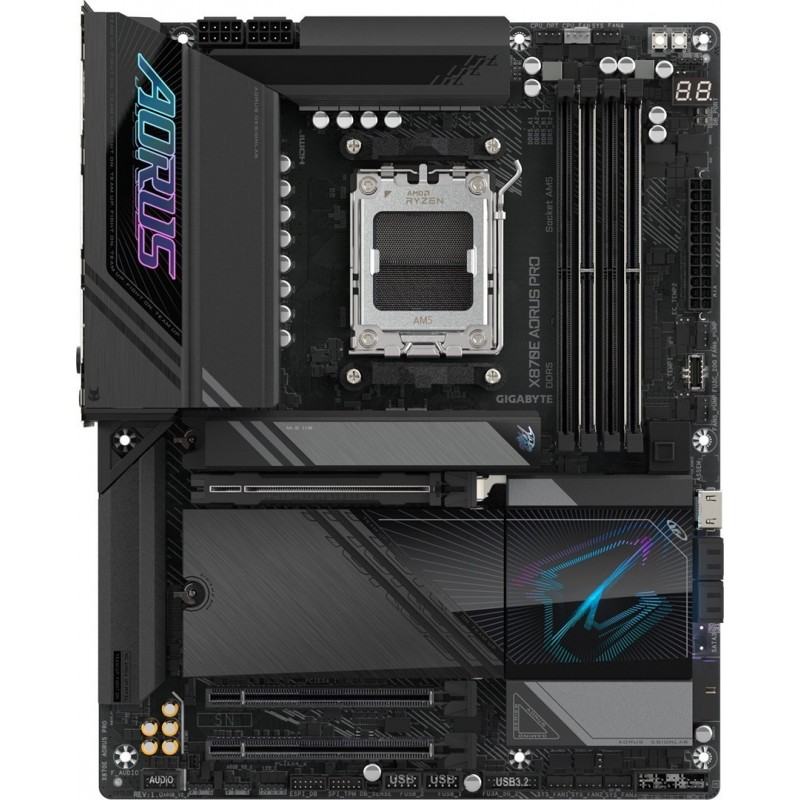

Gigabyte X870E AORUS PRO

Data sheet

Height

35 mm

Width

305 mm

Depth

244 mm

Weight

2.4 kg

Bluetooth

Yes

Bluetooth version

5.3

Battery weight

3 g

Battery type

CR2032

Wi-Fi

Yes

Audio output channels

7.1 channels

Headphone outputs

1

Package weight

2.74 kg

USB 2.0 ports quantity

2

Package width

345 mm

Package depth

294 mm

Package height

80 mm

Microphone in

Yes

Windows operating systems supported

Windows 11 x64

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Wi-Fi standards

Wi-Fi 7 (802.11be)

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

Number of battery cells

1

Maximum internal memory

256 GB

Ethernet LAN

Yes

Country of origin

China

Bundled software

Norton® Internet Security (OEM version)
LAN bandwidth management software

HDMI version

2.1

DisplayPort version

1.4

Batteries included

Yes

Product colour

White

Processor manufacturer

AMD

On-board graphics card

No

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Motherboard chipset

AMD X870E

WLAN controller model

Qualcomm QCNCM865

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Memory channels

Dual-channel

Audio chip

Realtek ALC1220

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

Warranty period

3 year(s)

Processor socket

Socket AM5

RGB LED pin header

Yes

Screws included

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Products per shipping (inner) case

1 pc(s)

USB4 Gen 2x2 ports quantity

2

RAID support

Yes

S/PDIF out port

Yes

Number of SATA III connectors

4

Memory slots type

DIMM

Parallel processing technology support

Not supported

DirectX version

12.0

Motherboard form factor

ATX

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Supported memory types

DDR5-SDRAM

Motherboard chipset family

AMD

Number of memory slots

4

Supported memory clock speeds

4400
4800 MHz
5600
6000
6200
6400
6600
6800
7000
7600 MHz
7800
8000
8200

USB 2.0 connectors

2

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Clear CMOS jumper

Yes

Supported storage drive interfaces

M.2, SATA III

PC health monitoring

Fan
Temperature
Voltage

Unbuffered memory

Yes

LAN controller

Realtek RTL8125

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

TPM connector

Yes

Audio connector

Yes

BIOS type

UEFI AMI

PCI Express x16 (Gen 3.x) slots

1

Number of chassis fan connectors

6

RAID levels

0
1
10

Number of storage drives supported

2

Supported storage drive types

HDD & SSD

Number of M.2 (M) slots

4

Supported processor sockets

Socket AM5

Maximum internal memory supported by processor

256 GB

Supported memory module capacities

1GB
2GB
4GB
8GB
12GB
24GB
32GB

EPS power connector (8-pin)

Yes

Lithium weight per battery

0.07 g

Number of HDDs supported

4

Supported memory clock speed (max)

8200 MHz

Desktop Management Interface (DMI) version

2.7

PCI Express x16 (Gen 4.x) slots

1

Clear CMOS button

Yes

PCI Express x16 (Gen 5.x) slots

1

WiFi-AP antenna jack

2

Antenna included

Yes

USB 3.2 Gen 2x2 connectors

1

PCI Express x4 slots

2

ECC сompatibility

Non-ECC

Maximum internal memory per slot

64 GB

Number of CPU fan connectors

1

Number of water pump connectors

2

Number of EPS power connectors (8-pin)

1

Number of RGB LED pin headers

4

3rd M.2 largest key size

22110

1st M.2 largest key size

25110

3rd M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

5.0

1st M.2 highest PCI Express generation

5.0

4th M.2 largest key size

22110

4th M.2 highest PCI Express generation

4.0
