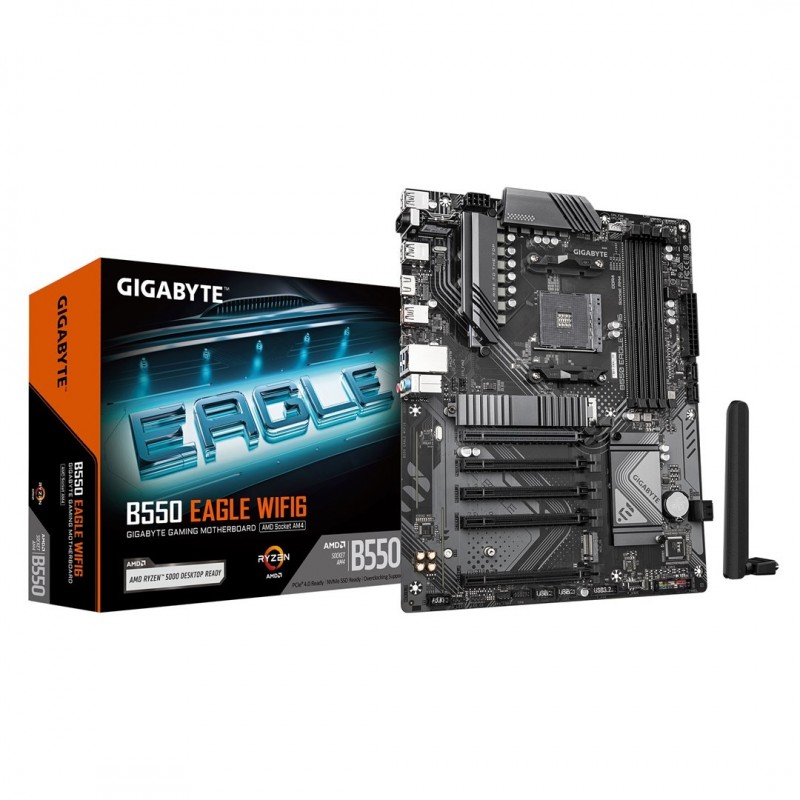

Płyta główna Gigabyte B550 EAGLE WIFI6

Data sheet

Height

35 mm

Width

305 mm

Depth

244 mm

Weight

1.25 kg

Bluetooth

Yes

Bluetooth version

5.3

Battery weight

3 g

Battery type

CR2032

Wi-Fi

Yes

Audio output channels

7.1 channels

Power source type

ATX

Headphone outputs

1

Package weight

1.48 kg

USB 2.0 ports quantity

4

Package width

335 mm

Package depth

270 mm

Package height

80 mm

Microphone in

Yes

Line-in

Yes

Windows operating systems supported

Windows 10 x64
Windows 11 x64

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

Number of battery cells

1

Maximum internal memory

128 GB

Ethernet LAN

Yes

HDCP

Yes

Maximum resolution

4096 x 2160 pixels

Bundled software

Norton® Internet Security (OEM version)
LAN bandwidth management software

HDMI version

2.1

Batteries included

Yes

Product colour

Dark brown

Processor manufacturer

AMD

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Motherboard chipset

AMD B550

WLAN controller model

Realtek RTL8851BE

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Memory channels

Dual-channel

Audio chip

Realtek ALC897

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

Warranty period

3 year(s)

Processor socket

Socket AM4

RGB LED pin header

Yes

Screws included

Yes

Ethernet interface type

Gigabit Ethernet

Products per shipping (inner) case

1 pc(s)

RAID support

Yes

Cooling type

Passive

Number of SATA III connectors

4

Memory slots type

DIMM

Parallel processing technology support

Not supported

DirectX version

12.0

Motherboard form factor

ATX

Compatible processor series

AMD Ryzen 3000 Series
AMD Ryzen 4000 Series
AMD Ryzen 5000 Series

Supported memory types

DDR4-SDRAM

Motherboard chipset family

AMD

Number of memory slots

4

Supported memory clock speeds

2133
2400
2667
2933
3200 MHz

Front panel connector

Yes

USB 2.0 connectors

2

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Clear CMOS jumper

Yes

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

PC health monitoring

Fan
Temperature
Voltage
Water cooling

Unbuffered memory

Yes

LAN controller

Realtek RTL8111H

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

TPM connector

Yes

BIOS type

UEFI AMI

Number of chassis fan connectors

3

RAID levels

0
1
10

Number of storage drives supported

6

Supported storage drive types

HDD & SSD

PCI Express x1 (Gen 3.x) slots

4

Number of M.2 (M) slots

2

Supported processor sockets

Socket AM4

EPS power connector (8-pin)

Yes

Lithium weight per battery

0.07 g

Number of HDDs supported

4

Supported memory clock speed (max)

3200 MHz

Desktop Management Interface (DMI) version

2.7

PCI Express x16 (Gen 4.x) slots

1

WiFi-AP antenna jack

2

Antenna included

Yes

ECC сompatibility

ECC & Non-ECC

Maximum internal memory per slot

32 GB

Number of CPU fan connectors

2

Number of water pump connectors

1

Number of EPS power connectors (8-pin)

1

Number of RGB LED pin headers

5

1st M.2 largest key size

22110

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

3.0

1st M.2 highest PCI Express generation

4.0
