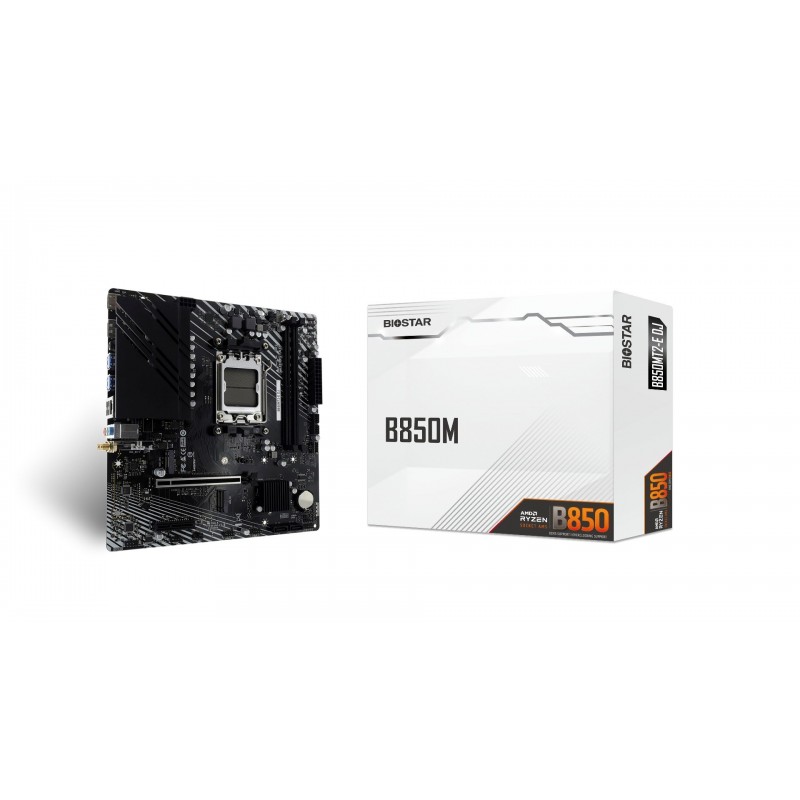

Płyta główna Biostar B850MT2-E DJ

Data sheet

Width

235 mm

Depth

244 mm

Audio output channels

7.1 channels

Cables included

SATA

USB 2.0 ports quantity

2

Windows operating systems supported

Windows 10 x64
Windows 11 x64

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

Maximum internal memory

128 GB

DisplayPorts quantity

1

Ethernet LAN

Yes

HDCP

Yes

HDMI version

2.1

DisplayPort version

1.2

Processor manufacturer

AMD

Motherboard chipset

AMD B850

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Memory channels

Dual-channel

Audio chip

Realtek ALC897

Processor socket

Socket AM5

Ethernet interface type

2.5 Gigabit Ethernet

RAID support

Yes

Number of SATA III connectors

2

Memory slots type

DIMM

DirectX version

12.0

Number of audio jack connectors

3

Motherboard form factor

Micro ATX

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Supported memory types

DDR5-SDRAM

Motherboard chipset family

AMD

Number of memory slots

2

Supported memory clock speeds

8000

Front panel connector

Yes

USB 2.0 connectors

2

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Clear CMOS jumper

Yes

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

LAN controller

Realtek RTL8125D

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

TPM connector

Yes

12V power connector

Yes

Audio connector

Yes

Number of COM connectors

1

RAID levels

0
1
10

Supported storage drive types

HDD & SSD

Number of M.2 (M) slots

2

Supported processor sockets

Socket AM5

PCI Express x16 (Gen 4.x) slots

1

PCI Express x4 (Gen 4.x) slots

1

LED connector

Y

Number of Wi-Fi antenna ports

2

ECC сompatibility

Non-ECC

1st M.2 largest key size

2280

2nd M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

1st M.2 highest PCI Express generation

4.0

Number of USB 3.2 Gen 2 Type-C ports

1

Wi-Fi antenna

Yes
