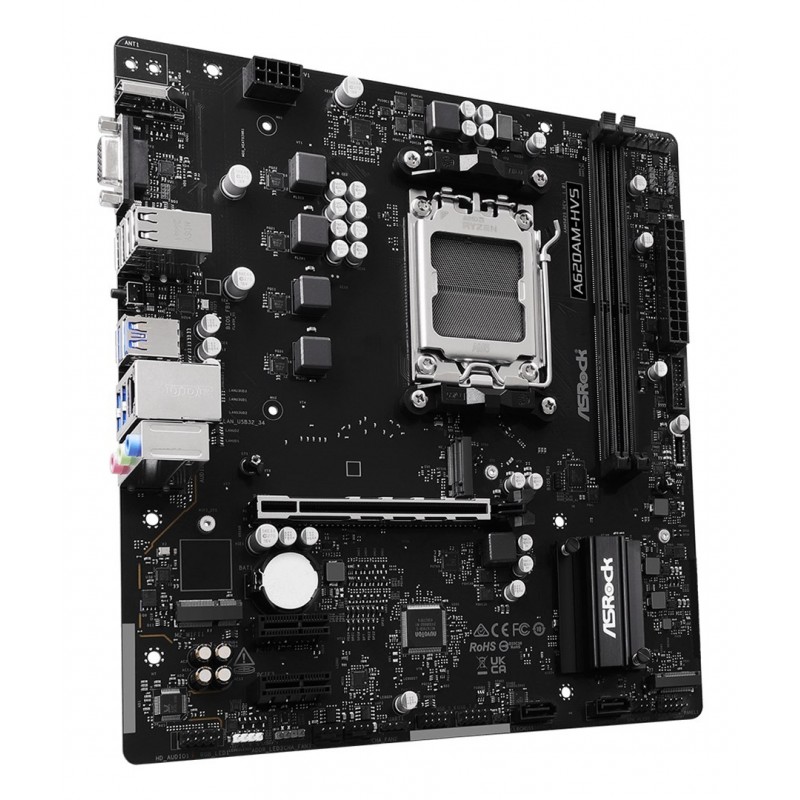

Płyta główna Asrock A620AM-HVS

Data sheet

Width

244 mm

Depth

229 mm

Wi-Fi

No

Audio output channels

7.1 channels

Headphone outputs

3

Cables included

SATA

USB 2.0 ports quantity

4

Microphone in

Yes

Line-in

Yes

Windows operating systems supported

Windows 10 x64
Windows 11 x64

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

VGA (D-Sub) ports quantity

1

Maximum internal memory

128 GB

Ethernet LAN

Yes

HDCP

Yes

Maximum resolution

3840 x 2160 pixels

HDMI version

2.1

Product colour

Black

Processor manufacturer

AMD

Motherboard chipset

AMD A620A

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Memory channels

Dual-channel

Audio chip

Realtek ALC897

High Dynamic Range (HDR) supported

Yes

Compliance certificates

CE
Federal Communications Commission (FCC)

Processor socket

Socket AM5

USB connector type

USB Type-A

RGB LED pin header

Yes

Screws included

Yes

Ethernet interface type

Fast Ethernet
Gigabit Ethernet

HDCP version

2.3

RAID support

Yes

Number of SATA III connectors

2

Memory slots type

DIMM

Parallel processing technology support

Not supported

Motherboard form factor

Micro ATX

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Supported memory types

DDR5-SDRAM

Motherboard chipset family

AMD

Number of memory slots

2

USB 2.0 connectors

2

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Supported storage drive interfaces

PCI Express 3.0, PCI Express 4.0, SATA III

Unbuffered memory

Yes

LAN controller

Realtek RTL8111H

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

12V power connector

Yes

BIOS type

UEFI AMI

Number of chassis fan connectors

3

RAID levels

0
1
10

Number of storage drives supported

4

Supported storage drive types

HDD & SSD

PCI Express x1 (Gen 3.x) slots

2

Number of M.2 (M) slots

1

Supported processor sockets

Socket AM5

Supported memory clock speed (max)

6800 MHz

PCI Express x16 (Gen 4.x) slots

1

ECC сompatibility

Non-ECC

Number of CPU fan connectors

1

Number of RGB LED pin headers

1

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

4.0
