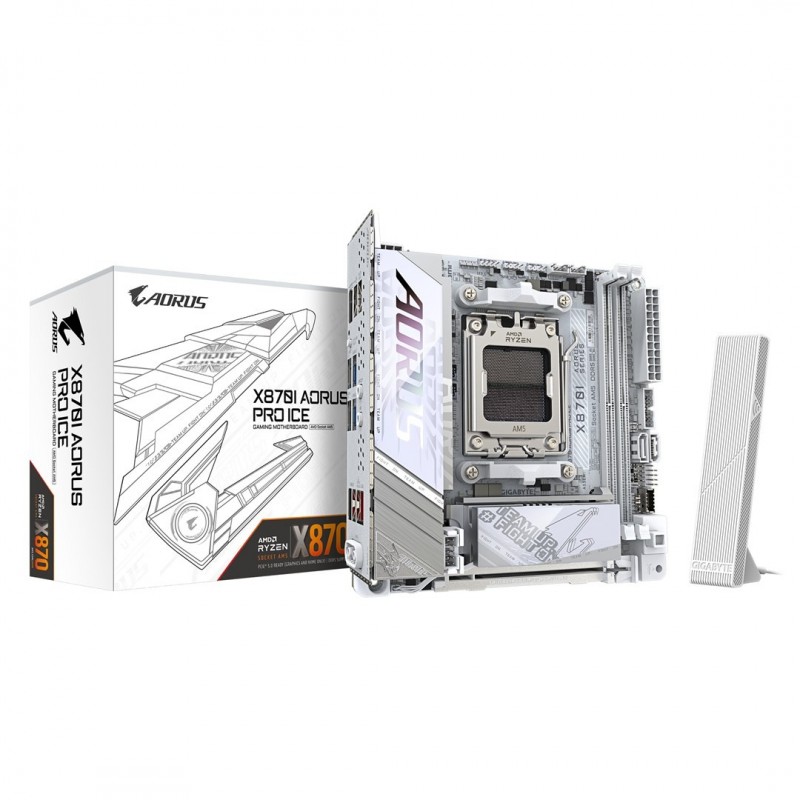

Płyta główna Gigabyte X870I AORUS PRO ICE

Data sheet

Height

35 mm

Width

170 mm

Depth

170 mm

Weight

1.2 kg

Bluetooth

Yes

Bluetooth version

5.4

Battery weight

3 g

Battery type

CR2032

Wi-Fi

Yes

Audio output channels

7.1 channels

Power source type

ATX

Headphone outputs

1

Package weight

1.28 kg

USB 2.0 ports quantity

2

Package width

235 mm

Package depth

227 mm

Package height

95 mm

Line-in

Yes

Windows operating systems supported

Windows 11 x64

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)
Wi-Fi 6E (802.11ax)
Wi-Fi 7 (802.11be)

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

Number of battery cells

1

Maximum internal memory

128 GB

Ethernet LAN

Yes

Country of origin

Taiwan

HDCP

Yes

Maximum resolution

4096 x 2160 pixels

Bundled software

Norton® Internet Security (OEM version)
LAN bandwidth management software

HDMI version

2.1

DisplayPort version

1.4

Batteries included

Yes

Product colour

White

Processor manufacturer

AMD

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Motherboard chipset

AMD X870

WLAN controller model

Realtek RTL8922AE

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC4080

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

Warranty period

3 year(s)

Processor socket

Socket AM5

RGB LED pin header

Yes

Screws included

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Products per shipping (inner) case

1 pc(s)

USB4 Gen 2x2 ports quantity

1

RAID support

Yes

Number of SATA III connectors

2

Memory slots type

DIMM

Parallel processing technology support

Not supported

DirectX version

12.0

Motherboard form factor

Micro ITX

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Supported memory types

DDR5-SDRAM

Motherboard chipset family

AMD

Number of memory slots

2

Supported memory clock speeds

4400
4800
5200
5600
5800
6000
6200
6400
6600
6800
7000
7200
7400
7600
7800
7900
7950
8000
8200
8266
8400

Front panel connector

Yes

USB 2.0 connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Clear CMOS jumper

Yes

Supported storage drive interfaces

M.2, SATA III

PC health monitoring

Fan
Temperature
Voltage
Water cooling

Unbuffered memory

Yes

LAN controller

Realtek RTL8125

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Chassis intrusion connector

Yes

BIOS type

UEFI AMI

Number of chassis fan connectors

1

RAID levels

0
1

Number of storage drives supported

4

Supported storage drive types

HDD & SSD

Number of M.2 (M) slots

2

Supported processor sockets

Socket AM5

EPS power connector (8-pin)

Yes

Lithium weight per battery

0.07 g

Number of HDDs supported

2

Supported memory clock speed (max)

8400 MHz

Desktop Management Interface (DMI) version

2.7

PCI Express x16 (Gen 5.x) slots

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

WiFi-AP antenna jack

2

Antenna included

Yes

ECC сompatibility

Non-ECC

Maximum internal memory per slot

64 GB

Number of CPU fan connectors

2

Number of water pump connectors

1

Number of EPS power connectors (8-pin)

1

Number of RGB LED pin headers

3

1st M.2 largest key size

2280

2nd M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

1st M.2 highest PCI Express generation

5.0
