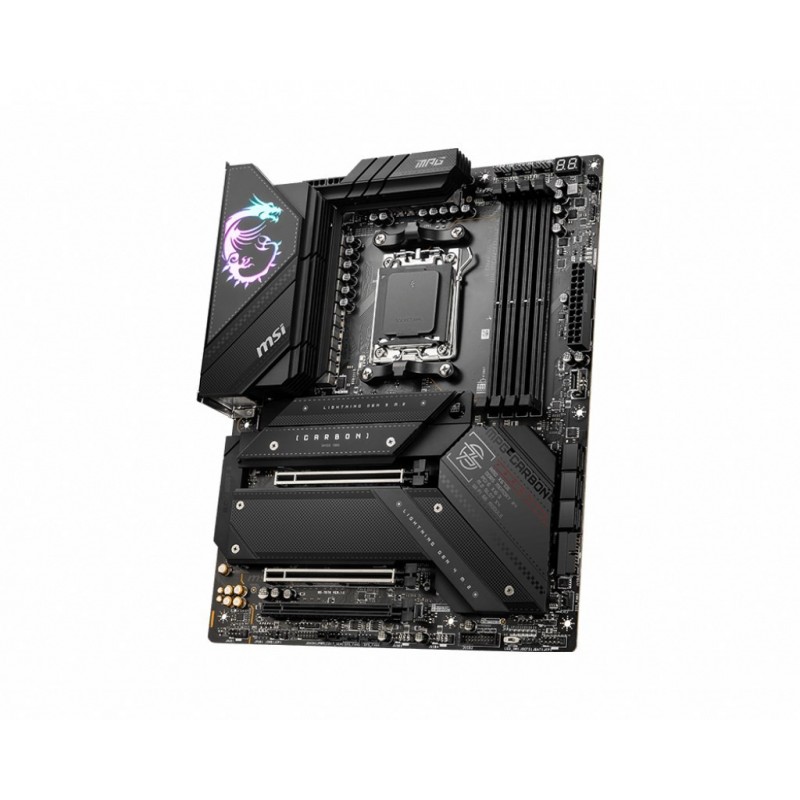

MSI MPG X670E CARBON WIFI motherboard AMD X670 Socket AM5 ATX

Data sheet

Width

304.8 mm

Depth

243.8 mm

Bluetooth

Yes

Bluetooth version

5.2

Wi-Fi

Yes

Audio output channels

7.1 channels

Cables included

SATA

USB 2.0 ports quantity

6

Drivers included

Yes

Windows operating systems supported

Windows 10 Home x64
Windows 11 x64

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)
Wi-Fi 6E (802.11ax)

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

Maximum internal memory

128 GB

DisplayPorts quantity

1

Ethernet LAN

Yes

HDMI version

2.1

DisplayPort version

1.4

Product colour

Black

Processor manufacturer

AMD

On-board graphics card

No

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Motherboard chipset

AMD X670

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2

Memory channels

Dual-channel

Audio chip

Realtek ALC4080

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

6

Processor socket

Socket AM5

USB 3.2 Gen 2x2 Type-C ports quantity

1

RGB LED pin header

Yes

Ethernet interface type

2.5 Gigabit Ethernet

S/PDIF out port

Yes

Number of SATA III connectors

6

Memory slots type

DIMM

Motherboard form factor

ATX

Compatible processor series

AMD Ryzen™ 7

Supported memory types

DDR5-SDRAM

Maximum number of SMP processors

1

Motherboard chipset family

AMD

Number of memory slots

4

Front panel connector

Yes

USB 2.0 connectors

4

CPU fan connector

Yes

Supported storage drive interfaces

M.2, SATA II

LAN controller

Realtek RTL8125-BG

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

Chassis intrusion connector

Yes

Audio connector

Yes

RAID levels

0
1
10

Supported storage drive types

HDD & SSD

PCI Express x16 slots

3

USB 3.2 Gen 2 (3.1 Gen 2) connectors

4

ECC сompatibility

Non-ECC
