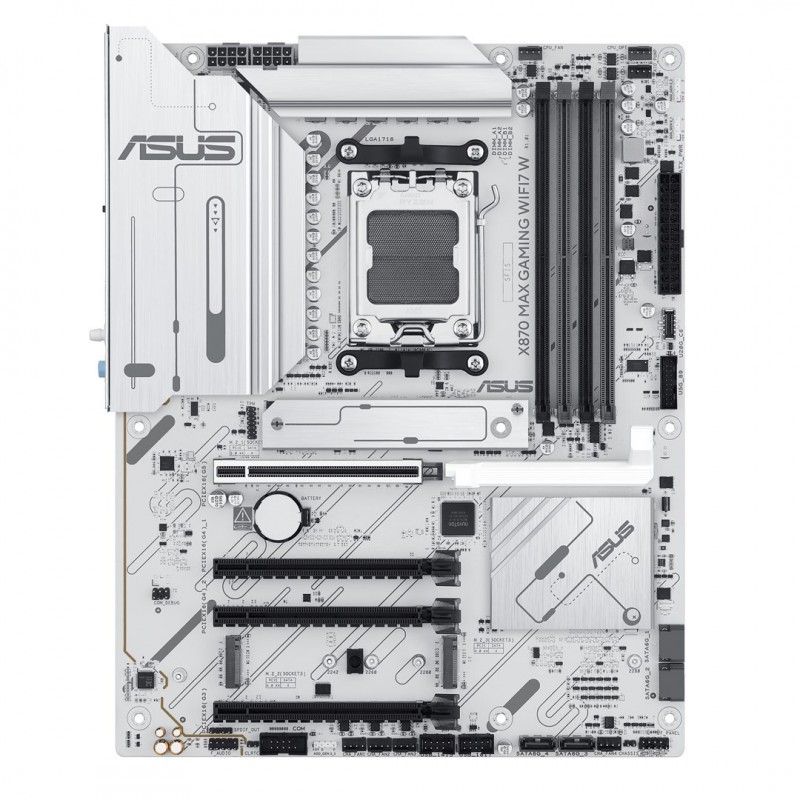

ASUS X870 MAX GAMING WIFI7 W AMD X870 Socket AM5 ATX

Data sheet

Width

305 mm

Depth

244 mm

Bluetooth

Yes

Bluetooth version

5.4

Wi-Fi

Yes

Audio output channels

7.1 channels

Headphone outputs

3

Cables included

SATA

USB 2.0 ports quantity

4

Microphone in

Yes

Windows operating systems supported

Windows 11

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

Maximum internal memory

256 GB

Ethernet LAN

Yes

Maximum resolution

3840 x 2160 pixels

HDMI version

2.1

Product colour

White

Processor manufacturer

AMD

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Motherboard chipset

AMD X870

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB4 Gen 3x2 ports quantity

2

Memory channels

Dual-channel

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

Processor socket

Socket AM5

USB connector type

USB Type-A
USB Type-C

RGB LED pin header

Yes

Screws included

Yes

Ethernet interface type

2.5 Gigabit Ethernet

RAID support

Yes

Number of SATA III connectors

4

Memory slots type

DIMM

Parallel processing technology support

Not supported

Motherboard form factor

ATX

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Supported memory types

DDR5-SDRAM

Motherboard chipset family

AMD

Number of memory slots

4

USB 2.0 connectors

2

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Clear CMOS jumper

Yes

Supported storage drive interfaces

PCI Express 4.0, PCI Express 5.0, SATA III

Unbuffered memory

Yes

Wake-on-LAN ready

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Chassis intrusion connector

Yes

TPM connector

Yes

12V power connector

Yes

BIOS type

UEFI AMI

PCI Express x16 (Gen 3.x) slots

1

Number of chassis fan connectors

4

Number of COM connectors

1

RAID levels

0
1
5
10

Number of storage drives supported

7

Supported storage drive types

HDD & SSD

Number of M.2 (M) slots

3

Supported processor sockets

Socket AM5

EPS power connector (8-pin)

Yes

S/PDIF out connector

Yes

Supported memory clock speed (max)

8000 MHz

PCI Express x16 (Gen 4.x) slots

2

PCI Express x16 (Gen 5.x) slots

1

WiFi-AP antenna jack

2

Antenna included

Yes

USB 3.2 Gen 2x2 connectors

1

ECC сompatibility

ECC & Non-ECC

Number of CPU fan connectors

2

Number of water pump connectors

1

Number of EPS power connectors (8-pin)

2

Number of RGB LED pin headers

3
