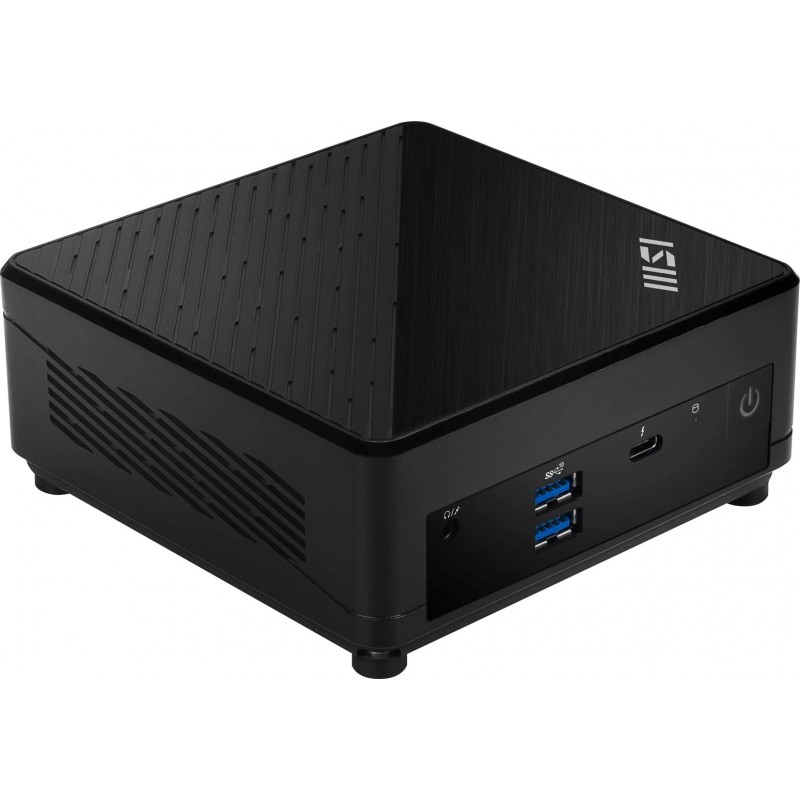

Cubi 5 12M-478EU
Data sheet
- Height
- 53.7 mm
- Width
- 124 mm
- Depth
- 124 mm
- Weight
- 550 g
- Bluetooth
- Yes
- Bluetooth version
- 5.3
- power supply
- 65 W
- Product Type
- Mini PC
- SSD Capacity
- 512 GB
- Memory slots
- 2x SO-DIMM
- Wi-Fi
- Yes
- Warranty card
- Yes
- Package weight
- 1.4 kg
- Cables included
- AC
- Internal memory
- 16 GB
- Processor model
- i7-1255U
- Wi-Fi standards
- Wi-Fi 6E (802.11ax)
- Processor family
- Intel® Core™ i7
- Processor frequency
- 3.5 GHz
- Operating system installed
- Windows 11 Pro
- Ethernet LAN (RJ-45) ports
- 2
- Internal memory type
- DDR4-SDRAM
- Processor cores
- 10
- HDMI ports quantity
- 1
- Storage media
- SSD
- Total storage capacity
- 512 GB
- Optical drive type
- No
- Memory layout (slots x size)
- 2 x 8 GB
- Maximum internal memory
- 64 GB
- DisplayPorts quantity
- 1
- Ethernet LAN
- Yes
- Volume
- 0.66 L
- Energy Star certified
- Y
- VESA mounting
- Yes
- Bundled software
- MSI Center: Hardware Monitoring, Free Up Memory, Clean Up Disk,LAN Manager, MSI Recovery, F3 Recovery, Devices Speed Up, SmartPriority, Smart Image Finder, Noise Cancellation, Live Update,Microsoft App Update, System Info, Troubleshooting, Contact Us, MSIForum & Channel
- Placement supported
- Horizontal/Vertical
- HDMI version
- 2.0b
- DisplayPort version
- 1.4
- Product colour
- Black
- Configurable TDP-down
- 12 W
- Performance cores
- 2
- Processor manufacturer
- Intel
- Performance-core Max Turbo Frequency
- 4.7 GHz
- Efficient cores
- 8
- Processor cache type
- Smart Cache
- Processor generation
- 12th gen Intel® Core™ i7
- Maximum turbo power
- 55 W
- Processor base power
- 15 W
- Processor cache
- 12 MB
- Efficient-core Max Turbo Frequency
- 3.5 GHz
- Discrete graphics card
- No
- On-board graphics card
- Yes
- On-board graphics card model
- Intel Iris Xe Graphics
- On-board graphics card family
- Intel Iris Xe Graphics
- Discrete graphics card model
- Not available
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- SSD interface
- PCI Express 4.0
- SSD form factor
- M.2
- Total SSDs capacity
- 512 GB
- NVMe
- Yes
- Number of SSDs installed
- 1
- Combo headphone/mic port
- Yes
- Processor threads
- 12
- Motherboard chipset
- Intel SoC
- On-board GPU manufacturer
- Intel
- Intel® Thunderbolt 4
- Yes
- Thunderbolt 4 ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 4
- Compliance certificates
- CB
CE
Federal Communications Commission (FCC)
RCM
UL
VCCI
cUL
- Market positioning
- Business
- Screws included
- Yes
- Chassis type
- Mini PC
- Number of processors installed
- 1
