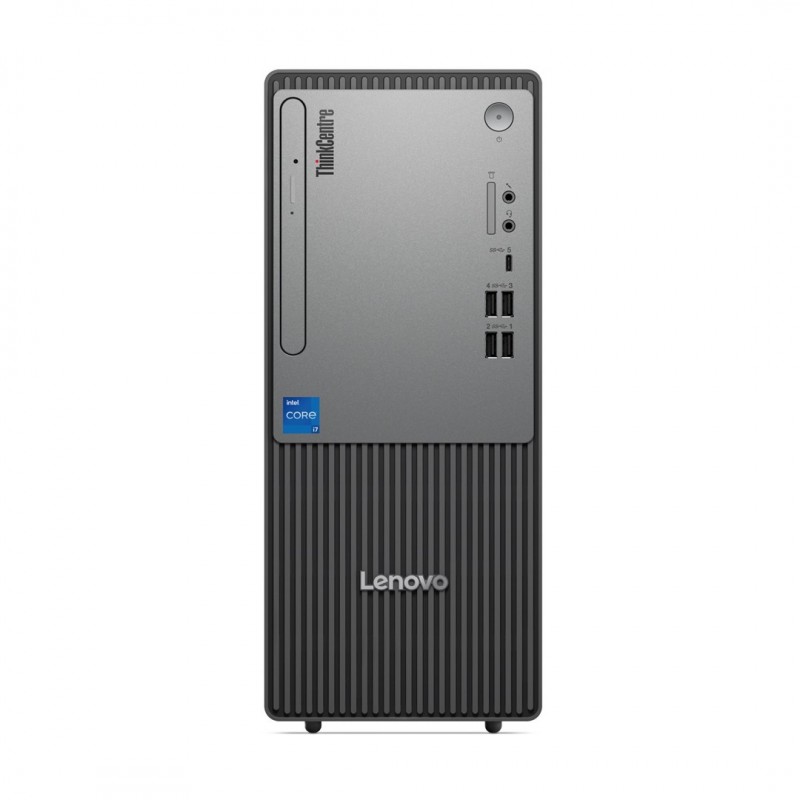

Lenovo ThinkCentre Neo 50t G5 TWR i3-14100 8GB DDR5 SSD512 UHD 730 W11Pro Black 3Y OnSite

Data sheet

Height

340 mm

Width

145 mm

Depth

294 mm

Weight

5.6 kg

Bluetooth

No

power supply

180 W

Product Type

PC

SSD Capacity

512 GB

Memory slots

2x DIMM

Storage temperature (T-T)

-40 - 60 °C

Built-in speaker(s)

Yes

Operating temperature (T-T)

5 - 35 °C

Operating altitude

0 - 3048 m

Wi-Fi

No

Number of speakers

1

Package weight

7 kg

USB 2.0 ports quantity

4

Package width

240 mm

Package depth

395 mm

Package height

530 mm

Microphone in

Yes

Internal memory

8 GB

Compatible memory cards

SD
SDHC
SDXC

Processor model

i3-14100

Processor family

Intel® Core™ i3

Operating system installed

Windows 11 Pro

Ethernet LAN (RJ-45) ports

1

Internal memory type

DDR5-SDRAM

Processor cores

4

HDMI ports quantity

1

Storage media

SSD

Processor boost frequency

4.7 GHz

Total storage capacity

512 GB

Optical drive type

No

Card reader integrated

Yes

Operating system architecture

64-bit

Memory clock speed

4800 MHz

Memory layout (slots x size)

1 x 8 GB

VGA (D-Sub) ports quantity

1

Maximum internal memory

64 GB

DisplayPorts quantity

1

Operating relative humidity (H-H)

20 - 80%

Audio system

High Definition Audio

Ethernet LAN

Yes

Volume

13.6 L

Storage relative humidity (H-H)

10 - 90%

Non-operating altitude

0 - 12192 m

Cable lock slot

Yes

Placement supported

Vertical

Certification

TÜV Rheinland Ultra Low Noise

HDMI version

2.1

DisplayPort version

1.4a

Product colour

Black

Sustainability certificates

ENERGY STAR
EPEAT Silver
TCO

Performance cores

4

Processor manufacturer

Intel

Performance-core Max Turbo Frequency

4.7 GHz

Processor cache type

Smart Cache

Processor generation

Intel® Core™ i3 (14th gen)

Maximum turbo power

110 W

Processor base power

60 W

Processor cache

12 MB

Discrete graphics card

No

On-board graphics card

Yes

On-board graphics card model

Intel UHD Graphics 730

On-board graphics card family

Intel® UHD Graphics

Discrete graphics card model

Not available

SSD interface

PCI Express 4.0

SSD form factor

M.2

Total SSDs capacity

512 GB

NVMe

Yes

Number of SSDs installed

1

Combo headphone/mic port

Yes

Processor threads

8

Motherboard chipset

Intel B760

Non-ECC

Yes

Colour name

Luna Grey (Front Bezel), Raven Black (Chassis)

Trusted Platform Module (TPM)

Yes

Password protection

Yes

Keyboard included

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

On-board GPU manufacturer

Intel

Trusted Platform Module (TPM) version

2.0

Cable lock slot type

Kensington

Memory channels

Dual-channel

Audio chip

Realtek ALC623-CG

Performance-core base frequency

3.5 GHz

Mouse included

Yes

Compliance certificates

REACH
RoHS
WEEE

Password protection type

HDD
Power on
Supervisor

Line-out

Yes

Power supply input frequency

50/60 Hz

Keyboard connectivity

Wired

Number of storage drives installed

1

Chassis type

Tower

Mouse connectivity

Wired

Display included

No

Power supply input voltage

100 - 240 V

Number of processors installed

1

Warnings

The product contains electrical components which may be hazardous if used incorrectly.
Warning: When in use, do not cover the computer's vents to avoid overheating.
