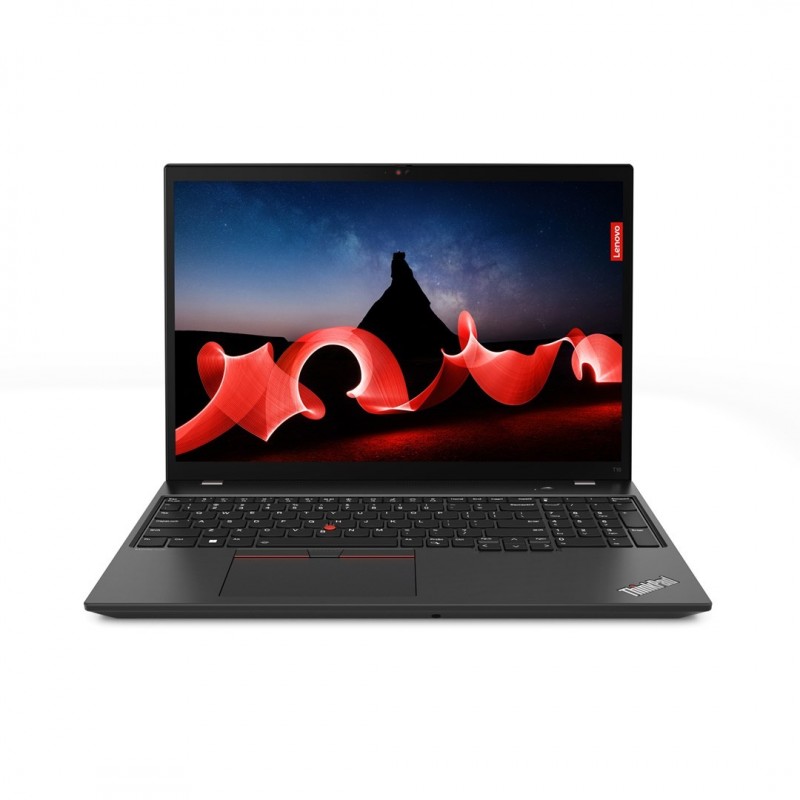

Lenovo ThinkPad T16 Gen 2 (AMD) AMD Ryzen™ 5 PRO 7540U Laptop 40.6 cm (16") WUXGA 16 GB LPDDR5x-SDRAM 512 GB SSD Wi-Fi

Data sheet

Height

20.5 mm

Width

361.9 mm

Depth

255.5 mm

Weight

1.71 kg

battery capacity

52.5 Wh

Bluetooth

Yes

Bluetooth version

5.3

form factor

Clamshell

fingerprint reader

Yes

Product Type

Laptop

touchscreen

No

SSD Capacity

512 GB

Smart Card Reader

Yes

Panel type

IPS

Storage temperature (T-T)

5 - 43 °C

Built-in microphone

Yes

Operating temperature (T-T)

5 - 35 °C

Housing material

Carbon fibre, Polyphenylene sulfide (PPS)

Internal memory

16 GB

Near Field Communication (NFC)

No

Display diagonal

40.6 cm (16")

Battery technology

Lithium Polymer (LiPo)

Processor model

7540U

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Processor family

AMD Ryzen™ 5 PRO

Processor frequency

3.2 GHz

Front camera resolution (numeric)

5 MP

Operating system installed

Windows 11 Pro

Front camera

Yes

Ethernet LAN (RJ-45) ports

1

Internal memory type

LPDDR5x-SDRAM

Processor cores

6

HD type

WUXGA

Keyboard language

English

HDMI ports quantity

1

Storage media

SSD

Processor boost frequency

4.9 GHz

Total storage capacity

512 GB

Keyboard backlit

Yes

Optical drive type

No

LED backlight

Yes

Card reader integrated

No

Operating system architecture

64-bit

WWAN

Upgradable

Memory clock speed

6400 MHz

Maximum internal memory

16 GB

Operating relative humidity (H-H)

8 - 95%

Ethernet LAN data rates

10
100
1000 Mbit/s

Audio system

Dolby Audio

Ethernet LAN

Yes

Storage relative humidity (H-H)

5 - 95%

Display brightness

300 cd/m²

Contrast ratio (typical)

800:1

Native aspect ratio

16:10

Cable lock slot

Yes

Certification

ErP Lot 6/26
TCO Certified 9.0
RoHS compliant
MIL-STD-810H
Eyesafe® Certified 2.0

HDMI version

2.1

Product colour

Black

Sustainability certificates

ENERGY STAR
EPEAT Gold
TCO

Processor manufacturer

AMD

Processor cache type

L3

Processor generation

AMD Ryzen PRO 7000 Series

Processor cache

16 MB

Discrete graphics card

No

On-board graphics card

Yes

On-board graphics card model

AMD Radeon 740M

On-board graphics card family

AMD Radeon

Discrete graphics card model

Not available

Memory form factor

On-board

AC adapter power

65 W

AC adapter frequency

50/60 Hz

AC adapter input voltage

100 - 240 V

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Mobile network connection

No

Antenna type

2x2

Anti-glare screen

Yes

RGB colour space

NTSC

Colour gamut

45%

Display resolution

1920 x 1200 pixels

Speaker power

2 W

Number of built-in speakers

2

SSD interface

PCI Express 4.0

SSD form factor

M.2

Total SSDs capacity

512 GB

NVMe

Yes

Number of SSDs installed

1

Combo headphone/mic port

Yes

Fast charging

Yes

Pointing device

ThinkPad UltraNav

Numeric keypad

Yes

Processor threads

12

Motherboard chipset

AMD SoC

Colour name

Thunder black

Trusted Platform Module (TPM)

Yes

Password protection

Yes

WLAN controller manufacturer

MediaTek

WLAN controller model

MediaTek RZ616

Number of microphones

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

On-board GPU manufacturer

AMD

USB Type-C DisplayPort Alternate Mode

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Infrared (IR) camera

Yes

Spill-resistant keyboard

Yes

Trusted Platform Module (TPM) version

2.0

Cable lock slot type

Kensington

Maximum shipping altitude

3048 m

USB4 Gen 3x2 ports quantity

1

Memory channels

Dual-channel

Windows Hello

Yes

Operating system language

English
Polish

Audio chip

Realtek ALC3287

USB Sleep-and-Charge ports

1

USB Sleep-and-Charge

Yes

Compliance certificates

RoHS

Password protection type

Power on
SSD
Supervisor

Privacy camera

Yes

Privacy type

Privacy shutter

USB Power Delivery (USB PD)

Yes
