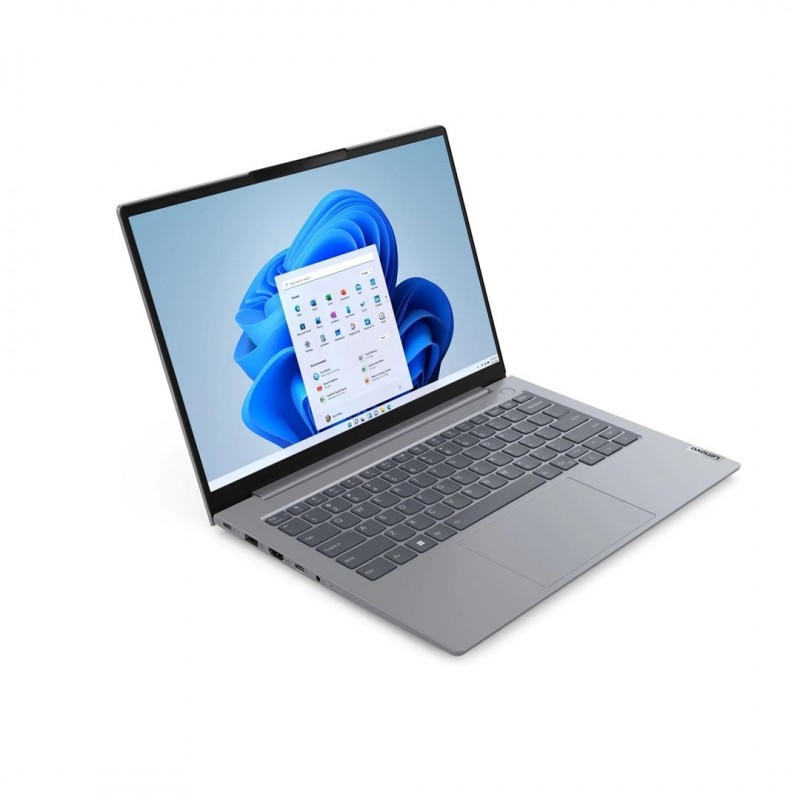

Lenovo TB 14 G7 Ultra 5 125U 14" 16GB 512GB WUXGA W11P

Data sheet

Height

16.9 mm

Width

313.5 mm

Depth

224 mm

Weight

1.38 kg

battery capacity

45 Wh

Bluetooth

Yes

Bluetooth version

5.1

fingerprint reader

Yes

Product Type

Laptop

touchscreen

No

SSD Capacity

512 GB

Panel type

IPS

Built-in microphone

Yes

Housing material

Aluminium

Internal memory

16 GB

Display diagonal

35.6 cm (14")

Processor model

125U

Processor family

Intel Core Ultra 5

Operating system installed

Windows 11 Pro

Front camera

Yes

Ethernet LAN (RJ-45) ports

1

Internal memory type

DDR5

Processor cores

12

HDMI ports quantity

1

Storage media

SSD

Processor boost frequency

4.3 GHz

Total storage capacity

512 GB

Keyboard backlit

Yes

Memory clock speed

5600 MHz

Maximum refresh rate

60 Hz

Maximum internal memory

64 GB

Ethernet LAN data rates

100
1000 Mbit/s

Audio system

Dolby Audio

Ethernet LAN

Yes

Energy Star certified

ENERGY STAR

Display brightness

300 cd/m²

Cable lock slot

Yes

Certification

EPEAT Gold Registered ErP Lot 6 ErP Lot 26 TCO Certified 9.0 TÜV Rheinland Low Blue Light (Software Solution) MIL-STD-810H

HDMI version

2.1

Product colour

Grey

Performance cores

2

Processor manufacturer

Intel

Efficient cores

8

Processor cache type

Smart Cache

Processor generation

Intel® Core™ Ultra (Series 1)

Maximum turbo power

57 W

Processor base power

15 W

Processor cache

12 MB

On-board graphics card model

Intel Graphics

On-board graphics card family

Intel Graphics

Memory form factor

SO-DIMM

AC adapter power

65 W

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Antenna type

2x2

Display resolution

1920 x 1080 pixels

Speaker power

2 W

Number of built-in speakers

2

SSD interface

PCI Express 4.0

SSD form factor

M.2

Total SSDs capacity

512 GB

NVMe

Yes

Number of SSDs installed

1

Combo headphone/mic port

Yes

Front camera resolution

1920 x 1080 pixels

Front camera HD type

Full HD

Pointing device

Touchpad

Numeric keypad

No

Processor threads

14

Motherboard chipset

Intel SoC

Colour name

Arctic Grey

Trusted Platform Module (TPM)

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

On-board GPU manufacturer

Intel

USB Type-C DisplayPort Alternate Mode

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Trusted Platform Module (TPM) version

2.0

Cable lock slot type

Nano

Memory channels

Dual-channel

Audio chip

Realtek ALC3287

Compliance certificates

RoHS

SD memory card reader

Yes

NTSC coverage (typical)

45%

USB Power Delivery (USB PD)

Yes

Number of Thunderbolt 4 USB-C ports

1
