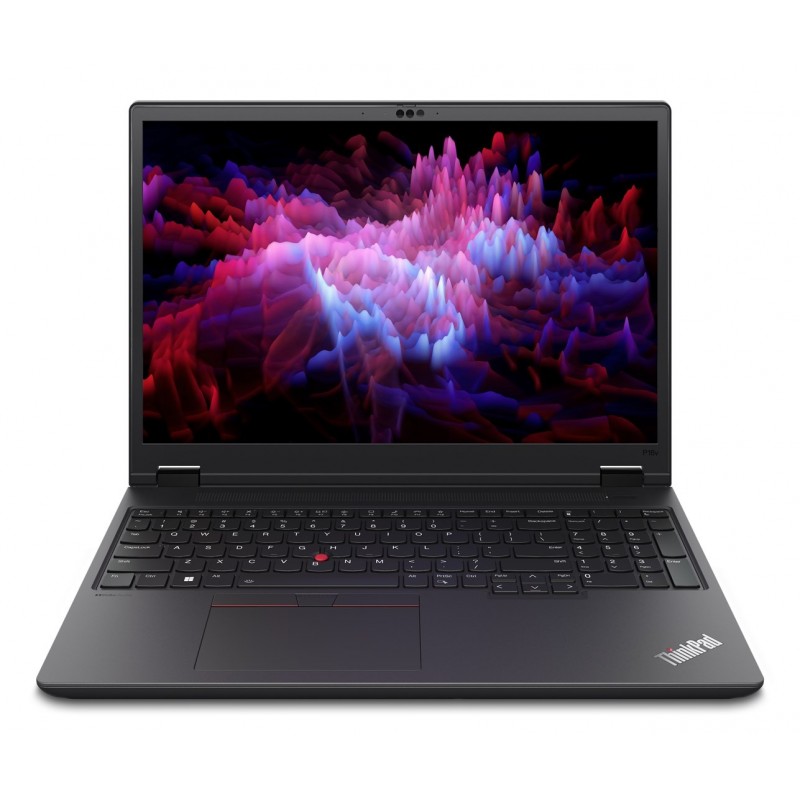

Lenovo ThinkPad P16v Gen 2 (Intel) Intel Core Ultra 7 165H Mobile workstation 40.6 cm (16") WUXGA 32 GB DDR5-SDRAM 1 TB

Data sheet

Height

24.7 mm

Width

365 mm

Depth

262 mm

Weight

2.22 kg

battery capacity

90 Wh

Bluetooth

Yes

Bluetooth version

5.3

fingerprint reader

Yes

Product Type

Mobile workstation

touchscreen

No

SSD Capacity

1 TB

Smart Card Reader

No

Memory slots

2x SO-DIMM

Panel type

IPS

Storage temperature (T-T)

5 - 43 °C

Built-in microphone

Yes

Operating temperature (T-T)

5 - 35 °C

AC adapter included

Yes

Housing material

Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)

Internal memory

32 GB

Near Field Communication (NFC)

No

Display diagonal

40.6 cm (16")

Battery technology

Lithium Polymer (LiPo)

Compatible memory cards

SD

Processor model

165H

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Processor family

Intel Core Ultra 7

Front camera resolution (numeric)

5 MP

Operating system installed

Windows 11 Pro

Front camera

Yes

Ethernet LAN (RJ-45) ports

1

Internal memory type

DDR5-SDRAM

Processor cores

16

HD type

WUXGA

HDMI ports quantity

1

Storage media

SSD

Processor boost frequency

5 GHz

Total storage capacity

1 TB

Keyboard backlit

Yes

Optical drive type

No

LED backlight

Yes

Card reader integrated

Yes

Operating system architecture

64-bit

WWAN

Not installed

Discrete graphics memory type

GDDR6

Memory clock speed

5600 MHz

Memory layout (slots x size)

2 x 16 GB

Maximum refresh rate

60 Hz

Maximum internal memory

96 GB

Operating relative humidity (H-H)

8 - 95%

Ethernet LAN data rates

100
1000 Mbit/s

Audio system

Dolby Audio Premium

Ethernet LAN

Yes

Storage relative humidity (H-H)

5 - 95%

Display brightness

400 cd/m²

Contrast ratio (typical)

1200:1

Native aspect ratio

16:10

Cable lock slot

Yes

Bundled software

Intel Connectivity Performance Suite

Certification

MIL-STD-810H

HDMI version

2.1

Product colour

Black

Performance cores

6

Processor manufacturer

Intel

Performance-core Max Turbo Frequency

5 GHz

Efficient cores

8

Processor cache type

Smart Cache

Processor generation

Intel® Core™ Ultra (Series 1)

Maximum turbo power

115 W

Processor base power

28 W

Processor cache

24 MB

Efficient-core Max Turbo Frequency

3.8 GHz

Discrete graphics card

Yes

On-board graphics card

Yes

On-board graphics card model

Intel Arc Graphics

On-board graphics card family

Intel Arc Graphics

Discrete graphics card model

NVIDIA RTX 2000 Ada

Memory form factor

SO-DIMM

AC adapter power

170 W

AC adapter frequency

50/60 Hz

AC adapter input voltage

100 - 240 V

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Mobile network connection

No

Antenna type

2x2

Anti-glare screen

Yes

RGB colour space

sRGB

Colour gamut

100%

Display resolution

1920 x 1200 pixels

Speaker power

2 W

Number of built-in speakers

2

SSD interface

PCI Express 4.0

SSD form factor

M.2

Total SSDs capacity

1 TB

NVMe

Yes

Number of SSDs installed

1

Combo headphone/mic port

Yes

Fast charging

Yes

Pointing device

ThinkPad UltraNav

Numeric keypad

Yes

Processor threads

22

Motherboard chipset

Intel SoC

Non-ECC

Yes

Colour name

Black

Trusted Platform Module (TPM)

Yes

Password protection

Yes

WLAN controller manufacturer

Intel

WLAN controller model

Intel Wi-Fi 6E AX211

Number of microphones

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

Sustainability compliance

Yes

On-board GPU manufacturer

Intel

USB Type-C DisplayPort Alternate Mode

Yes

Infrared (IR) camera

Yes

Spill-resistant keyboard

Yes

Trusted Platform Module (TPM) version

2.0

Cable lock slot type

Kensington

Maximum shipping altitude

3048 m

Memory channels

Dual-channel

Windows Hello

Yes

Operating system language

German

Audio chip

Realtek ALC3287

USB Sleep-and-Charge ports

1

USB Sleep-and-Charge

Yes

Intel® Thunderbolt 4

Yes

Thunderbolt 4 ports quantity

2

Discrete graphics card memory

8 GB

Discrete GPU manufacturer

NVIDIA

Performance-core base frequency

1.4 GHz

Efficient-core base frequency

0.9 GHz

Low Power Efficient-cores

2

Low Power Efficient-core Max Turbo Frequency

2.5 GHz

Low Power Efficient-core Base Frequency

700 MHz

Neural processor unit (NPU)

Intel AI Boost

Windows Studio effects support

Yes

AI software frameworks supported by NPU

DirectML
ONNX RT
OpenVINO
Windows ML

Maximum frequency NPU

1.4 GHz

AI datatype support on NPU

FP16
FP32
Int8

Sparsity support

Yes

Compliance certificates

RoHS

M.2 SSD size

2280 (22 x 80 mm)

USB Power Delivery (USB PD)

Yes

USB Type-C charging port

Yes

PSTI certified

Yes
