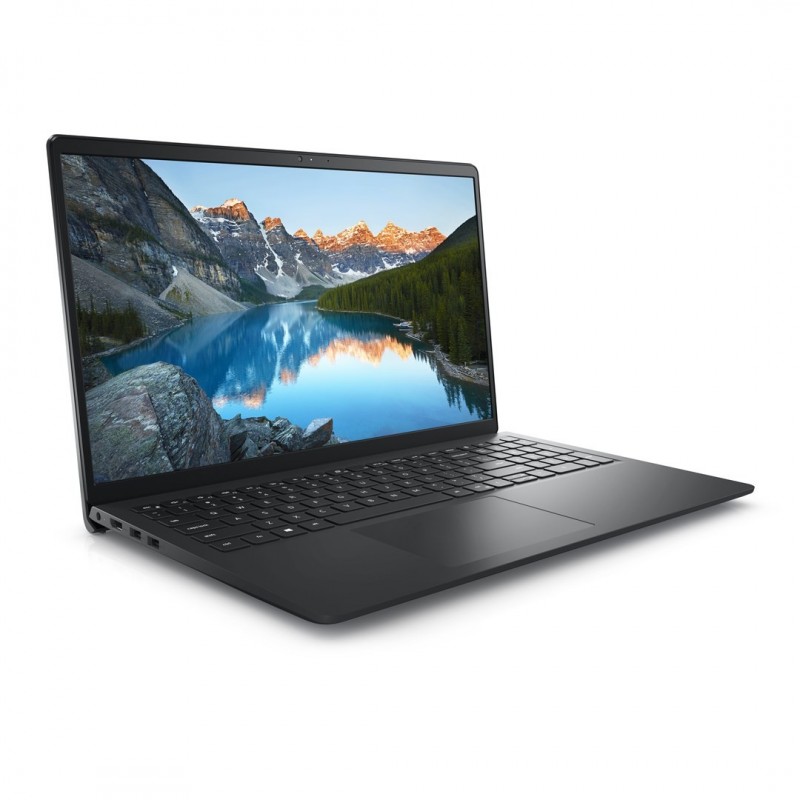

Dell 3520 i7-1255U 15.6"2K Touch 16GB DDR4 SSD1TB BT Win11 (REPACK) 2Y

Data sheet

Width

358.5 mm

Depth

235.6 mm

Weight

1.9 kg

Bluetooth

Yes

Bluetooth version

5.2

Product Type

Laptop

touchscreen

Yes

SSD Capacity

1 TB

Memory slots

2x SO-DIMM

Panel type

WVA

Battery voltage

15 V

Storage temperature (T-T)

-40 - 65 °C

Built-in microphone

Yes

Operating temperature (T-T)

0 - 35 °C

Operating altitude

-15.2 - 3048 m

Cables included

AC

USB 2.0 ports quantity

1

Internal memory

16 GB

Battery recharge time

4 h

Display diagonal

39.6 cm (15.6")

Battery technology

Lithium Polymer (LiPo)

Compatible memory cards

SD
SDHC
SDXC

Processor model

i7-1255U

Wi-Fi standards

Wi-Fi 6 (802.11ax)

Processor family

Intel® Core™ i7

Operating system installed

Windows 11 Home

Front camera

Yes

Internal memory type

DDR4-SDRAM

Processor cores

10

HD type

Full HD

HDMI ports quantity

1

Storage media

SSD

Processor boost frequency

4.7 GHz

Total storage capacity

1 TB

Optical drive type

No

LED backlight

Yes

Card reader integrated

Yes

Operating system architecture

64-bit

WWAN

Not installed

Memory layout (slots x size)

2 x 8 GB

Number of battery cells

4

Maximum internal memory

16 GB

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

0 - 95%

Non-operating altitude

-15.2 - 10668 m

Display brightness

250 cd/m²

Native aspect ratio

16:9

HDMI version

1.4

Product colour

Black

Operating shock

110 G

Configurable TDP-down

12 W

Processor manufacturer

Intel

Processor generation

12th gen Intel® Core™ i7

Processor cache

12 MB

Discrete graphics card

No

On-board graphics card

Yes

On-board graphics card model

Intel Iris Xe Graphics

Discrete graphics card model

Not available

Memory form factor

SO-DIMM

AC adapter power

65 W

AC adapter frequency

50 - 60 Hz

AC adapter output current

3.34 A

AC adapter input voltage

100 - 240 V

AC adapter output voltage

19.5 V

Operating vibration

0.66 G

Non-operating shock

160 G

Non-operating vibration

1.3 G

Height (rear)

1.9 cm

Height (front)

1.7 cm

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Mobile network connection

No

Antenna type

2x2

Anti-glare screen

Yes

Display resolution

1920 x 1080 pixels

Speaker power

2 W

Number of built-in speakers

2

SSD interface

PCI Express

SSD form factor

M.2

Total SSDs capacity

1 TB

NVMe

Yes

Number of SSDs installed

1

Combo headphone/mic port

Yes

Power adapter barrel connector

4.5 mm

Front camera resolution

1280 x 720 pixels

Front camera HD type

HD

Video capturing speed

30 fps

Battery charge indicator

Yes

Fast charging

Yes

Pointing device

Touchpad

Numeric keypad

Yes

WLAN controller manufacturer

Intel

WLAN controller model

Intel Wi-Fi 6 AX201

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Backlight keypad

No

DC-in jack

Yes

Hazard pictogram(s)

GHS07: Harmful
GHS08: Health hazard
GHS09: Environmental hazard

Warnings

Do not dispose of your old device in the normal household waste - take it to an electronic waste collection point.
Do not expose to intense heat or open flame for prolonged periods.
Keep out of the reach of children.
