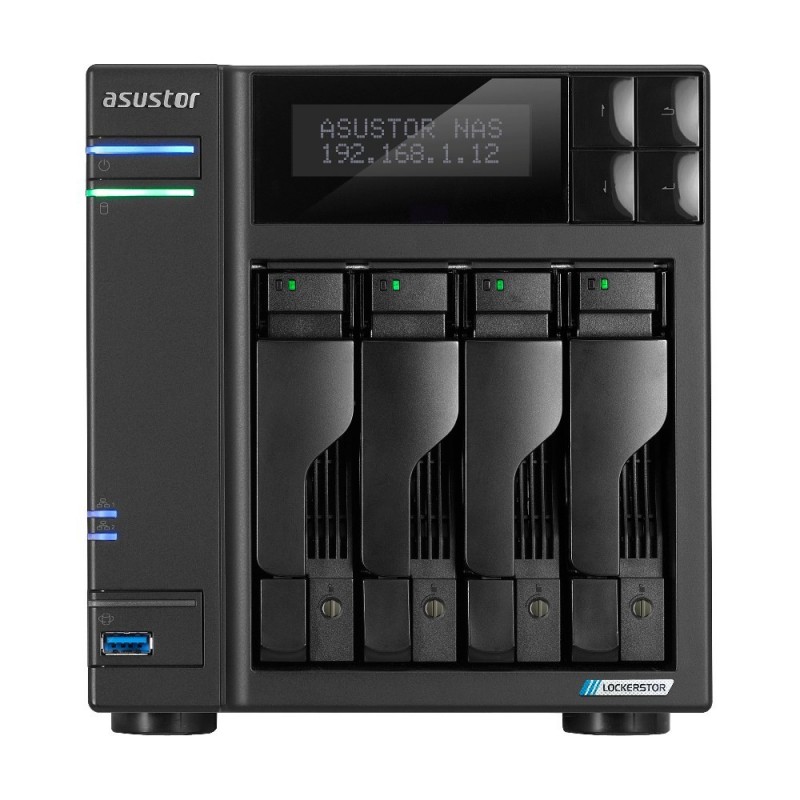

Asustor LOCKERSTOR 4 Gen2 (AS6704T) NAS Desktop Intel® Celeron® N N5105 4 GB DDR4 0 TB ADM Black

Data sheet

Height

185.5 mm

Width

170 mm

Depth

230 mm

Weight

2.94 kg

Type

NAS

display type

LCD

Memory slots

2

Operating temperature (T-T)

0 - 40 °C

USB port

Yes

Mac operating systems supported

Mac OS X 10.7 Lion
Mac OS X 10.8 Mountain Lion
Mac OS X 10.9 Mavericks
Mac OS X 11.0 Big Sur
Mac OS X 12.0 Monterey

Internal memory

4 GB

AC input voltage

100 - 240 V

Power consumption (typical)

35 W

Windows operating systems supported

Yes

Built-in display

Yes

Processor model

N5105

Processor family

Intel® Celeron® N

Processor frequency

2 GHz

Operating system version

4.1 Onwards

Operating system installed

ADM

Ethernet LAN (RJ-45) ports

2

Internal memory type

DDR4

Processor cores

4

HDMI ports quantity

1

Flash memory

8000 MB

Memory clock speed

2933 MHz

Storage drive capacity

0 GB

Operating relative humidity (H-H)

5 - 95%

LED indicators

Yes

Ethernet LAN data rates

100
1000 Mbit/s
2500 Mbit/s

Ethernet LAN

Yes

HDMI version

2.0b

Number of users

4096 user(s)

Product colour

Black

Supported file systems

BTRFS
FAT32
HFS+
NTFS
exFAT
ext3
ext4

Harmonized System (HS) code

84714100

Processor manufacturer

Intel

Processor cache

4 MB

On-board graphics card model

Intel® UHD Graphics

Memory form factor

SO-DIMM

Enhanced Intel SpeedStep Technology

Yes

Intel 64

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

Intel VT-x with Extended Page Tables (EPT)

Yes

Intel Virtualization Technology (VT-x)

Yes

CPU configuration (max)

1

Intel Trusted Execution Technology

No

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Linux operating systems supported

Yes

S.M.A.R.T. support

Yes

RAID support

Yes

Power consumption (sleep)

0.88 W

Server operating systems supported

Windows Server 2003
Windows Server 2008
Windows Server 2012
Windows Server 2016
Windows Server 2019

Cooling type

Active

Chassis type

Desktop

Idle States

Yes

Noise level

17.6 dB

Maximum RAM supported

16 GB

Number of fans

1 fan(s)

Fan diameter

12 cm

Power supply location

External

Supported storage drive interfaces

M.2, Serial ATA

Wake-on-LAN ready

Yes

RAID levels

0
1
5
6
10
JBOD

Number of storage drives supported

4

Supported storage drive types

HDD & SSD

Storage drive sizes supported

2.5
3.5"
M.2

Device class

Home & Home Office

Total installed storage capacity

0 TB

Storage drives installed

No

Installed storage drive type

No

Jumbo frames support

Yes

Browser supported

Firefox, Chrome, Safari, Microsoft Edge

Web-based management

Yes

Power supply unit (PSU) capacity

90 W

iSCSI support

Yes

Backup function

Yes

Access Control List (ACL)

Yes

Backup features

Cloud

System log

Yes

Number of M.2 (M & B) slots

4

Concurrent connections

512

Dynamic DNS (DDNS)

Yes

Universal Plug and Play (UPnP)

Yes
