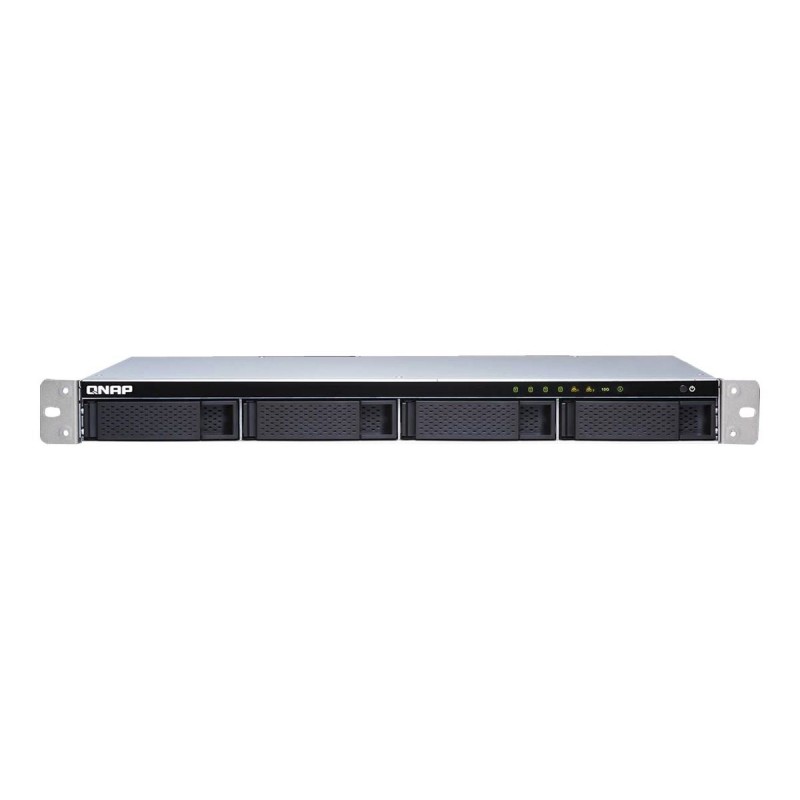

QNAP TS-431XeU NAS Rack (1U) Ethernet LAN Black, Stainless steel Alpine AL-314

Data sheet

Height

44 mm

Width

439 mm

Depth

291 mm

Weight

4.15 kg

Type

NAS

Memory slots

1

Storage temperature (T-T)

-20 - 70 °C

Operating temperature (T-T)

0 - 40 °C

USB port

Yes

Mac operating systems supported

Mac OS X 10.7 Lion
Mac OS X 10.8 Mountain Lion
Mac OS X 10.9 Mavericks
Mac OS X 10.10 Yosemite
Mac OS X 10.11 El Capitan
Mac OS X 10.12 Sierra
Mac OS X 10.13 High Sierra
Mac OS X 10.14 Mojave

Package weight

5.78 kg

Cables included

AC
LAN (RJ-45)

On/off switch

Yes

Package type

Box

Internal memory

2 GB

AC input voltage

100 - 240 V

Power consumption (typical)

30.99 W

Windows operating systems supported

Windows 7
Windows 7 Enterprise
Windows 7 Enterprise x64
Windows 7 Home Basic
Windows 7 Home Basic x64
Windows 7 Home Premium
Windows 7 Home Premium x64
Windows 7 Professional
Windows 7 Professional x64
Windows 7 Starter
Windows 7 Starter x64
Windows 7 Ultimate
Windows 7 Ultimate x64
Windows 8
Windows 8 Enterprise
Windows 8 Enterprise x64
Windows 8 Pro
Windows 8 Pro x64
Windows 8 x64
Windows 10 Education
Windows 10 Education x64
Windows 10 Enterprise
Windows 10 Enterprise x64
Windows 10 Home
Windows 10 Home x64
Windows 10 IOT Core
Windows 10 Pro
Windows 10 Pro x64

AC input frequency

50 - 60 Hz

Processor model

Alpine AL-314

Processor family

Annapurna Labs

Processor frequency

1.7 GHz

Operating system version

5.0.0

Operating system installed

QNAP QTS

Ethernet LAN (RJ-45) ports

2

Internal memory type

DDR3

Processor cores

4

Flash memory

512 MB

Memory clock speed

1600 MHz

Operating relative humidity (H-H)

5 - 95%

LED indicators

HDD
LAN
Network
Status

Ethernet LAN data rates

10
100
1000 Mbit/s

Ethernet LAN

Yes

Cable lock slot

Yes

Product colour

Black
Stainless steel

Supported file systems

FAT32
HFS+
NTFS
exFAT
ext3
ext4

Harmonized System (HS) code

84714100

Security algorithms

256-bit AES

Processor manufacturer

Annapurna Labs

Memory form factor

SO-DIMM

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Cable lock slot type

Kensington

Processor architecture

ARM Cortex-A15

Linux operating systems supported

Yes

Number of screws

28

RAID support

Yes

Server operating systems supported

Windows Server 2003
Windows Server 2008 R2
Windows Server 2012
Windows Server 2012 R2

Cooling type

Active

Chassis type

Rack (1U)

Noise level

20.3 dB

Supported network protocols

TCP/IP, IPv4, IPv6, CIFS/SMB, AFP v3.3, NFS v3, FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, SMSC

Maximum RAM supported

8 GB

Number of fans

3 fan(s)

Fan diameter

4 cm

Power supply location

Built-in

Supported storage drive interfaces

Serial ATA, Serial ATA II, Serial ATA III

Wake-on-LAN ready

Yes

RAID levels

0
1
5
6
10
50
60
JBOD

Number of storage drives supported

4

Supported storage drive types

HDD & SSD

Buzzer

Yes

Storage drive sizes supported

2.5
3.5"

Device class

Small & Medium Business

Storage drives installed

No

Installed storage drive type

No

Jumbo frames support

Yes

Fiber optic connector

SFP+

Fiber ports quantity

1

Browser supported

Apple Safari 7, Google Chrome, Microsoft Internet Explorer 10, Mozilla Firefox

Web-based management

Yes

Power supply unit (PSU) capacity

100 W

iSCSI support

Yes

Backup function

Yes

Reset button

Yes

Access Control List (ACL)

Yes

Hot-swap drive bays

Yes

Power consumption (HDD standby)

12.42 W

DHCP server

Yes

Fan voltage

12 V

DHCP client

Yes

Bad block scan

Yes

Universal Plug and Play (UPnP)

Yes
