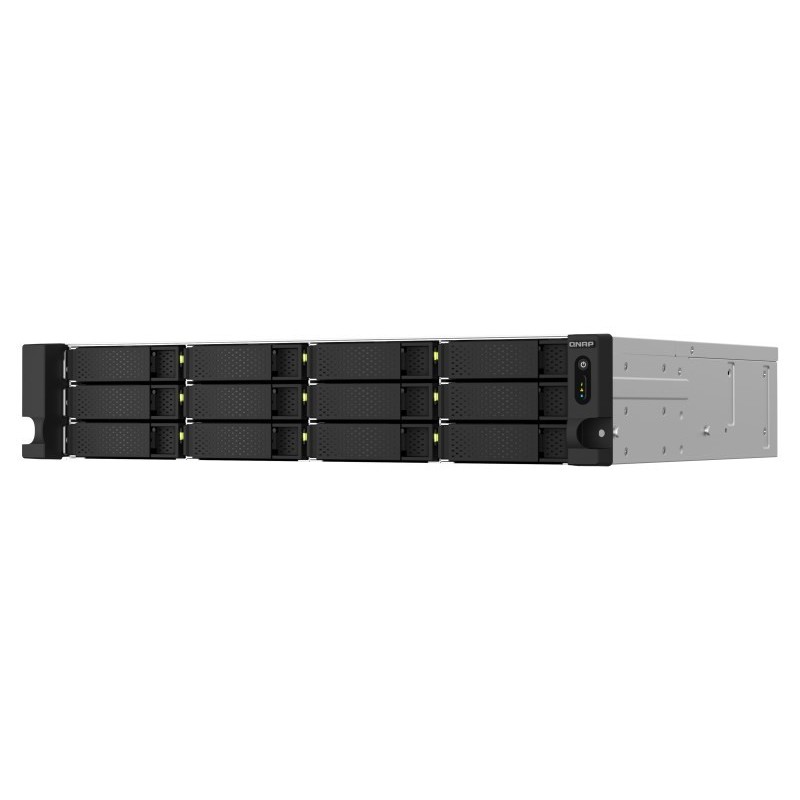

QNAP TS-1264U-RP NAS Rack (2U) Ethernet LAN Aluminium, Black

Data sheet

Height

88.7 mm

Width

482.2 mm

Depth

423.8 mm

Weight

9.43 kg

Type

NAS

Memory slots

2 x SO-DIMM DDR4

Storage temperature (T-T)

-20 - 70 °C

Operating temperature (T-T)

0 - 40 °C

USB port

Yes

Mac operating systems supported

Yes

Package weight

14.1 kg

Cables included

AC
LAN (RJ-45)

On/off switch

Yes

Internal memory

8 GB

AC input voltage

100 - 240 V

Power consumption (typical)

70.913 W

Windows operating systems supported

Windows 7
Windows 7 Enterprise
Windows 7 Enterprise x64
Windows 7 Home Basic
Windows 7 Home Basic x64
Windows 7 Home Premium
Windows 7 Home Premium x64
Windows 7 Professional
Windows 7 Professional x64
Windows 7 Starter
Windows 7 Starter x64
Windows 7 Ultimate
Windows 7 Ultimate x64
Windows 7 x64
Windows 8
Windows 8 Enterprise
Windows 8 Enterprise x64
Windows 8 Pro
Windows 8 Pro x64
Windows 8 x64
Windows 10
Windows 10 Education
Windows 10 Education x64
Windows 10 Enterprise
Windows 10 Enterprise x64
Windows 10 Home
Windows 10 Home x64
Windows 10 Pro
Windows 10 Pro x64
Windows 10 x64

AC input frequency

50 - 60 Hz

Processor family

Intel

Processor frequency

2.9 GHz

Operating system version

5.0.0

Operating system installed

QNAP QTS

Internal memory type

DDR4

Processor cores

4

HDMI ports quantity

1

Flash memory

4000 MB

Operating relative humidity (H-H)

5 - 95%

LED indicators

LAN
Power
Status

Ethernet LAN data rates

10
100
1000 Mbit/s
2500 Mbit/s

Ethernet LAN

Yes

HDMI version

1.4b

Product colour

Aluminium
Black

Supported file systems

FAT32
HFS+
NTFS
exFAT
ext3
ext4

Security algorithms

256-bit AES
FIPS 140-2
HTTPS
SNMP

Processor manufacturer

Intel

On-board graphics card model

Intel® UHD Graphics

Memory form factor

SO-DIMM

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

Linux operating systems supported

Yes

Number of screws

48

S.M.A.R.T. support

Yes

RAID support

Yes

Power consumption (sleep)

37.854 W

Server operating systems supported

Windows Server 2008 R2
Windows Server 2012
Windows Server 2012 R2
Windows Server 2016
Windows Server 2019

Cooling type

Active

Chassis type

Rack (2U)

Supported network protocols

PPTP, L2TP/IPSec, OpenVPN, QBelt

Maximum RAM supported

16 GB

Number of fans

2 fan(s)

Fan diameter

8 cm

Power supply location

Built-in

Supported storage drive interfaces

Serial ATA II, Serial ATA III

Wake-on-LAN ready

Yes

RAID levels

0
1
5
6
10
50
60
JBOD

Number of storage drives supported

12

Supported storage drive types

HDD & SSD

Buzzer

Yes

Storage drive sizes supported

2.5
3.5"

Device class

Small & Medium Business

Storage drives installed

No

Installed storage drive type

No

Jumbo frames support

Yes

Management protocols

SNMP

Browser supported

Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox

Web-based management

Yes

Power supply unit (PSU) capacity

300 W

iSCSI support

Yes

USB copy function

Yes

Backup function

Yes

Reset button

Yes

Snapshot

Yes

Multilingual support

Yes

Access Control List (ACL)

Yes

Hot-swap drive bays

Yes

Fan diameter 2

8 cm

Number of power supply units

2

Backup features

Cloud
iSCSI LUN

System log

Yes

Built-in FTP server

Yes

Share folder

CIFS/SMB

WLAN adapter supported

Yes

Link aggregation

Yes

Hot spare

Yes

Online RAID migration

Yes

Online RAID expansion

Yes

Load balancing system

Yes

Dynamic DNS (DDNS)

Yes

DHCP server

Yes

Disk roaming

Yes

Fan voltage

12 V

RAID rebuild

Yes

DHCP client

Yes

Disk scan

Yes

Bad block scan

Yes

Universal Plug and Play (UPnP)

Yes
