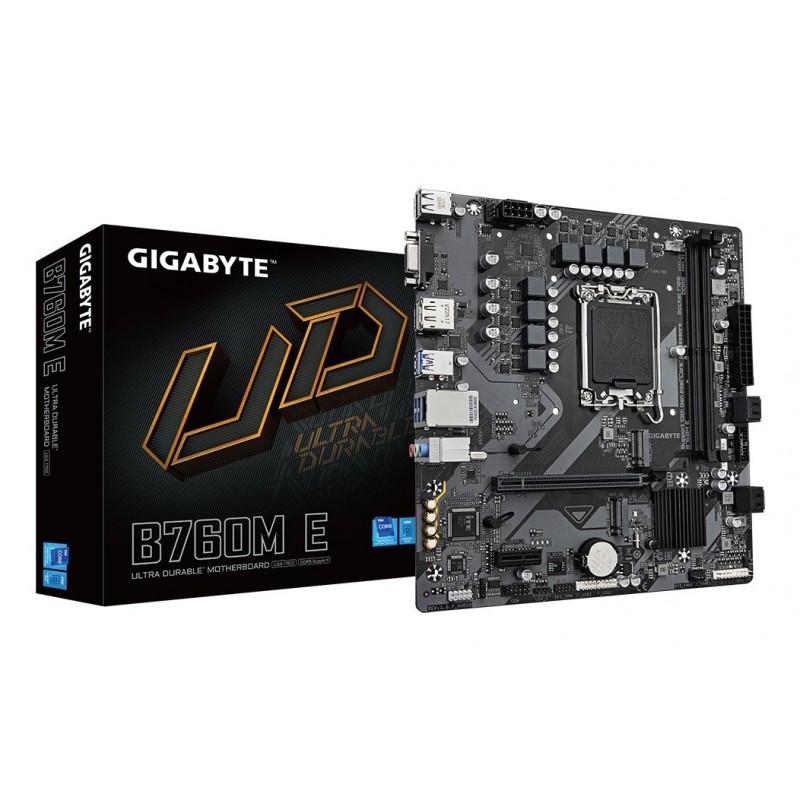

Płyta główna Gigabyte B760M E

Data sheet

Height

35 mm

Width

230 mm

Depth

215 mm

Battery weight

3 g

Battery type

CR2032

Wi-Fi

No

Audio output channels

7.1 channels

Power source type

ATX

Headphone outputs

1

Package weight

900 g

USB 2.0 ports quantity

2

Package width

265 mm

Package depth

265 mm

Package height

54 mm

Microphone in

Yes

Line-in

Yes

Windows operating systems supported

Windows 10 x64
Windows 11 x64

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

Number of battery cells

1

VGA (D-Sub) ports quantity

1

Maximum internal memory

128 GB

DisplayPorts quantity

1

Ethernet LAN

Yes

HDCP

Yes

Maximum resolution

4096 x 2160 pixels

Bundled software

Norton® Internet Security (OEM version)LAN bandwidth management software

HDMI version

2.1

DisplayPort version

1.2

Processor manufacturer

Intel

Motherboard chipset

Intel B760

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Memory channels

Dual-channel

Audio chip

Realtek ALC897

Warranty period

3 year(s)

Processor socket

LGA 1700

RGB LED pin header

Yes

Screws included

Yes

Ethernet interface type

Gigabit Ethernet

RAID support

Yes

Cooling type

Passive

Number of SATA III connectors

4

Memory slots type

DIMM

Parallel processing technology support

Not supported

Motherboard form factor

Micro ATX

Compatible processor series

Intel Core i3 12th Gen
Intel Core i3 13th Gen
Intel Core i3 14th Gen
Intel Core i5 12th Gen
Intel Core i5 13th Gen
Intel Core i5 14th Gen
Intel Core i7 12th Gen
Intel Core i7 13th Gen
Intel Core i7 14th Gen
Intel Core i9 12th Gen
Intel Core i9 13th Gen
Intel Core i9 14th Gen
Intel® Celeron®
Intel® Pentium® Gold

Supported memory types

DDR5-SDRAM

Motherboard chipset family

Intel

Number of memory slots

2

Supported memory clock speeds

4000 MHz
4800
5200
5400
5600
5800
6000
6200
6400
6600
6800
7000
7200

Front panel connector

Yes

USB 2.0 connectors

2

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Clear CMOS jumper

Yes

Supported storage drive interfaces

M.2, SATA III

PC health monitoring

Fan
Temperature
Voltage
Water cooling

Unbuffered memory

Yes

LAN controller

Realtek RTL8111H

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

TPM connector

Yes

12V power connector

Yes

BIOS type

UEFI AMI

Number of chassis fan connectors

2

RAID levels

0
1
5
10

Number of storage drives supported

6

Supported storage drive types

HDD & SSD

PCI Express x1 (Gen 3.x) slots

1

Number of M.2 (M) slots

2

Supported processor sockets

LGA 1700

EPS power connector (8-pin)

Yes

Lithium weight per battery

0.07 g

S/PDIF out connector

Yes

Number of HDDs supported

4

Supported memory clock speed (max)

7200 MHz

Serial port headers

1

Desktop Management Interface (DMI) version

2.7

PCI Express x16 (Gen 4.x) slots

1

ECC сompatibility

ECC & Non-ECC

Maximum internal memory per slot

64 GB

Number of CPU fan connectors

1

Number of EPS power connectors (8-pin)

1

Number of RGB LED pin headers

1

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

4.0
