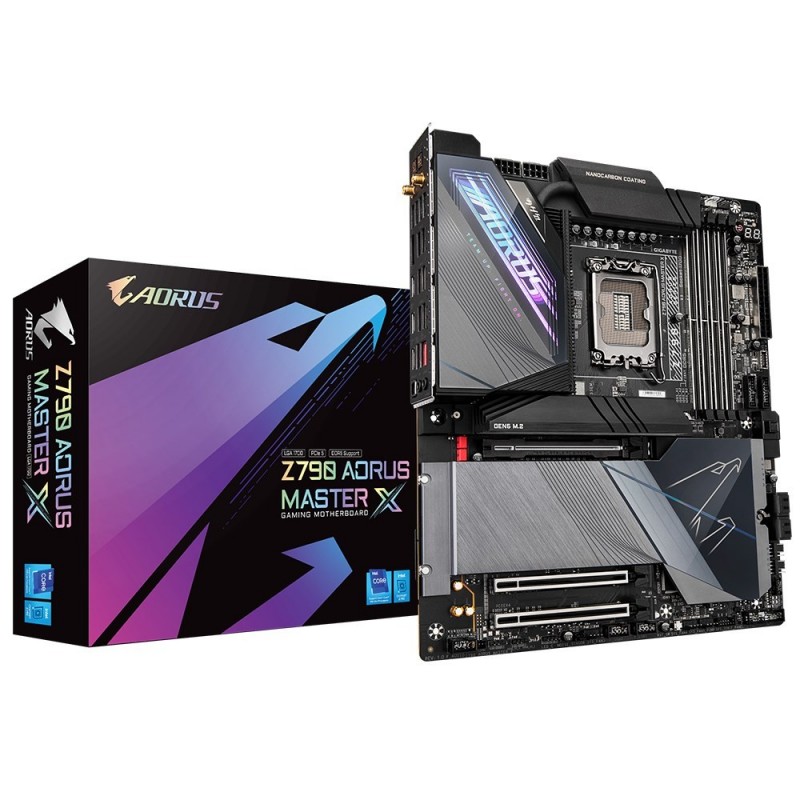

GIGABYTE Z790 AORUS MASTER X Motherboard- Supports Intel 13th Gen CPUs, 20+1+2 phases VRM, up to 8266MHz DDR5 (OC), 1x

Data sheet

Height

35 mm

Width

305 mm

Depth

260 mm

Bluetooth

Yes

Bluetooth version

5.3

Battery weight

3 g

Battery type

CR2032

Wi-Fi

Yes

Audio output channels

7.1 channels

Headphone outputs

1

Package weight

3.46 kg

Cables included

SATA

Package width

345 mm

Package depth

294 mm

Package height

80 mm

Microphone in

Yes

Windows operating systems supported

Windows 11 x64

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)
Wi-Fi 7 (802.11be)

Ethernet LAN (RJ-45) ports

1

Number of battery cells

1

Maximum internal memory

192 GB

DisplayPorts quantity

1

Ethernet LAN

Yes

Country of origin

Taiwan

HDCP

Yes

Maximum resolution

4096 x 2304 pixels

Bundled software

Norton® Internet Security (OEM version)
LAN bandwidth management software

DisplayPort version

1.2

Batteries included

Yes

Product colour

Black

Processor manufacturer

Intel

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Motherboard chipset

Intel Z790 Express

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Memory channels

Dual-channel

Audio chip

Realtek ALC1220-VB

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

7

Warranty period

3 year(s)

Processor socket

LGA 1700

USB 3.2 Gen 2x2 Type-C ports quantity

2

USB connector type

USB Type-A
USB Type-C

RGB LED pin header

Yes

Ethernet interface type

10 Gigabit Ethernet

Products per shipping (inner) case

1 pc(s)

RAID support

Yes

S/PDIF out port

Yes

Number of SATA III connectors

4

Memory slots type

DIMM

Parallel processing technology support

Not supported

DirectX version

12.0

Motherboard form factor

Extended ATX

Compatible processor series

Intel® Celeron®
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9
Intel® Pentium® Gold

Supported memory types

DDR5-SDRAM

Maximum number of SMP processors

1

Motherboard chipset family

Intel

Number of memory slots

4

Supported memory clock speeds

4000
4800
5200
5400
5600 MHz
5800
6000
6200
6400
6600
6800
7000
7200
7400
7600
7800
7900
7950
8000
8200
8266

Front panel connector

Yes

USB 2.0 connectors

2

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Clear CMOS jumper

Yes

Supported storage drive interfaces

M.2, SATA III

PC health monitoring

Fan
Noise
Temperature
Voltage
Water cooling

Unbuffered memory

Yes

LAN controller

Marvell AQtion AQC113C

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

TPM connector

Yes

12V power connector

Yes

BIOS type

UEFI AMI

PCI Express x16 (Gen 3.x) slots

2

Number of chassis fan connectors

8

RAID levels

0
1
5
10

Number of storage drives supported

9

Supported storage drive types

HDD & SSD

Number of M.2 (M) slots

5

Supported processor sockets

LGA 1700

Maximum internal memory supported by processor

192 GB

EPS power connector (8-pin)

Yes

Lithium weight per battery

0.07 g

Number of HDDs supported

4

Supported memory clock speed (max)

8266 MHz

Desktop Management Interface (DMI) version

2.7

Clear CMOS button

Yes

Thunderbolt headers

2

PCI Express x16 (Gen 5.x) slots

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

WiFi-AP antenna jack

2

Antenna included

Yes

Digital audio optical out

1

ECC сompatibility

ECC & Non-ECC
