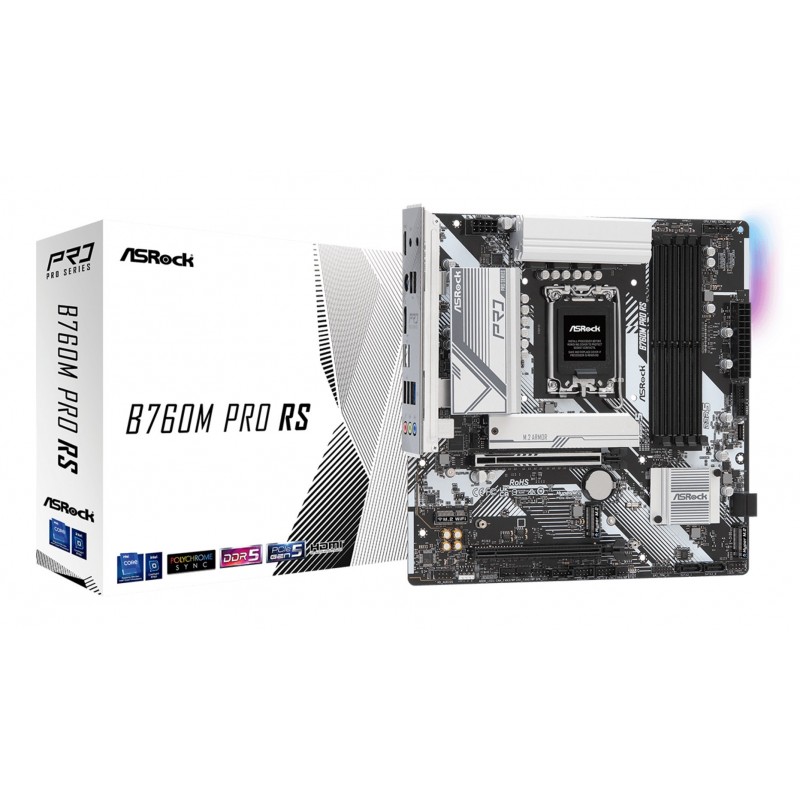

Płyta główna ASRock B760M PRO RS

Data sheet

Width

244 mm

Depth

244 mm

Wi-Fi

No

Audio output channels

7.1 channels

USB 2.0 ports quantity

2

Microphone in

Yes

Line-in

Yes

Windows operating systems supported

Windows 10 x64
Windows 11 x64

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

Maximum internal memory

256 GB

DisplayPorts quantity

1

Ethernet LAN

Yes

DisplayPort version

1.4

Processor manufacturer

Intel

Motherboard chipset

Intel B760

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Memory channels

Dual-channel

Audio chip

Realtek ALC897

Processor socket

LGA 1700

RGB LED pin header

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Number of SATA III connectors

4

Memory slots type

DIMM

Motherboard form factor

Micro ATX

Compatible processor series

Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9

Supported memory types

DDR5-SDRAM

Maximum number of SMP processors

1

Motherboard chipset family

Intel

Number of memory slots

4

USB 2.0 connectors

6

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Supported storage drive interfaces

M.2, SATA III

PS/2 ports quantity

1

LAN controller

Realtek RTL8125-BG

TPM connector

Yes

BIOS type

UEFI AMI

PCI Express x16 (Gen 3.x) slots

1

Supported storage drive types

HDD & SSD

Number of M.2 (M) slots

1

Thunderbolt headers

1

PCI Express x16 (Gen 5.x) slots

1

ECC сompatibility

Non-ECC
