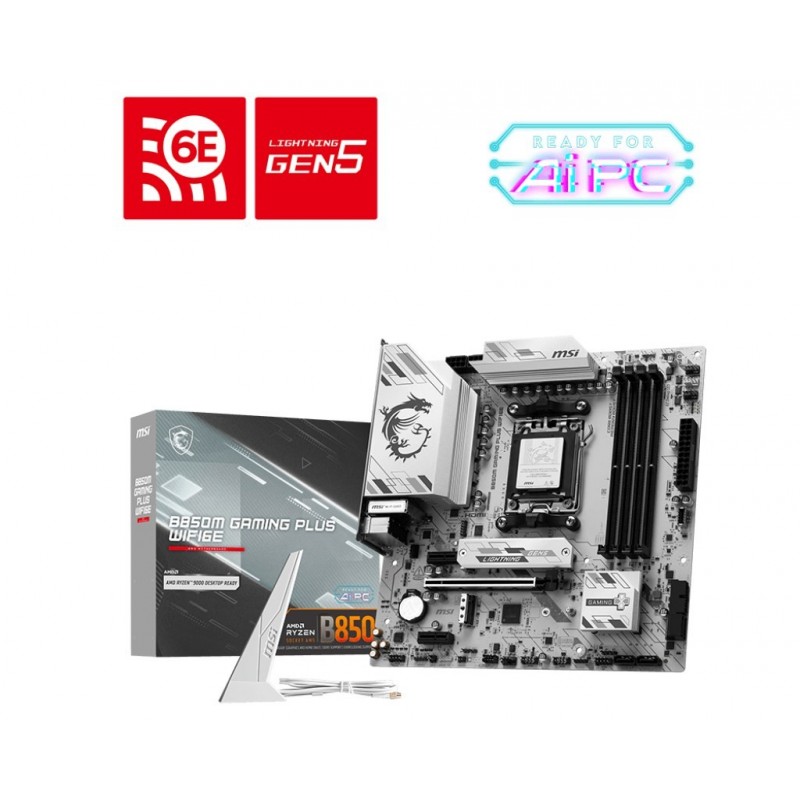

MSI B850M GAMING PLUS WIFI6E AMD B850 Socket AM5 micro ATX

Data sheet

Width

243.8 mm

Depth

243.8 mm

Bluetooth

Yes

Bluetooth version

5.4

Wi-Fi

Yes

Audio output channels

7.1 channels

Windows operating systems supported

Windows 11 x64

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)
Wi-Fi 6E (802.11ax)
Wi-Fi 7 (802.11be)

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

Maximum internal memory

256 GB

Ethernet LAN

Yes

HDMI version

2.1

Product colour

Black

Processor manufacturer

AMD

On-board graphics card

No

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Motherboard chipset

AMD B850

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2

Memory channels

Dual-channel

Audio chip

Realtek ALC897

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

Processor socket

Socket AM5

RGB LED pin header

Yes

Ethernet interface type

5 Gigabit Ethernet

RAID support

Yes

Number of SATA III connectors

4

Total number of SATA connectors

4

Memory slots type

DIMM

Motherboard form factor

Micro ATX

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Supported memory types

DDR5-SDRAM

Motherboard chipset family

AMD

Number of memory slots

4

Supported memory clock speeds

4800
6000
6400
8200 MHz

Front panel connector

Yes

USB 2.0 connectors

4

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Supported storage drive interfaces

M.2

LAN controller

Realtek RTL8126

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

PCI Express x16 (Gen 3.x) slots

1

RAID levels

0
1
10

Number of storage drives supported

7

Supported storage drive types

HDD & SSD

Number of M.2 (M) slots

3

Supported processor sockets

Socket AM5

Number of HDDs supported

4

Supported memory clock speed (max)

8200 MHz

PCI Express x16 slots

1

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

PCI Express x4 slots

1

ECC сompatibility

Non-ECC

Number of CPU fan connectors

2

Number of water pump connectors

1

Number of RGB LED pin headers

3

3rd M.2 largest key size

2280

1st M.2 largest key size

2280

3rd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

2nd M.2 highest PCI Express generation

5.0

1st M.2 highest PCI Express generation

5.0
