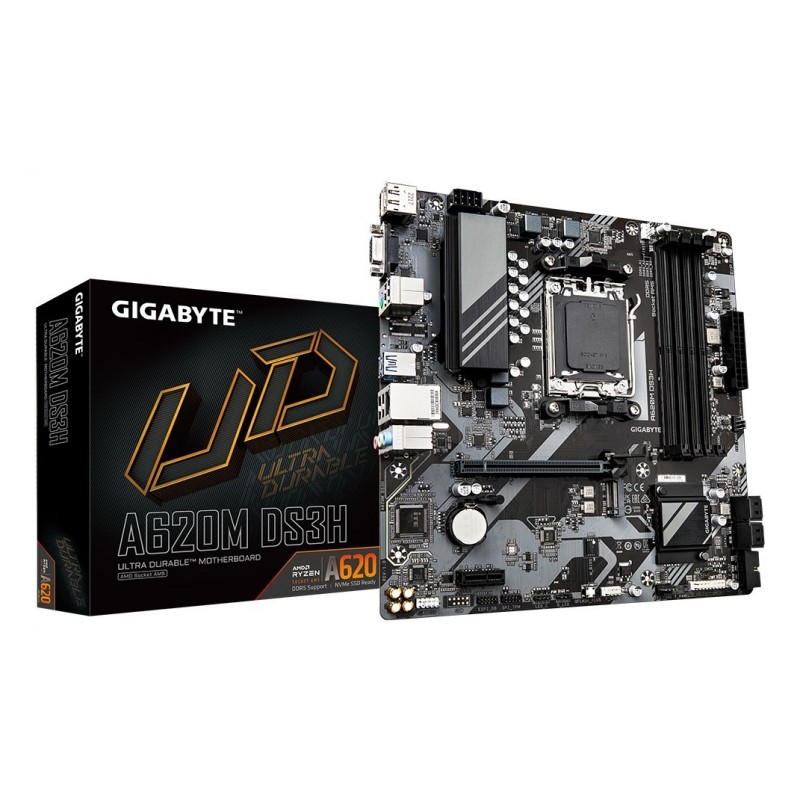

GIGABYTE A620M DS3H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7600MHz DDR5 (OC),

Data sheet

Width

244 mm

Depth

174 mm

Battery weight

3 g

Battery type

CR2032

Audio output channels

7.1 channels

Headphone outputs

3

USB 2.0 ports quantity

4

Windows operating systems supported

Windows 10 x64
Windows 11 x64

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

Number of battery cells

1

VGA (D-Sub) ports quantity

1

Maximum internal memory

256 GB

DisplayPorts quantity

1

Ethernet LAN data rates

10
100
1000 Mbit/s

Ethernet LAN

Yes

HDCP

Yes

HDMI version

2.1

DisplayPort version

1.4

Processor manufacturer

AMD

Motherboard chipset

AMD A620

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

Memory channels

Dual-channel

Warranty period

3 year(s)

Processor socket

Socket AM5

USB connector type

USB Type-A
USB Type-C

RGB LED pin header

Yes

Ethernet interface type

Gigabit Ethernet

HDCP version

2.3

RAID support

Yes

Number of SATA III connectors

4

Total number of SATA connectors

4

Memory slots type

DIMM

Number of audio jack connectors

3

Motherboard form factor

Micro ATX

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Supported memory types

DDR5-SDRAM

Motherboard chipset family

AMD

Number of memory slots

4

Supported memory clock speeds

4800
5200
5600
6000
6200
6400
6600
6800
7000
7200
7600

Front panel connector

Yes

USB 2.0 connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Clear CMOS jumper

Yes

Supported storage drive interfaces

M.2, SATA III

PS/2 ports quantity

1

PC health monitoring

Fan
Temperature
Voltage

Unbuffered memory

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

TPM connector

Yes

12V power connector

Yes

BIOS type

UEFI AMI

RAID levels

0
1
10

Number of storage drives supported

4

Supported storage drive types

HDD & SSD

Number of M.2 (M) slots

1

Supported processor sockets

Socket AM5

Maximum internal memory supported by processor

256 GB

EPS power connector (8-pin)

Yes

Lithium weight per battery

0.07 g

Supported memory clock speed (max)

7600 MHz

Desktop Management Interface (DMI) version

2.7

PCI Express x16 slots

1

PCI Express x1 slots

1

ECC сompatibility

Non-ECC
