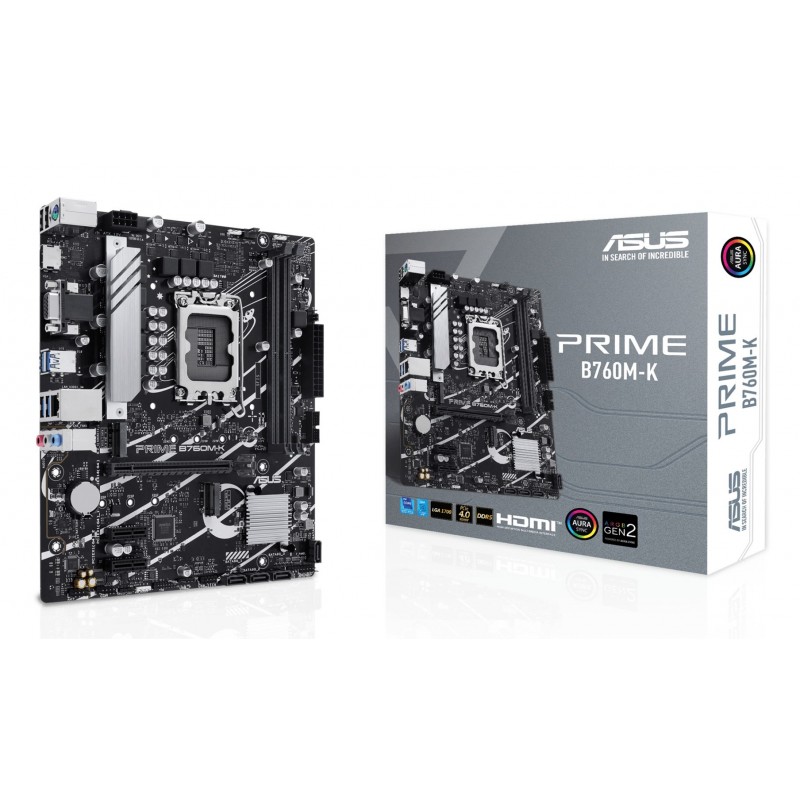

ASUS PRIME B760M-K Intel B760 LGA 1700 micro ATX

Lisainfo

Width

244 mm

Depth

211 mm

Wi-Fi

No

Heli väljundkanalid

7.1 channels

Kaablid kaasas

SATA

USB 2.0 portide kogus

2

Toetatud Windowsi operatsioonisüsteemid

Windows 10 x64
Windows 11

Etherneti LAN (RJ-45) pordid

1

HDMI-portide arv

1

VGA (D-Sub) portide arv

1

Maksimaalne sisemälu

96 GB

Etherneti LAN

Yes

Protsessori tootja

Intel

Emaplaadi kiibistik

Intel B760

USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide arv

4

Mälu kanalid

Dual-channel

Protsessori pesa

LGA 1700

RGB LED pin header

Yes

Ethernet interface type

2.5 Gigabit Ethernet

RAID support

Yes

S/PDIF väljundport

Yes

SATA III pistikute arv

4

Mälupesade tüüp

DIMM

Parallel processing technology support

Not supported

Motherboard form factor

Micro ATX

Compatible processor series

Intel® Celeron®
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9
Intel® Pentium® Gold

Supported memory types

DDR5-SDRAM

Maximum number of SMP processors

1

Motherboard chipset family

Intel

Number of memory slots

2

Supported memory clock speeds

4800
5000
5200
5400
5600
5800
6000
6200
6400
6600
6800
7000
7200
7400
7600
7800
8000 MHz

USB 2.0 connectors

2

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Supported storage drive interfaces

M.2, SATA III

PS/2 ports quantity

1

Unbuffered memory

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

TPM connector

Yes

12V power connector

Yes

BIOS type

UEFI AMI

Number of chassis fan connectors

1

Number of COM connectors

1

RAID levels

0
1
5
10

Number of storage drives supported

6

Supported storage drive types

HDD & SSD

Number of M.2 (M) slots

2

Supported processor sockets

LGA 1700

EPS power connector (8-pin)

Yes

S/PDIF out connector

Yes

Number of HDDs supported

4

Supported memory clock speed (max)

8000 MHz

PCI Express x16 (Gen 4.x) slots

1

PCI Express x1 (Gen 4.x) slots

2

ECC сompatibility

Non-ECC
