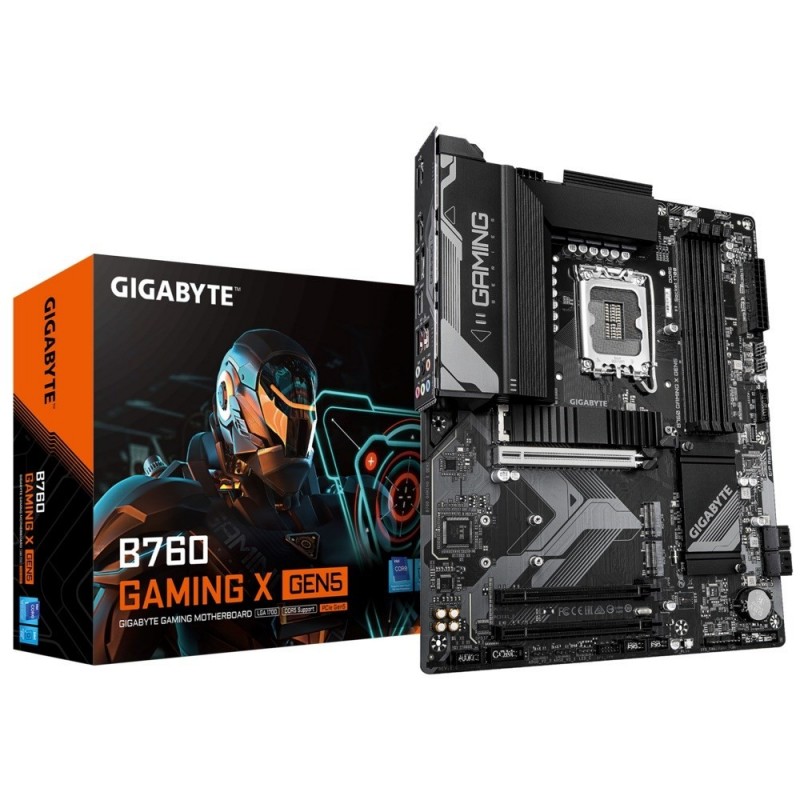

Płyta główna Gigabyte B760 GAMING X GEN5

Lisainfo

Width

305 mm

Depth

244 mm

Heli väljundkanalid

7.1 channels

Toiteallika tüüp

ATX

USB 2.0 portide kogus

5

Toetatud Windowsi operatsioonisüsteemid

Windows 10 x64
Windows 11 x64

Etherneti LAN (RJ-45) pordid

1

HDMI-portide arv

1

Maksimaalne sisemälu

256 GB

DisplayPortide kogus

1

Etherneti LAN

Yes

HDCP

Yes

Maksimaalne eraldusvõime

4096 x 2304 pixels

HDMI versioon

2.1

DisplayPort versioon

1.2

Protsessori tootja

Intel

Emaplaadi kiibistik

Intel B760

USB 3.2 Gen 1 (3.1 Gen 1) C-tüüpi portide arv

1

USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide arv

1

Mälu kanalid

Dual-channel

USB 3.2 Gen 2 (3.1 Gen 2) A-tüüpi portide arv

1

Protsessori pesa

LGA 1700

RGB LED pin header

Yes

Ethernet interface type

2.5 Gigabit Ethernet

RAID support

Yes

SATA III pistikute arv

4

Mälupesade tüüp

DIMM

Motherboard form factor

ATX

Compatible processor series

Intel Core i3 12th Gen
Intel Core i3 13th Gen
Intel Core i3 14th Gen
Intel Core i5 12th Gen
Intel Core i5 13th Gen
Intel Core i5 14th Gen
Intel Core i7 12th Gen
Intel Core i7 13th Gen
Intel Core i7 14th Gen
Intel Core i9 12th Gen
Intel Core i9 13th Gen
Intel Core i9 14th Gen
Intel® Celeron®
Intel® Pentium®

Supported memory types

DDR5-SDRAM

Motherboard chipset family

Intel

Number of memory slots

4

Supported memory clock speeds

4000
4800
5200
5400
5600 MHz
5800
6000
6200
6400
6600
6800
7000
7200
7400
7600

Front panel connector

Yes

USB 2.0 connectors

2

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Clear CMOS jumper

Yes

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

PC health monitoring

Fan
Temperature
Voltage
Water cooling

Unbuffered memory

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

TPM connector

Yes

12V power connector

Yes

BIOS type

UEFI AMI

PCI Express x16 (Gen 3.x) slots

2

Number of chassis fan connectors

4

RAID levels

0
1
5
10

Number of storage drives supported

7

Supported storage drive types

HDD & SSD

Number of M.2 (M) slots

3

Supported processor sockets

LGA 1700

EPS power connector (8-pin)

Yes

S/PDIF out connector

Yes

Number of HDDs supported

4

Supported memory clock speed (max)

7600 MHz

Serial port headers

1

Desktop Management Interface (DMI) version

2.7

PCI Express x16 (Gen 5.x) slots

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

ECC сompatibility

ECC & Non-ECC

Maximum internal memory per slot

64 GB

Number of CPU fan connectors

2

Number of water pump connectors

2

Number of EPS power connectors (8-pin)

1

Number of RGB LED pin headers

4

3rd M.2 largest key size

22110

1st M.2 largest key size

22110

3rd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

1st M.2 highest PCI Express generation

4.0
