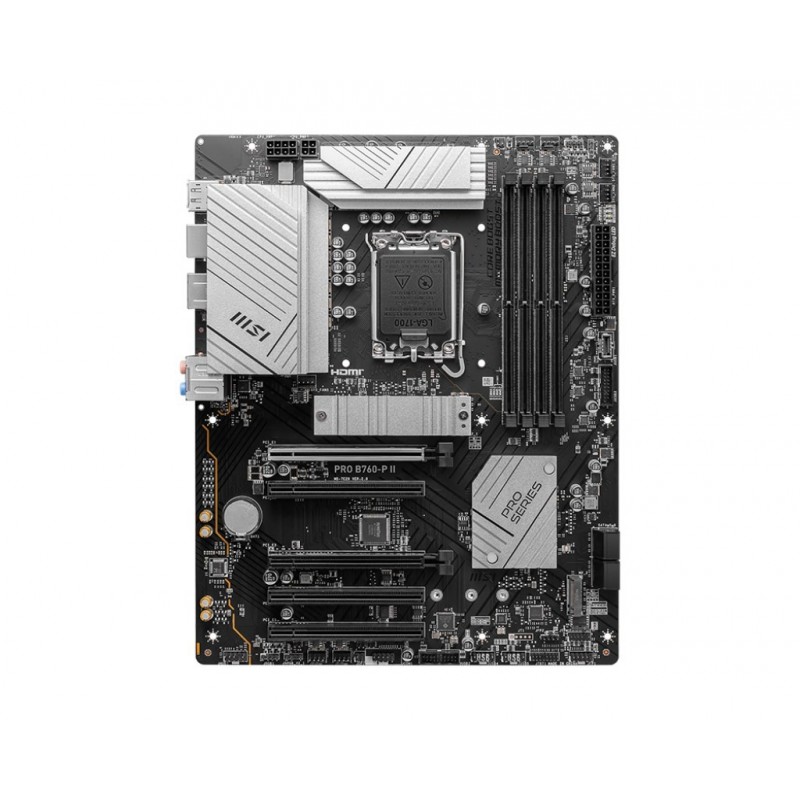

MSI PRO B760-P II motherboard Intel B760 LGA 1700 ATX

Lisainfo

Width

243.8 mm

Depth

304.8 mm

Wi-Fi

No

Heli väljundkanalid

7.1 channels

Kaablid kaasas

SATA

USB 2.0 portide kogus

4

Kaasas draiverid

Yes

Toetatud Windowsi operatsioonisüsteemid

Windows 10 x64
Windows 11 x64

Etherneti LAN (RJ-45) pordid

1

HDMI-portide arv

1

Maksimaalne sisemälu

256 GB

DisplayPortide kogus

1

Etherneti LAN

Yes

HDMI versioon

2.1

DisplayPort versioon

1.4

Protsessori tootja

Intel

Emaplaadi kiibistik

Intel B760

USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide arv

2

USB 3.2 Gen 2 (3.1 Gen 2) C-tüüpi portide arv

1

Mälu kanalid

Dual-channel

Heli kiip

Realtek ALC897

Protsessori pesa

LGA 1700

Ethernet interface type

2.5 Gigabit Ethernet

RAID support

Yes

SATA III pistikute arv

4

Mälupesade tüüp

DIMM

Motherboard form factor

ATX

Compatible processor series

Intel® Celeron®
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Pentium® Gold

Supported memory types

DDR5-SDRAM

Motherboard chipset family

Intel

Number of memory slots

4

Supported memory clock speeds

4800
5000
5200 MHz
5400
5600
5800
6000
6200
6400
6600
6800
7000

Front panel connector

Yes

USB 2.0 connectors

4

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Clear CMOS jumper

Yes

Supported storage drive interfaces

PCI Express 4.0, SATA III

Unbuffered memory

Yes

LAN controller

Realtek RTL8125-BG

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

Chassis intrusion connector

Yes

12V power connector

Yes

BIOS type

UEFI AMI

RAID levels

0
1
5
10

Number of storage drives supported

6

PCI Express x1 (Gen 3.x) slots

1

Number of M.2 (M) slots

2

Maximum internal memory supported by processor

256 GB

S/PDIF out connector

Yes

Number of HDDs supported

4

Supported memory clock speed (max)

7000 MHz

PCI Express x16 (Gen 4.x) slots

1

Power fan connector

Yes

Clear CMOS button

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

PCI Express x4 (Gen 4.x) slots

1

PCI Express x1 (Gen 4.x) slots

2

ECC сompatibility

Non-ECC
