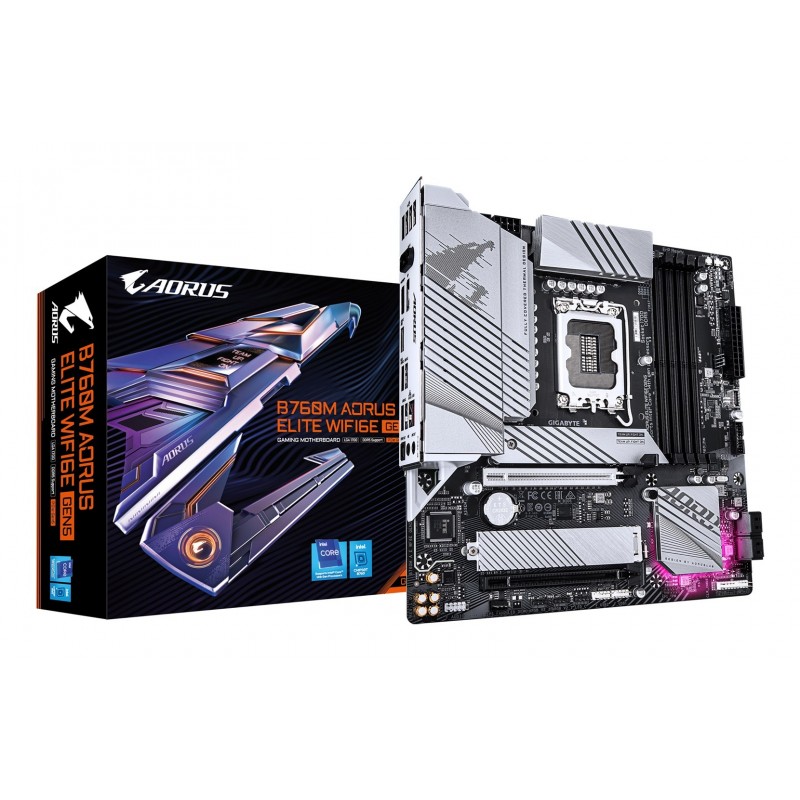

GIGABYTE B760M AORUS ELITE WIFI6E GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 12+1+1 phases VRM, up to

Lisainfo

Height

35 mm

Width

244 mm

Depth

244 mm

Kaal

1.33 kg

Bluetooth

Jah

Bluetoothi ​​versioon

5.3

Battery weight

3 g

Aku tüüp

CR2032

Wi-Fi

Yes

Heli väljundkanalid

7.1 channels

Toiteallika tüüp

ATX

Kõrvaklappide väljundid

1

Paki kaal

1.75 kg

USB 2.0 portide kogus

4

Pakendi laius

270 mm

Pakendi sügavus

268 mm

Pakendi kõrgus

68 mm

Line-in

Yes

Toetatud Windowsi operatsioonisüsteemid

Windows 10 x64
Windows 11 x64

Aku tehnoloogia

Lithium-Manganese Dioxide (LiMnO2)

Wi-Fi standardid

802.11 ac
802.11 ax
802.11a
802.11b
802.11g
802.11n
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)
Wi-Fi 6E (802.11ax)

Etherneti LAN (RJ-45) pordid

1

HDMI-portide arv

1

Akuelementide arv

1

Maksimaalne sisemälu

256 GB

DisplayPortide kogus

1

Etherneti LAN

Yes

Päritoluriik

China

HDCP

Yes

Maksimaalne eraldusvõime

4096 x 2304 pixels

Komplekti kuuluv tarkvara

Norton® Internet Security (OEM version)
LAN bandwidth management software

HDMI versioon

2.1

DisplayPort versioon

1.2

Patareid kaasas

Yes

Toote värv

Black

Protsessori tootja

Intel

Parim Wi-Fi standard

Wi-Fi 6E (802.11ax)

Emaplaadi kiibistik

Intel B760 Express

WLAN-i kontrolleri mudel

Intel Wi-Fi 6E AX210

USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide arv

3

Mälu kanalid

Dual-channel

USB 3.2 Gen 2 (3.1 Gen 2) A-tüüpi portide arv

1

Garantiiaeg

3 year(s)

Protsessori pesa

LGA 1700

USB 3.2 Gen 2x2 Type-C portide kogus

1

RGB LED pin header

Yes

Screws included

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Products per shipping (inner) case

1 pc(s)

RAID support

Yes

Jahutustüüp

Passive

S/PDIF väljundport

Yes

SATA III pistikute arv

4

Mälupesade tüüp

DIMM

Parallel processing technology support

Not supported

DirectX version

12.0

Motherboard form factor

Micro ATX

Compatible processor series

Intel Core i3 12th Gen
Intel Core i3 13th Gen
Intel Core i3 14th Gen
Intel Core i5 12th Gen
Intel Core i5 13th Gen
Intel Core i5 14th Gen
Intel Core i7 12th Gen
Intel Core i7 13th Gen
Intel Core i7 14th Gen
Intel Core i9 12th Gen
Intel Core i9 13th Gen
Intel Core i9 14th Gen
Intel® Celeron®
Intel® Pentium® Gold

Supported memory types

DDR5-SDRAM

Motherboard chipset family

Intel

Number of memory slots

4

Supported memory clock speeds

4000
4800
5200
5400
5600
5800
6000
6200
6400
6600
6800 MHz
7000
7200
7400
7600
7800

Front panel connector

Yes

USB 2.0 connectors

4

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Clear CMOS jumper

Yes

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

PC health monitoring

Fan
Temperature
Voltage
Water cooling

Unbuffered memory

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

TPM connector

Yes

12V power connector

Yes

BIOS type

UEFI AMI

Number of chassis fan connectors

3

RAID levels

0
1
5
10

Number of storage drives supported

6

Supported storage drive types

HDD & SSD

Number of M.2 (M) slots

2

Supported processor sockets

LGA 1700

EPS power connector (8-pin)

Yes

Lithium weight per battery

0.07 g

Number of HDDs supported

4

Supported memory clock speed (max)

7800 MHz

Desktop Management Interface (DMI) version

2.7

PCI Express x16 (Gen 4.x) slots

1

Thunderbolt headers

2

PCI Express x16 (Gen 5.x) slots

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

WiFi-AP antenna jack

2

Antenna included

Yes

ECC сompatibility

ECC & Non-ECC

Maximum internal memory per slot

64 GB

Number of CPU fan connectors

1

Number of EPS power connectors (8-pin)

1

Number of RGB LED pin headers

4

1st M.2 largest key size

2280

2nd M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

1st M.2 highest PCI Express generation

4.0
