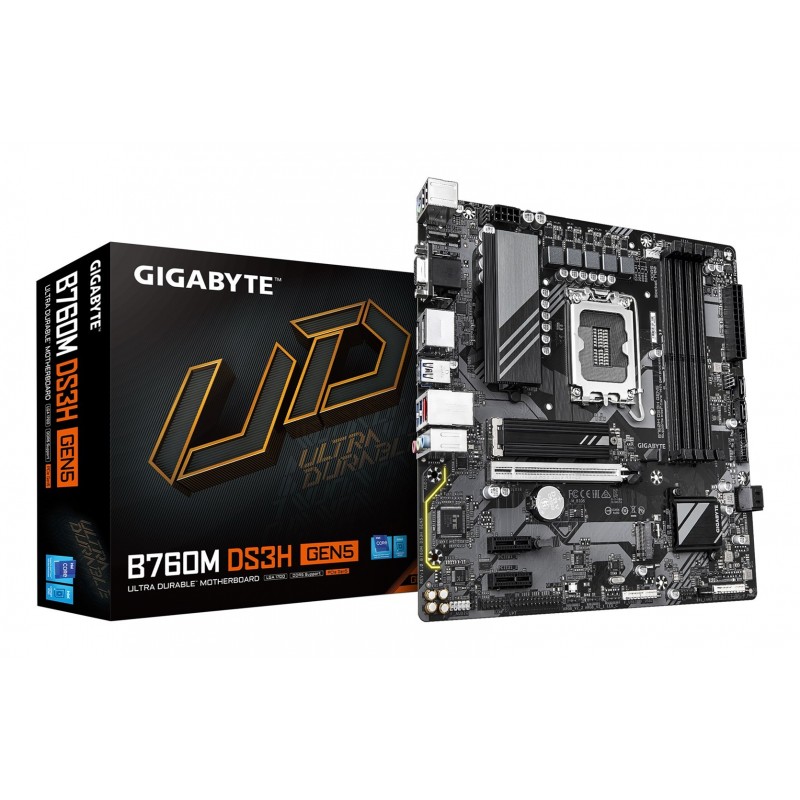

Płyta główna Gigabyte B760M DS3H GEN5

Lisainfo

Width

244 mm

Depth

174 mm

Heli väljundkanalid

7.1 channels

Toiteallika tüüp

ATX

Kõrvaklappide väljundid

1

USB 2.0 portide kogus

2

Mikrofon sees

Yes

Line-in

Yes

Toetatud Windowsi operatsioonisüsteemid

Windows 10 x64
Windows 11 x64

Etherneti LAN (RJ-45) pordid

1

HDMI-portide arv

1

VGA (D-Sub) portide arv

1

Maksimaalne sisemälu

256 GB

DisplayPortide kogus

2

Etherneti LAN

Yes

HDCP

Yes

Maksimaalne eraldusvõime

4096 x 2304 pixels

HDMI versioon

2.1

DisplayPort versioon

1.2

Protsessori tootja

Intel

Emaplaadi kiibistik

Intel B760 Express

USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide arv

3

USB 3.2 Gen 2 (3.1 Gen 2) C-tüüpi portide arv

1

Mälu kanalid

Dual-channel

Protsessori pesa

LGA 1700

RGB LED pin header

Yes

Ethernet interface type

2.5 Gigabit Ethernet

RAID support

Yes

Jahutustüüp

Passive

SATA III pistikute arv

4

Mälupesade tüüp

DIMM

Parallel processing technology support

Not supported

Motherboard form factor

Micro ATX

Compatible processor series

Intel Core i3 12th Gen
Intel Core i3 13th Gen
Intel Core i3 14th Gen
Intel Core i5 12th Gen
Intel Core i5 13th Gen
Intel Core i5 14th Gen
Intel Core i7 12th Gen
Intel Core i7 13th Gen
Intel Core i7 14th Gen
Intel Core i9 12th Gen
Intel Core i9 13th Gen
Intel Core i9 14th Gen
Intel® Celeron®
Intel® Pentium® Gold

Supported memory types

DDR5-SDRAM

Motherboard chipset family

Intel

Number of memory slots

4

Supported memory clock speeds

4400 MHz
4800
5200
5600

Front panel connector

Yes

USB 2.0 connectors

2

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Clear CMOS jumper

Yes

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

PS/2 ports quantity

1

PC health monitoring

Fan
Temperature
Voltage
Water cooling

Unbuffered memory

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

TPM connector

Yes

12V power connector

Yes

BIOS type

UEFI AMI

Number of chassis fan connectors

3

RAID levels

0
1
5
10

Number of storage drives supported

6

Supported storage drive types

HDD & SSD

PCI Express x1 (Gen 3.x) slots

2

Number of M.2 (M) slots

2

Supported processor sockets

LGA 1700

EPS power connector (8-pin)

Yes

S/PDIF out connector

Yes

Number of HDDs supported

4

Supported memory clock speed (max)

5600 MHz

Serial port headers

1

Desktop Management Interface (DMI) version

2.7

Parallel connector

Yes

PCI Express x16 (Gen 5.x) slots

1

ECC сompatibility

ECC & Non-ECC

Maximum internal memory per slot

64 GB

Number of CPU fan connectors

1

Number of EPS power connectors (8-pin)

1

Number of RGB LED pin headers

3

1st M.2 largest key size

2280

2nd M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

1st M.2 highest PCI Express generation

4.0
