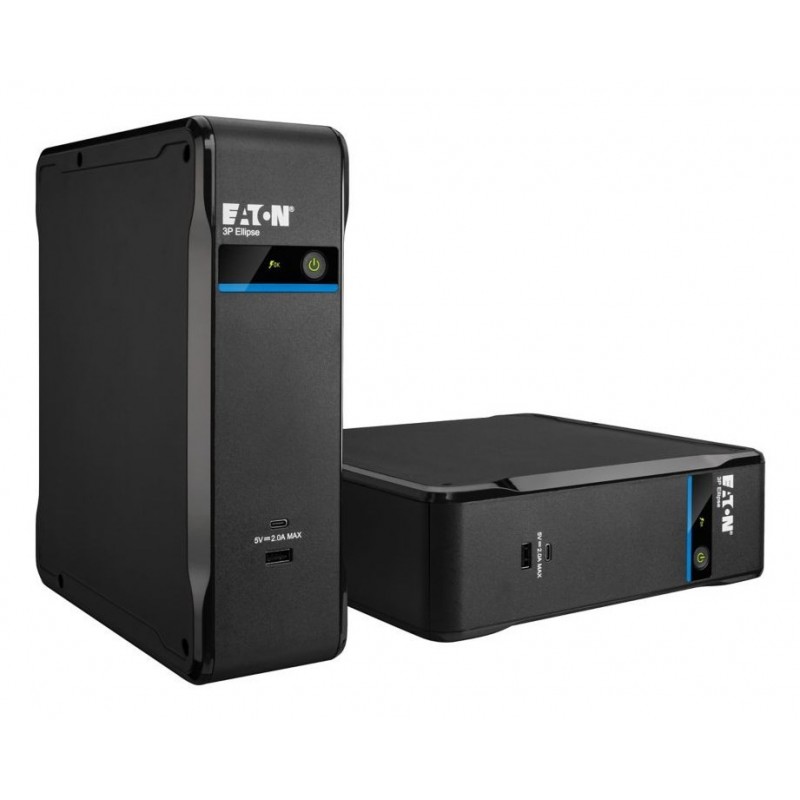

Eaton 3P Ellipse 900 uninterruptible power supply (UPS) Standby (Offline) 0.9 kVA 540 W 4 AC outlet(s)

Data sheet

Height

263 mm

Width

81 mm

Depth

235 mm

Weight

4.4 kg

battery capacity

9 Ah

form factor

Tower

display type

LED

Battery voltage

12 V

Operating temperature (T-T)

0 - 40 °C

Operating altitude

0 - 3000 m

USB port

Yes

Cables included

USB cable

USB 2.0 ports quantity

2

Package type

Box

Output power

540 W

Ethernet LAN (RJ-45) ports

1

Operating relative humidity (H-H)

0 - 95%

Certification

IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
CE
UKCA
Ukr
Cm

Efficiency

97%

Product colour

Black

Compliance certificates

CB
CE
RoHS
WEEE

Input frequency

46/70 Hz

Noise level

25 dB

USB port type

USB Type A/USB Type-C

Quick installation guide

Yes

Output operation voltage (min)

161 V

Input operation voltage (max)

284 V

Waste Electrical and Electronic Equipment (WEEE) compliance

Yes

Surge protection

Yes

Output power capacity

0.9 kVA

Output operation voltage (max)

284 V

Input operation voltage (min)

161 V

UPS topology

Standby (Offline)

AC outlet types

C14 coupler

AC outlets quantity

4 AC outlet(s)

Waveform

Stepwise

Output frequency

50/60 Hz

Number of output phases

1

Number of input phases

1

Output power factor

0.6

Efficiency (ECO mode)

97%
