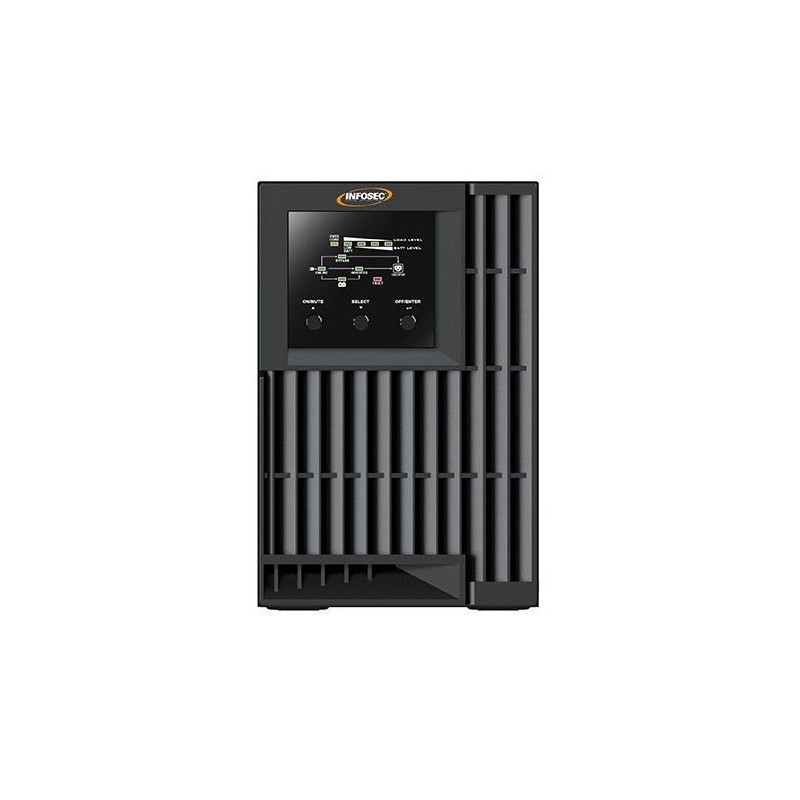

Infosec E4 Value 1000 uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 3 AC outlet(s)

Data sheet

Height

282 mm

Width

145 mm

Depth

220 mm

Weight

8.6 kg

battery capacity

9 Ah

form factor

Tower

display type

LED

Response time

4 ms

Battery voltage

12 V

Operating temperature (T-T)

0 - 40 °C

Manual

Yes

Cables included

Output power cable, RS-232, Input power cable

Battery recharge time

4 h

Battery technology

Sealed Lead Acid (VRLA)

Operating relative humidity (H-H)

20 - 90%

Certification

CE

Efficiency

88%

Product colour

Black

Compliance certificates

RoHS

Charging current

1 A

ECO mode

Yes

Input frequency

47 - 63 Hz

Noise level

50 dB

Audible alarm(s)

Yes

Output operation voltage (min)

100 V

Input operation voltage (max)

240 V

Serial interface type

RS-232

Output power capacity

1 kVA

Output operation voltage (max)

240 V

Input operation voltage (min)

100 V

UPS topology

Double-conversion (Online)

Audible alarm modes

Alarm when on battery, Fault, Overload alarm, Low battery alarm

AC outlet types

C13 coupler

AC outlets quantity

3 AC outlet(s)

Typical backup time at half load

9 min

Cold start

Yes

Waveform

Pure sine

Output frequency

47/63 Hz

Maximum current

10 A

Number of output phases

1

Number of input phases

1

Output voltage regulation

-1 - 1%

Output voltage Total Harmonic Distortion (THD)

6%

Typical backup time at full load

30 min

Serial ports quantity

1

Serial interface

Yes

Power factor

0.8

Crest factor

3:1

Input power factor

0.99

Warnings

Do not disassemble the unit housing, there may be a risk of electric shock.
Store away from sources of heat and open flame.
Use the appliance in well-ventilated areas to avoid overheating.
