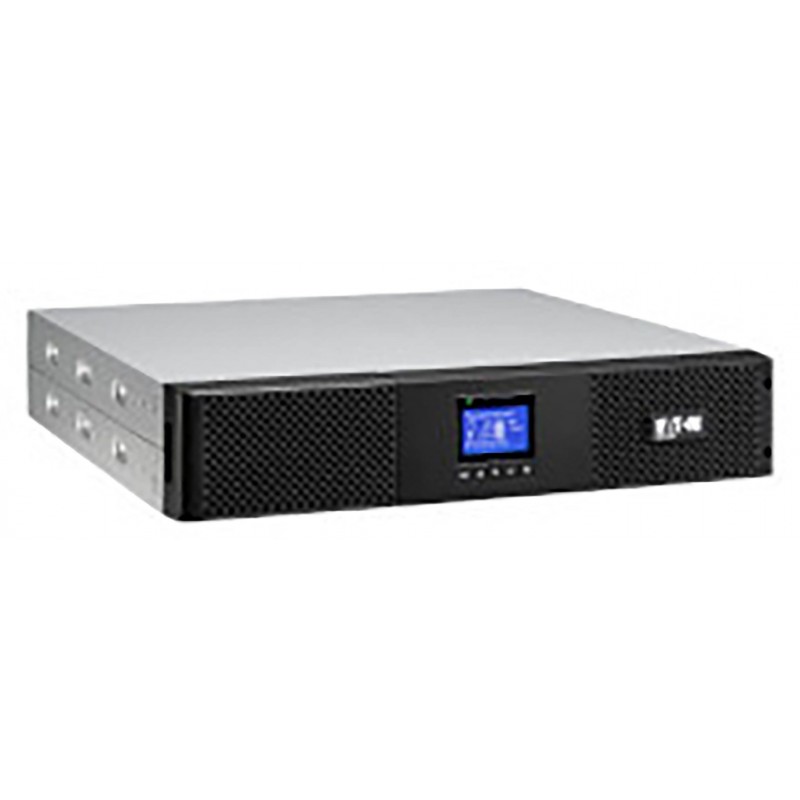

Eaton 9SX Double-conversion (Online) 3 kVA 2700 W 9 AC outlet(s)

Data sheet

Height

86.5 mm

Width

438 mm

Depth

608 mm

Weight

26.5 kg

form factor

Rackmount

display type

LCD

Operating temperature (T-T)

0 - 40 °C

USB port

Yes

Output power

2700 W

Certification

IEC/EN 62040 -2 , FCC B, CISPR22 B, CE /CB (TUV) / cULus / EAC / RCM

RS-232 ports

1

Product colour

Black

Input frequency

40 - 70 Hz

Noise level

45 dB

Input operation voltage (max)

276 V

Serial interface type

RS-232

Output power capacity

3 kVA

Input operation voltage (min)

200 V

UPS topology

Double-conversion (Online)

Safety

IEC/EN 62040-1, UL 1778, CSA 22.2

Rack capacity

2U

Power plug

C20 coupler

AC outlet types

C13 coupler
C19 coupler

AC outlets quantity

9 AC outlet(s)

Output frequency

50/60 Hz

Maximum current

16 A

Serial interface

Yes
