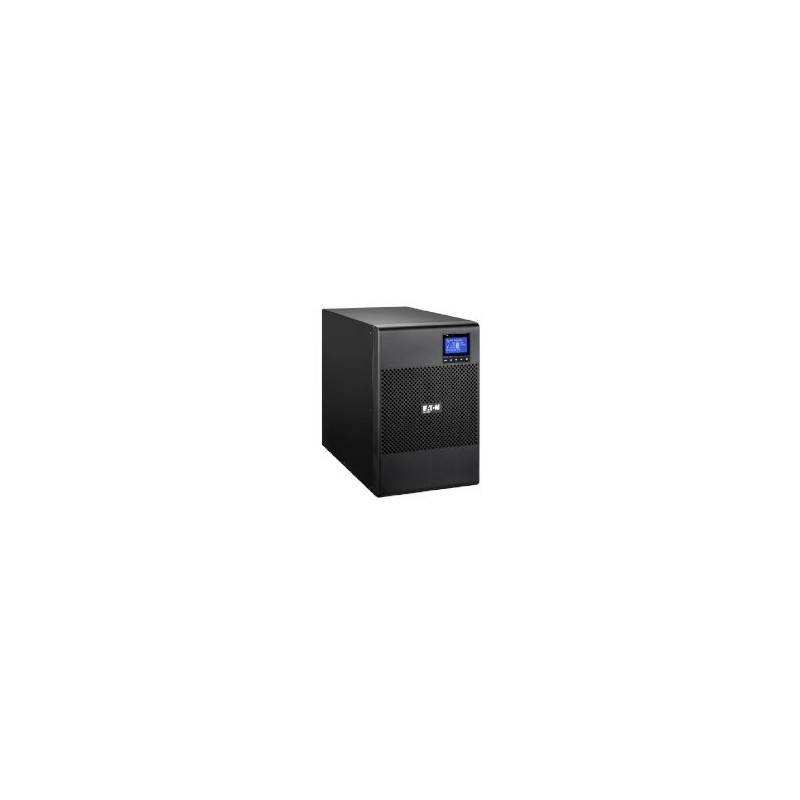

Eaton 9SX uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 9 AC outlet(s)

Data sheet

Height

346 mm

Width

214 mm

Depth

412 mm

Weight

33.4 kg

form factor

Tower

display type

LCD

Operating temperature (T-T)

0 - 40 °C

USB port

Yes

USB 2.0 ports quantity

1

Output power

2700 W

Battery technology

Sealed Lead Acid (VRLA)

Bundled software

Intelligent Power Software suite

Certification

IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC

RS-232 ports

1

Product colour

Black

Harmonized System (HS) code

85078000

ECO mode

No

Input frequency

40/70 Hz

Noise level

45 dB

Output operation voltage (min)

200 V

Input operation voltage (max)

276 V

Serial interface type

RS-232

Output power capacity

3 kVA

Output operation voltage (max)

240 V

Input operation voltage (min)

200 V

UPS topology

Double-conversion (Online)

Safety

IEC/EN 62040-1, UL 1778, CSA 22.2

Power plug

C20 coupler

AC outlet types

C13 coupler
C19 coupler

AC outlets quantity

9 AC outlet(s)

Hot-swap battery

Yes

Typical backup time at half load

15.5 min

Automatic battery test

Yes

Input connection type

IEC C20

Nominal input voltage

230 V

Nominal output voltage

230 V

Waveform

Pure sine

Output frequency

50/60 Hz

Number of output phases

1

Number of input phases

1

Serial interface

Yes

Power factor

0.9

Management card included

No
