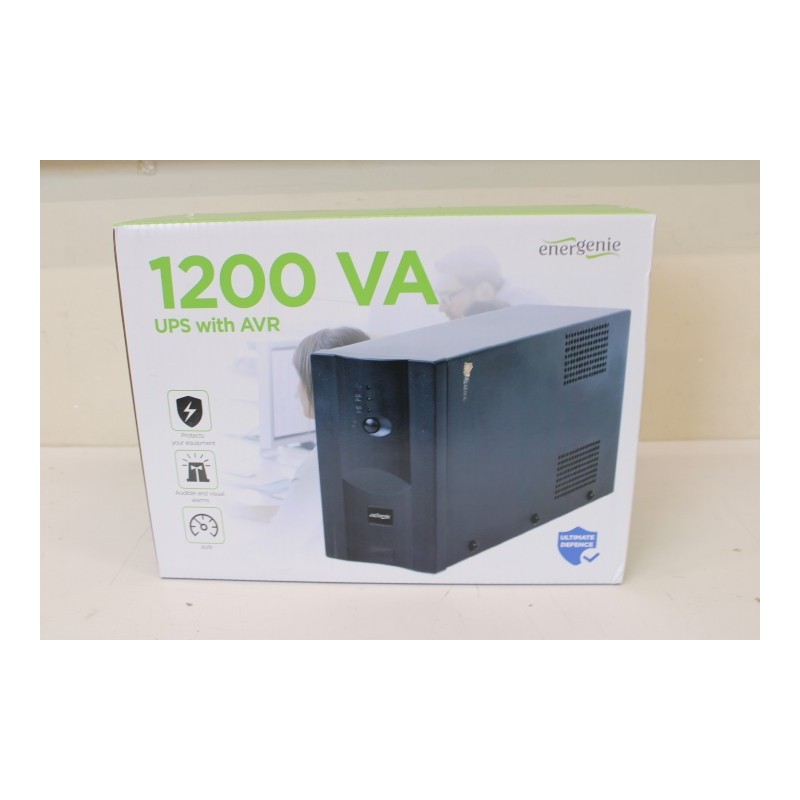

SALE OUT. Gembird UPS UPS-PC-1202AP 1200VA/ AVR/ USB/ LAN/ 4 IEC - DAMAGED PACKAGING. Gembird UPS UPS-PC-1202AP |

Data sheet

Height

382x222x124 mm cm

Width

382x222x124 mm cm

Depth

382x222x124 mm cm

Weight

10.4 kg g

battery capacity

7 Ah

form factor

Tower

Product Type

UPS

Capacity

1200 VA

Special features

Regolazione automatica del voltaggio in output (AVR) Interfaccia USB Indicatori status del LED Protezione da corto circuiti Protezione da sovraccarichi e fulmini Allarmi sonori e visivi Protezione da sovraccaricamento e sovrascaricamento Protezione presa Fax/Modem/Telefono

Response time

10 ms

Plastic (No PET)

720 g

Classification of battery

CL126:PE:2016-12-09

Composition of battery

CL127:KT:2016-12-09

Type of battery

Accumulator

Embeeded battery

Yes

WEEE tax

Yes

WEE classification

CL109:5:2017-04-01

Warranty

24 month(s)

Other features

Input: AC 220V±25%, 50Hz/60Hz ±10%Output: AC 220V±10%, 50Hz/60Hz ±0.5% (on battery)Switching time: no more than 10 msBackup time: 8...20mins (depends on the load)Battery: sealed lead-acid 12V/7Ah x 2pcsCharge time: up to 12 hoursSockets: Schuko EU type, 1 input, 3 outputs; telephone RJ11x2pcs connectors; USB-BF connectorOperating conditions: 0°C~40°C, at humidity 10~90%RH non condensingPower: 1200VA, DAMAGED PACKAGING

Battery voltage

12 V

Producer product name

UPS UPS-PC-1202AP

Gross depth master carton

395 mm

Gross height master carton

305 mm

Gross width master carton

375 mm

Net weight master carton

20 kg

Tare weight master carton

0.768 kg

Producer

Gembird

Colour of product

Black

Operating temperature (T-T)

0 - 40 °C

Dimensions (WxDxH)

382x222x124 mm mm

USB 2.0 ports quantity

1

Package width

18 cm

Package depth

39 cm

Package height

29.5 cm

Output power

720 W

Battery recharge time

12 h

Battery technology

Sealed Lead Acid (VR

Saleout

DAMAGED PACAKGING

Operating relative humidity (H-H)

10 - 90 %

RoHS compliance

Yes

Power supply input frequency

50/60 Hz

Output operation voltage (min)

220 V

Input operation voltage (max)

220 V

Output power capacity

1200 VA

Output operation voltage (max)

220 V

Input operation voltage (min)

220 V

UPS topology

Line-Interactive

Modem (RJ-11) ports

2

AC outlet types

C13 coupler, C14 cou

AC outlets quantity

4

Typical backup time at full load

20 min
