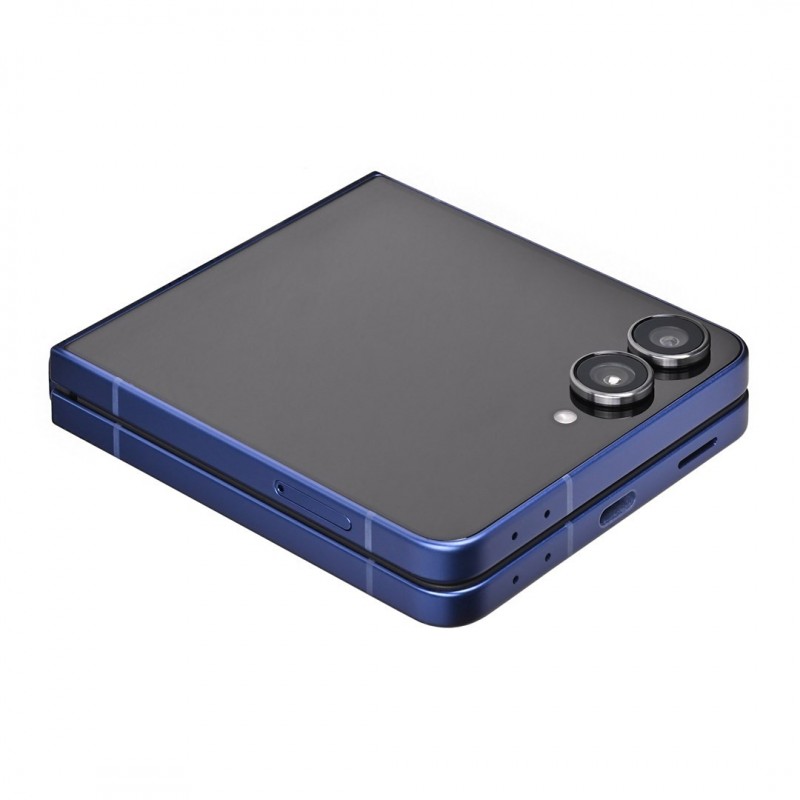

Samsung Galaxy Z Flip 7 F766 5G 12/256GB Blue Shadow

Data sheet

Height

166.7 mm

Width

75.2 mm

Depth

6.5 mm

Weight

188 g

battery capacity

4300 mAh

Bluetooth

Yes

Bluetooth version

5.4

fingerprint reader

Yes

Removable battery

No

digital zoom

10x

speakers

stereo

Wi-Fi Direct

Yes

Energy efficiency class

B

GPS (satellite)

Yes

Accelerometer

Yes

Short Message Service (SMS)

Yes

Gyroscope

Yes

Headphone connectivity

USB Type-C

Cables included

USB Type-C to USB Type-C

AC adapter included

No

Audio formats supported

3GA
AAC
AMR
APE
AWB
DFF
DSF
FLAC
IMY
M4A
MIDI
MP3
MXMF
Mid
OGA
OGG
OTA
RTTTL
RTX
WAV
XMF

Near Field Communication (NFC)

Yes

Platform

Android

Display diagonal

17.5 cm (6.9")

International Protection (IP) code

IP48

Processor model

2500

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)
Wi-Fi 6E (802.11ax)
Wi-Fi 7 (802.11be)

Processor family

Samsung Exynos

Front camera resolution (numeric)

10 MP

Rear camera resolution (numeric)

50 MP

Internal storage capacity

256 GB

Processor cores

10

Processor boost frequency

3.3 GHz

SIM card type

NanoSIM + eSIM

SIM card capability

Dual SIM

GLONASS

Yes

USB version

3.2 Gen 1 (3.1 Gen 1)

Maximum refresh rate

120 Hz

Image stabilizer

Yes

Video formats supported

3G2
3GP
AVI
FLV
M4V
MKV
MP4
WEBM

Display number of colours

16 million colours

Product colour

Blue

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Display resolution

2520 x 1080 pixels

Fast charging

Yes

Colour name

Blue Shadow

MIMO

Yes

Ambient light sensor

Yes

4G standard

LTE-TDD & LTE-FDD

Mobile network generation

5G

Hall sensor

Yes

Second display refresh rate

120 Hz

Second display resolution

1048 x 948 pixels

Second display diagonal

10.4 cm (4.1")

RAM capacity

12 GB

USB connector type

USB Type-C

Rear camera type

Dual camera

Front camera type

Single camera

Rear camera flash

Yes

E-mail

Yes

Galileo

Yes

Position location

Yes

5G standard

Sub6 FDD
Sub6 TDD

SIM card ejector pin

Yes

Resolution at capture speed

3840x2160@30fps

Maximum frame rate

240 fps

Front camera aperture number

2.2

Rear camera aperture number

1.8

Proximity sensor

Yes

3G standards

UMTS
WCDMA

Night mode

Yes

Second rear camera aperture number

2.2

Video capture resolution (max)

3840 x 2160 pixels

Display technology marketing name

Dynamic AMOLED 2X

Second rear camera resolution (numeric)

12 MP

BeiDou

Yes

Quasi-Zenith Satellite System (QZSS)

Yes

Modulation

4096-QAM

Gorilla Glass version

Gorilla Glass Victus 2

Image stabilizer type

Optical Image Stabilization (OIS)

Geomagnetic sensor

Yes

Barometer

Yes

Folded depth

1.37 cm

Folded width

7.52 cm

Folded height

8.55 cm

Wireless charging

Yes

Second display type

Dynamic AMOLED 2X

Second display Gorilla Glass version

Gorilla Glass Victus 2

Wireless charging power

15 W

Energy efficiency scale

A to G

Slow motion mode

Yes

USB Type-C charging port

Yes

Slow motion rate

240fps @FHD, 120fps @FHD

USB Type-C required charging power (max)

25 W

USB Type-C required charging power (min)

15 W

Battery endurance in cycles

2000

Battery endurance per cycle

2524 min

Repeated free fall reliability class

A

Repairability class

C
