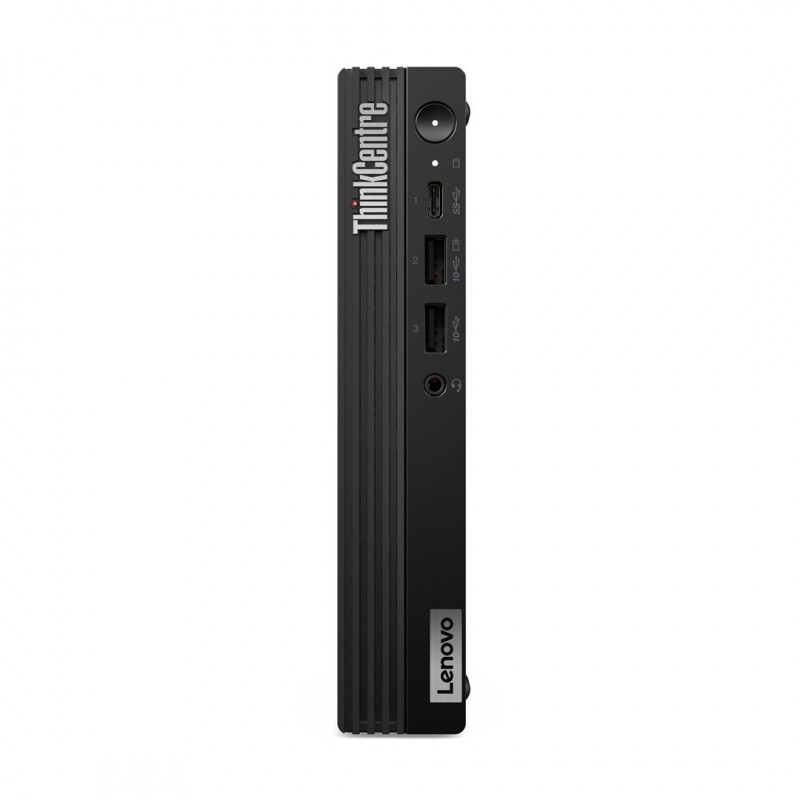

Lenovo ThinkCentre M70q Gen 5 Intel® Core™ i7 i7-14700T 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black

Data sheet

Height

36.5 mm

Width

179 mm

Depth

182.9 mm

Weight

1.25 kg

Bluetooth

Yes

Bluetooth version

5.3

power supply

135 W

Product Type

Mini PC

SSD Capacity

512 GB

Memory slots

2x SO-DIMM

Storage temperature (T-T)

-40 - 60 °C

Built-in speaker(s)

Yes

Operating temperature (T-T)

5 - 35 °C

Operating altitude

0 - 3048 m

Wi-Fi

Yes

Number of speakers

1

Package weight

3.2 kg

USB 2.0 ports quantity

1

Package width

250 mm

Package depth

490 mm

Package height

128 mm

Internal memory

16 GB

Processor model

i7-14700T

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Processor family

Intel® Core™ i7

Operating system installed

Windows 11 Pro

Ethernet LAN (RJ-45) ports

1

Internal memory type

DDR5-SDRAM

Processor cores

20

HDMI ports quantity

1

Storage media

SSD

Processor boost frequency

5.2 GHz

Total storage capacity

512 GB

Optical drive type

No

Card reader integrated

No

Memory clock speed

5600 MHz

Memory layout (slots x size)

1 x 16 GB

Maximum internal memory

64 GB

DisplayPorts quantity

1

Operating relative humidity (H-H)

20 - 80%

Ethernet LAN data rates

100 Mbit/s
1000

Audio system

High Definition Audio

Ethernet LAN

Yes

Volume

1 L

Storage relative humidity (H-H)

10 - 90%

Non-operating altitude

0 - 12192 m

VESA mounting

Yes

Cable lock slot

Yes

Placement supported

Vertical

HDMI version

2.1

DisplayPort version

1.4a

Product colour

Black

Performance cores

8

Processor manufacturer

Intel

Performance-core Max Turbo Frequency

5 GHz

Efficient cores

12

Processor cache type

Smart Cache

Processor generation

Intel® Core™ i7 (14th gen)

Maximum turbo power

106 W

Processor base power

35 W

Processor cache

33 MB

Efficient-core Max Turbo Frequency

3.7 GHz

Discrete graphics card

No

On-board graphics card

Yes

On-board graphics card model

Intel UHD Graphics 770

On-board graphics card family

Intel® UHD Graphics

Discrete graphics card model

Not available

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Antenna type

2x2

SSD interface

PCI Express 4.0

SSD form factor

M.2

Total SSDs capacity

512 GB

NVMe

Yes

Number of SSDs installed

1

Combo headphone/mic port

Yes

Processor threads

28

Motherboard chipset

Intel Q670

Colour name

Raven Black

Trusted Platform Module (TPM)

Yes

Password protection

Yes

WLAN controller manufacturer

Intel

WLAN controller model

Intel Wi-Fi 6E AX211

Keyboard included

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

On-board GPU manufacturer

Intel

Trusted Platform Module (TPM) version

2.0

Cable lock slot type

Kensington

Memory channels

Dual-channel

Operating system language

English
Polish

Audio chip

Realtek ALC233VB

Cabling technology

10/100/1000Base-T(X)

Performance-core base frequency

1.3 GHz

Efficient-core base frequency

0.9 GHz

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4

Mouse included

Yes

Password protection type

BIOS
HDD
Power on
Supervisor

Power supply input frequency

50/60 Hz

Keyboard connectivity

Wired

Number of storage drives installed

1

Chassis type

Mini PC

Mouse connectivity

Wired

Display included

No

Power supply input voltage

100 - 240 V

Number of processors installed

1
