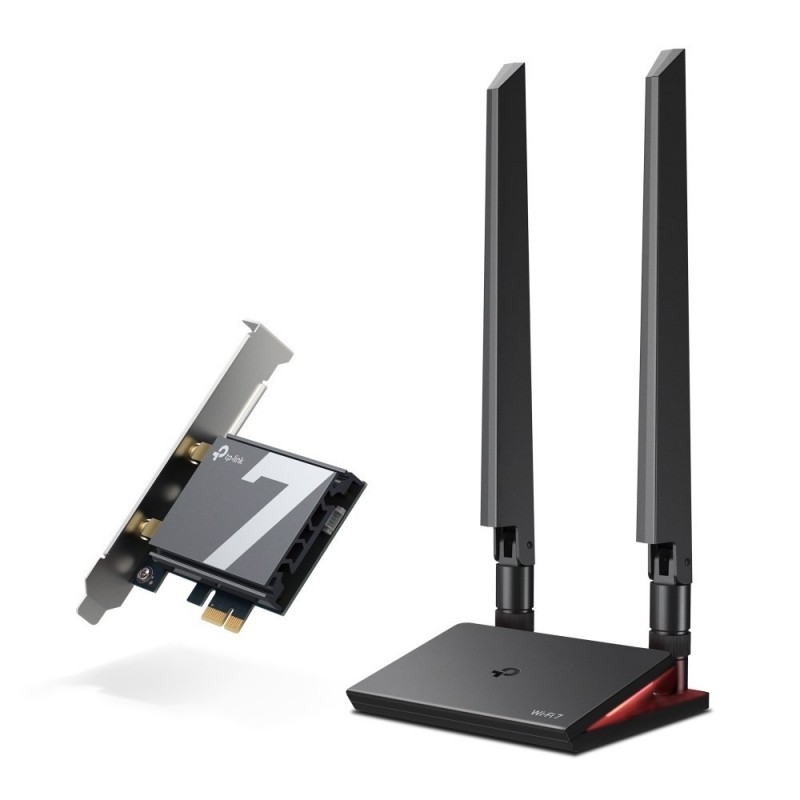

TP-Link Archer BE9300 Wi-Fi 7 Bluetooth 5.4 PCIe Adapter

Data sheet

Height

21.5 mm

Width

95.2 mm

Depth

120.8 mm

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

0 - 40 °C

Wi-Fi

Yes

Connectivity technology

Wireless

Interface

WLAN / Bluetooth

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)
Wi-Fi 6E (802.11ax)
Wi-Fi 7 (802.11be)

Operating relative humidity (H-H)

10 - 90%

LED indicators

Yes

Storage relative humidity (H-H)

5 - 90%

Certification

FCC/CE/IC/NCC/JRF/VCCI/BSMI

Product colour

Black

Security algorithms

WPA
WPA-PSK
WPA2
WPA2-PSK
WPA3

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-Fi band

Tri-band (2.4 GHz / 5 GHz / 6 GHz)

Component for

PC

Internal

Yes

Quick installation guide

Yes

Maximum data transfer rate

9300 Mbit/s

Host interface

PCI Express

Antenna design

External

Antenna

Yes

Networking standards

IEEE 802.11a
IEEE 802.11ac
IEEE 802.11ax
IEEE 802.11b
IEEE 802.11be
IEEE 802.11g
IEEE 802.11n

Receiver sensitivity

6 GHz: 11ax HE20 MCS0: -94 dBm; 11be EHT320 MCS13: -44dBm; 5 GHz: 11ac VHT20 MCS0: -94 dBm; 11be EHT160 MCS13: -48dBm; 2.4 GHz: 11n HT20 MSC0: -95 dBm; 11be EHT40 MSC13: -56dBm

Warnings

Do not expose to high temperatures.
