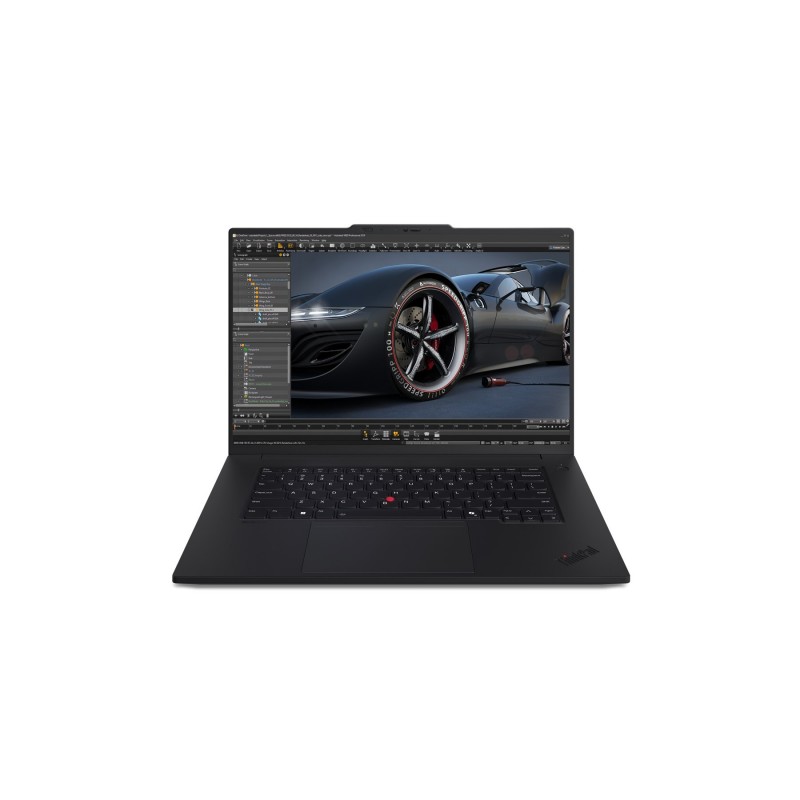

Lenovo ThinkPad P1 Gen 7 Intel Core Ultra 7 165H Mobile workstation 40.6 cm (16") WQXGA 32 GB LPDDR5x-SDRAM 1 TB SSD

Data sheet

Height

17.1 mm

Width

354.4 mm

Depth

241.2 mm

Weight

1.82 kg

battery capacity

90 Wh

Bluetooth

Yes

Bluetooth version

5.4

fingerprint reader

Yes

Product Type

Mobile workstation

touchscreen

No

SSD Capacity

1 TB

Smart Card Reader

No

Panel type

IPS

Storage temperature (T-T)

5 - 43 °C

Built-in microphone

Yes

Operating temperature (T-T)

5 - 35 °C

AC adapter included

Yes

Housing material

Aluminium

Internal memory

32 GB

Near Field Communication (NFC)

No

Display diagonal

40.6 cm (16")

Battery technology

Lithium Polymer (LiPo)

Compatible memory cards

SD

Processor model

165H

Wi-Fi standards

Wi-Fi 7 (802.11be)

Processor family

Intel Core Ultra 7

Front camera resolution (numeric)

5 MP

Operating system installed

Windows 11 Pro

Front camera

Yes

Internal memory type

LPDDR5x-SDRAM

Processor cores

16

HD type

WQXGA

HDMI ports quantity

1

Storage media

SSD

Processor boost frequency

5 GHz

Total storage capacity

1 TB

Keyboard backlit

Yes

Optical drive type

No

LED backlight

Yes

Card reader integrated

Yes

Operating system architecture

64-bit

WWAN

Not installed

Discrete graphics memory type

GDDR6

Memory clock speed

7500 MHz

Maximum refresh rate

165 Hz

Maximum internal memory

64 GB

Operating relative humidity (H-H)

8 - 95%

Audio system

Dolby Atmos

Ethernet LAN

No

Storage relative humidity (H-H)

5 - 95%

Display brightness

500 cd/m²

Contrast ratio (typical)

1200:1

Native aspect ratio

16:10

Cable lock slot

Yes

Bundled software

Intel Connectivity Performance Suite

Certification

Intel Evo Platform
TÜV Rheinland Low Blue Light
MIL-STD-810H

HDMI version

2.1

Product colour

Black

Performance cores

6

Processor manufacturer

Intel

Performance-core Max Turbo Frequency

5 GHz

Efficient cores

8

Processor cache type

Smart Cache

Processor generation

Intel® Core™ Ultra (Series 1)

Maximum turbo power

115 W

Processor base power

28 W

Processor cache

24 MB

Efficient-core Max Turbo Frequency

3.8 GHz

Discrete graphics card

Yes

On-board graphics card

Yes

On-board graphics card model

Intel Arc Graphics

On-board graphics card family

Intel Arc Graphics

Discrete graphics card model

NVIDIA GeForce RTX 4060

Memory form factor

CAMM module

AC adapter power

170 W

AC adapter frequency

50/60 Hz

AC adapter input voltage

100 - 240 V

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Mobile network connection

No

Antenna type

2x2

Anti-glare screen

Yes

RGB colour space

sRGB

Colour gamut

100%

Display resolution

2560 x 1600 pixels

Speaker power

2 W

Number of built-in speakers

2

SSD interface

PCI Express 4.0

SSD form factor

M.2

Total SSDs capacity

1 TB

NVMe

Yes

Number of SSDs installed

1

Combo headphone/mic port

Yes

Fast charging

Yes

Pointing device

ThinkPad UltraNav

Numeric keypad

No

Processor threads

22

Motherboard chipset

Intel SoC

Trusted Platform Module (TPM)

Yes

Password protection

Yes

WLAN controller manufacturer

Intel

WLAN controller model

Intel Wi-Fi 7 BE200

Number of microphones

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

On-board GPU manufacturer

Intel

Stylus pen

No

USB Type-C DisplayPort Alternate Mode

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Infrared (IR) camera

Yes

Spill-resistant keyboard

Yes

Trusted Platform Module (TPM) version

2.0

Cable lock slot type

Kensington

Maximum shipping altitude

3048 m

Memory channels

Dual-channel

Windows Hello

Yes

Operating system language

English
Polish

Audio chip

Realtek ALC3306

USB Sleep-and-Charge ports

1

USB Sleep-and-Charge

Yes

Intel® Thunderbolt 4

Yes

Thunderbolt 4 ports quantity

2

Discrete graphics card memory

8 GB

Discrete GPU manufacturer

NVIDIA

Performance-core base frequency

1.4 GHz

Efficient-core base frequency

0.9 GHz

Low Power Efficient-cores

2

Low Power Efficient-core Max Turbo Frequency

2.5 GHz

Low Power Efficient-core Base Frequency

700 MHz

Neural processor unit (NPU)

Intel AI Boost

Windows Studio effects support

Yes

AI software frameworks supported by NPU

DirectML
ONNX RT
OpenVINO
Windows ML

Maximum frequency NPU

1.4 GHz

Sparsity support

Yes

Compliance certificates

RoHS

M.2 SSD size

2280 (22 x 80 mm)

USB Power Delivery (USB PD)

Yes

USB Type-C charging port

Yes
