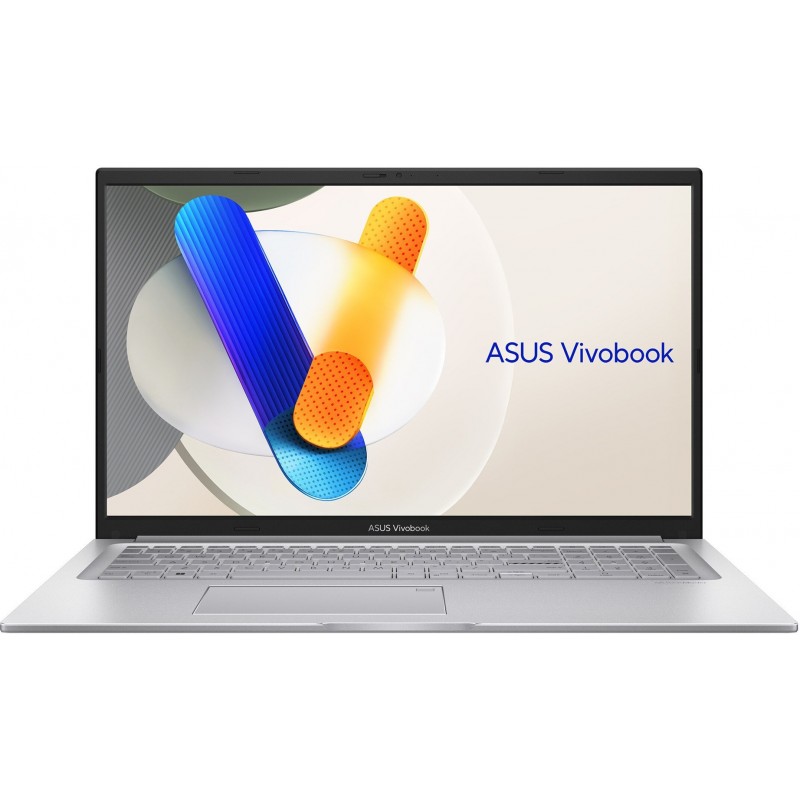

ASUS Vivobook 17 X1704VA-AU817W Core 5 120U 17.3"FHD IPS-level Panel 60Hz 250nits AG 16GB DDR4 SSD512 Intel Graphics

Data sheet

Height

19.9 mm

Width

399.3 mm

Depth

254.3 mm

Weight

2.1 kg

battery capacity

50 Wh

Bluetooth

Yes

Bluetooth version

5.2

Product Type

Laptop

touchscreen

No

SSD Capacity

512 GB

Memory slots

SO-DIMM

Panel type

IPS-Level

Built-in microphone

Yes

Built-in speaker(s)

Yes

Package weight

2.35 kg

USB 2.0 ports quantity

1

AC adapter included

Yes

Package width

515 mm

Package depth

65 mm

Package height

305 mm

Internal memory

16 GB

Display diagonal

43.9 cm (17.3")

Battery technology

Lithium-Ion (Li-Ion)

Processor model

120U

Wi-Fi standards

Wi-Fi 6 (802.11ax)

Processor family

Intel Core 5

Operating system installed

Windows 11 Home

Front camera

Yes

Internal memory type

DDR4-SDRAM

Processor cores

10

HD type

Full HD

HDMI ports quantity

1

Storage media

SSD

Processor boost frequency

5 GHz

Total storage capacity

512 GB

Optical drive type

No

LED backlight

Yes

Operating system architecture

64-bit

WWAN

Not installed

Memory layout (slots x size)

1 x 8 GB

Number of battery cells

3

Maximum refresh rate

60 Hz

Maximum internal memory

16 GB

Audio system

SonicMaster

Display brightness

250 cd/m²

Native aspect ratio

16:9

HDMI version

1.4

Display diagonal (metric)

43.9 cm

Product colour

Silver

Performance cores

2

Processor manufacturer

Intel

Performance-core Max Turbo Frequency

5 GHz

Efficient cores

8

Processor cache type

Smart Cache

Processor generation

Intel Core (Series 1)

Maximum turbo power

55 W

Processor base power

15 W

Processor cache

12 MB

Efficient-core Max Turbo Frequency

3.8 GHz

Discrete graphics card

No

On-board graphics card

Yes

On-board graphics card model

Intel Graphics

On-board graphics card family

Intel Graphics

Discrete graphics card model

Not available

Memory form factor

On-board + SO-DIMM

AC adapter power

45 W

AC adapter frequency

50 - 60 Hz

AC adapter output current

2.25 A

AC adapter input voltage

100 - 240 V

AC adapter output voltage

20 V

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Mobile network connection

No

Anti-glare screen

Yes

Display resolution

1280 x 720 pixels
1920 x 1080 pixels

SSD interface

PCI Express 4.0

SSD form factor

M.2

Total SSDs capacity

512 GB

NVMe

Yes

Number of SSDs installed

1

Combo headphone/mic port

Yes

Front camera HD type

HD

Pointing device

Touchpad

Numeric keypad

Yes

Processor threads

12

Colour name

Cool Silver

Trusted Platform Module (TPM)

Yes

Password protection

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

On-board GPU manufacturer

Intel

Keyboard layout

QWERTY

Performance-core base frequency

1.4 GHz

Efficient-core base frequency

0.9 GHz

M.2 SSD size

2280 (22 x 80 mm)

USB Power Delivery (USB PD)

Yes

USB Type-C charging port

Yes

Hazard pictogram(s)

GHS07: Harmful
GHS08: Health hazard
GHS09: Environmental hazard

Warnings

Do not dispose of your old device in the normal household waste - take it to an electronic waste collection point.
Do not expose to intense heat or open flame for prolonged periods.
Keep out of the reach of children.
