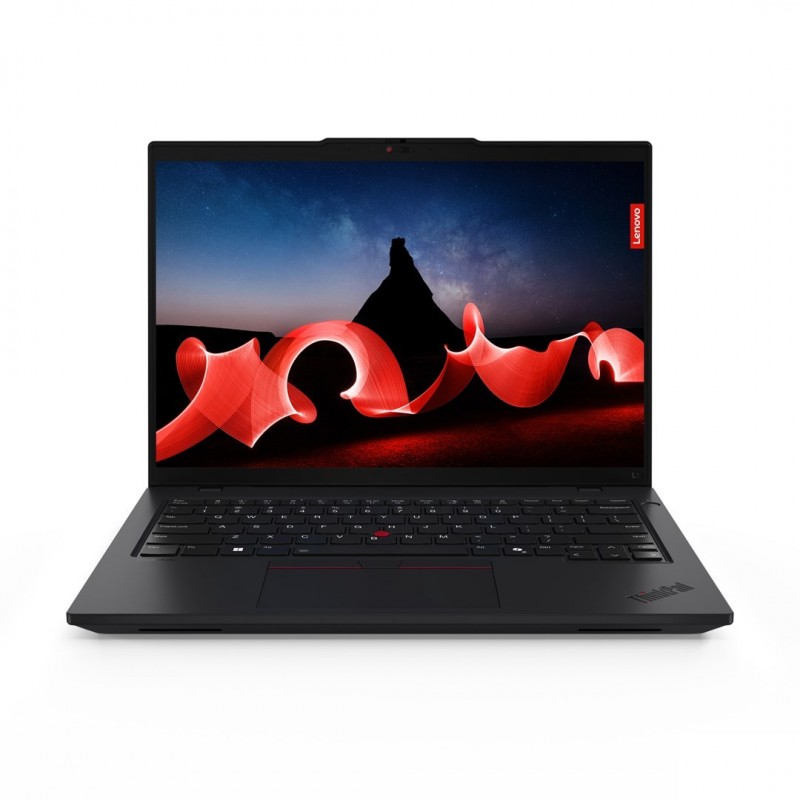

Lenovo ThinkPad L14 Gen 5 (AMD) AMD Ryzen™ 5 PRO 7535U Laptop 35.6 cm (14") WUXGA 16 GB DDR5-SDRAM 512 GB SSD Wi-Fi 6E

Data sheet

Height

18.9 mm

Width

313.7 mm

Depth

226 mm

Weight

1.41 kg

battery capacity

57 Wh

Bluetooth

Yes

Bluetooth version

5.3

form factor

Clamshell

fingerprint reader

Yes

Product Type

Laptop

touchscreen

No

SSD Capacity

512 GB

Smart Card Reader

Yes

Memory slots

2x SO-DIMM

Panel type

IPS

Storage temperature (T-T)

5 - 43 °C

Built-in microphone

Yes

Operating temperature (T-T)

5 - 35 °C

USB 2.0 ports quantity

1

Housing material

Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)

Internal memory

16 GB

Near Field Communication (NFC)

No

Display diagonal

35.6 cm (14")

Battery technology

Lithium Polymer (LiPo)

Processor model

7535U

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Processor family

AMD Ryzen™ 5 PRO

Processor frequency

2.9 GHz

Front camera resolution (numeric)

5 MP

Operating system installed

Windows 11 Pro

Front camera

Yes

Ethernet LAN (RJ-45) ports

1

Internal memory type

DDR5-SDRAM

Processor cores

6

HD type

WUXGA

Keyboard language

English

HDMI ports quantity

1

Storage media

SSD

Processor boost frequency

4.55 GHz

Total storage capacity

512 GB

Keyboard backlit

Yes

Optical drive type

No

LED backlight

Yes

Card reader integrated

No

Operating system architecture

64-bit

WWAN

Upgradable

Memory clock speed

4800 MHz

Memory layout (slots x size)

1 x 16 GB

Maximum refresh rate

60 Hz

Maximum internal memory

64 GB

Operating relative humidity (H-H)

8 - 95%

Ethernet LAN data rates

100 Mbit/s
1000 Mbit/s

Audio system

Dolby Audio

Ethernet LAN

Yes

Storage relative humidity (H-H)

5 - 95%

Display brightness

400 cd/m²

Contrast ratio (typical)

1000:1

Native aspect ratio

16:10

Cable lock slot

Yes

Certification

ErP Lot 6
ErP Lot 26
MIL-STD-810H

HDMI version

2.1

Product colour

Black

Sustainability certificates

ENERGY STAR
EPEAT Gold
ErP
TCO

Processor manufacturer

AMD

Processor cache type

L3

Processor generation

AMD Ryzen PRO 7000 Series

Processor base power

28 W

Processor cache

19 MB

Discrete graphics card

No

On-board graphics card

Yes

On-board graphics card model

AMD Radeon 660M

On-board graphics card family

AMD Radeon

Discrete graphics card model

Not available

Memory form factor

SO-DIMM

AC adapter power

65 W

AC adapter frequency

50/60 Hz

AC adapter input voltage

100 - 240 V

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Mobile network connection

No

Antenna type

2x2

Anti-glare screen

Yes

RGB colour space

NTSC

Colour gamut

45%

Display resolution

1920 x 1200 pixels

Speaker power

2 W

Number of built-in speakers

2

SSD interface

PCI Express 4.0

SSD form factor

M.2

Total SSDs capacity

512 GB

NVMe

Yes

Number of SSDs installed

1

Combo headphone/mic port

Yes

Fast charging

Yes

Pointing device

ThinkPad UltraNav

Numeric keypad

No

Processor threads

12

Motherboard chipset

AMD SoC

Colour name

Black

Trusted Platform Module (TPM)

Yes

Password protection

Yes

WLAN controller manufacturer

Qualcomm

Number of microphones

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Sustainability compliance

Yes

On-board GPU manufacturer

AMD

USB Type-C DisplayPort Alternate Mode

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Infrared (IR) camera

Yes

Spill-resistant keyboard

Yes

Trusted Platform Module (TPM) version

2.0

Cable lock slot type

Kensington

Maximum shipping altitude

3048 m

USB4 Gen 3x2 ports quantity

1

Memory channels

Dual-channel

Windows Hello

Yes

Operating system language

English
Polish

Audio chip

Realtek ALC3287

USB Sleep-and-Charge ports

1

USB Sleep-and-Charge

Yes

Compliance certificates

RoHS

Password protection type

BIOS
Power on
SSD
Supervisor

Privacy camera

Yes

Privacy type

Privacy shutter

USB Power Delivery (USB PD)

Yes
