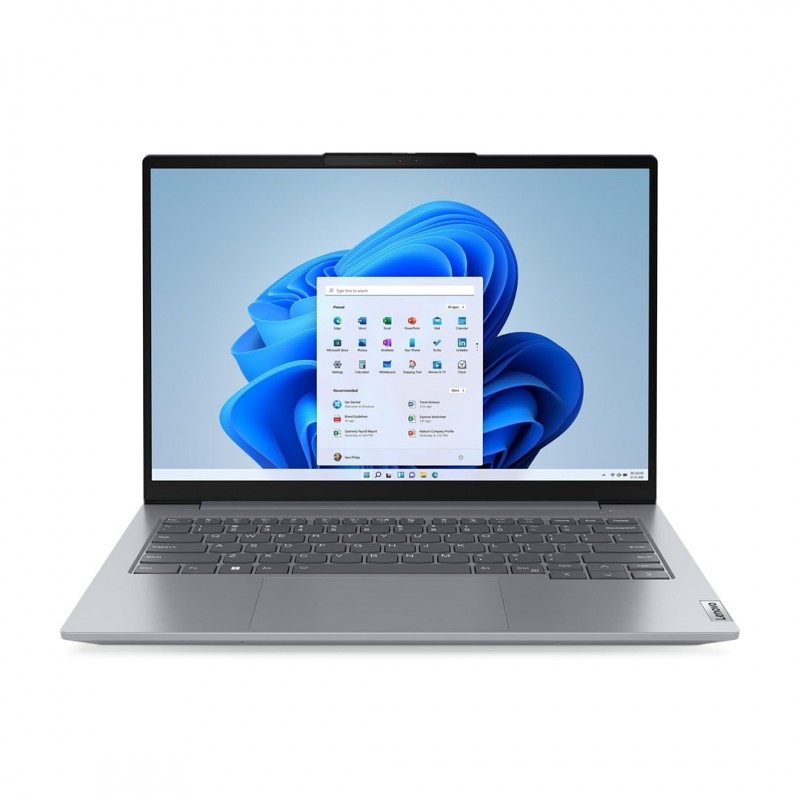

Lenovo ThinkBook 16 G6 IRL 14 G6 i3-1315U 14.0"WUXGA 16GB SSD512 Intel UHD Graphics 45Wh W11Pro

Data sheet

Height

16.9 mm

Width

313.5 mm

Depth

224 mm

Weight

1.38 kg

battery capacity

45 Wh

Bluetooth

Yes

Bluetooth version

5.1

fingerprint reader

Yes

Product Type

Laptop

touchscreen

No

SSD Capacity

256 GB

Memory slots

2x SO-DIMM

Panel type

IPS

Storage temperature (T-T)

5 - 43 °C

Built-in microphone

Yes

Operating temperature (T-T)

5 - 35 °C

Housing material

Aluminium

Internal memory

8 GB

Battery life (max)

9.03 h

Display diagonal

35.6 cm (14")

Battery technology

Lithium Polymer (LiPo)

Compatible memory cards

SD

Processor model

i3-1315U

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Processor family

Intel® Core™ i3

Operating system installed

Windows 11 Home

Front camera

Yes

Ethernet LAN (RJ-45) ports

1

Internal memory type

DDR5-SDRAM

Processor cores

6

HD type

WUXGA

HDMI ports quantity

1

Storage media

SSD

Processor boost frequency

4.5 GHz

Total storage capacity

256 GB

Keyboard backlit

Yes

Optical drive type

No

LED backlight

Yes

Card reader integrated

Yes

Memory clock speed

5200 MHz

Memory layout (slots x size)

1 x 8 GB

Maximum refresh rate

60 Hz

Maximum internal memory

64 GB

Operating relative humidity (H-H)

8 - 95%

Ethernet LAN data rates

100
1000 Mbit/s

Audio system

Dolby Audio

Ethernet LAN

Yes

Storage relative humidity (H-H)

5 - 95%

Display brightness

300 cd/m²

Native aspect ratio

16:10

Cable lock slot

Yes

Certification

FSC certified package
ErP Lot 6
ErP Lot 26
MIL-STD-810H

HDMI version

2.1

Product colour

Grey

Performance cores

2

Processor manufacturer

Intel

Performance-core Max Turbo Frequency

4.5 GHz

Efficient cores

4

Processor cache type

Smart Cache

Processor generation

Intel Core i3-13xxx

Maximum turbo power

55 W

Processor base power

15 W

Processor cache

10 MB

Efficient-core Max Turbo Frequency

3.3 GHz

Discrete graphics card

No

On-board graphics card

Yes

On-board graphics card model

Intel® UHD Graphics

On-board graphics card family

Intel® UHD Graphics

Discrete graphics card model

Not available

Memory form factor

SO-DIMM

AC adapter power

65 W

AC adapter frequency

50/60 Hz

AC adapter input voltage

100 - 240 V

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Mobile network connection

No

Antenna type

2x2

Anti-glare screen

Yes

RGB colour space

NTSC

Colour gamut

45%

Display resolution

1920 x 1200 pixels

Speaker power

2 W

Number of built-in speakers

2

SSD interface

PCI Express 4.0

SSD form factor

M.2

Total SSDs capacity

256 GB

NVMe

Yes

Number of SSDs installed

1

Combo headphone/mic port

Yes

Front camera resolution

1920 x 1080 pixels

Front camera HD type

Full HD

Fast charging

Yes

Pointing device

Touchpad

Numeric keypad

No

Motherboard chipset

Intel SoC

Colour name

Arctic Grey

Trusted Platform Module (TPM)

Yes

Password protection

Yes

Number of microphones

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Fast charging time (50%)

30 min

Continuous video playback time

13.78 h

USB Type-C DisplayPort Alternate Mode

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Spill-resistant keyboard

Yes

Trusted Platform Module (TPM) version

2.0

Cable lock slot type

Kensington

Maximum shipping altitude

3048 m

Memory channels

Dual-channel

Operating system language

Japanese

Audio chip

Realtek ALC3287

USB Sleep-and-Charge ports

1

USB Sleep-and-Charge

Yes

Intel® Thunderbolt 4

Yes

Thunderbolt 4 ports quantity

1

Compliance certificates

RoHS

USB Power Delivery (USB PD)

Yes
