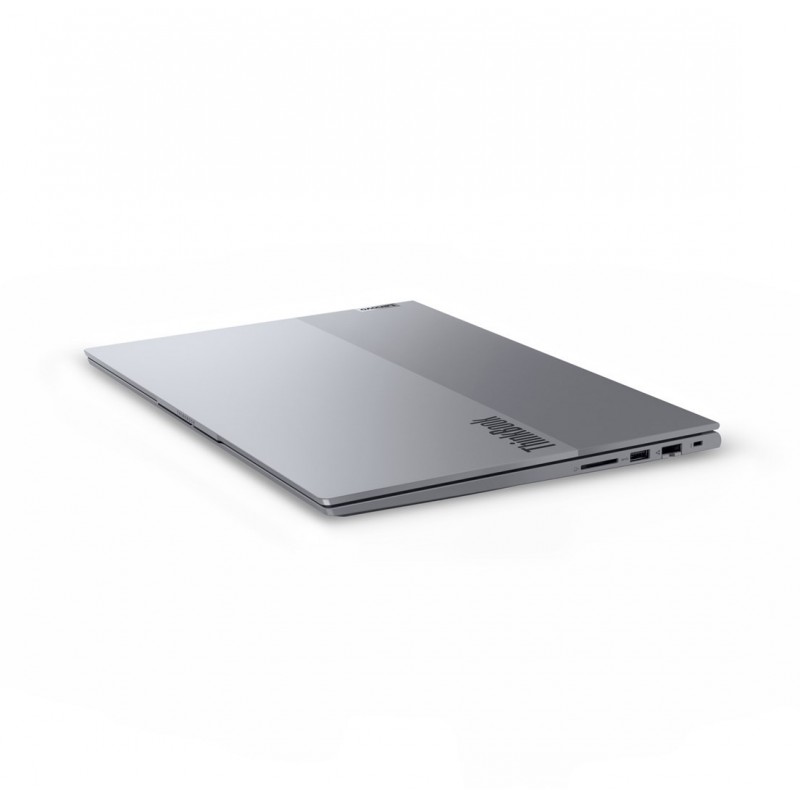

Lenovo TB 16 G7 Ultra 5 125U 16" 16GB 512GB WUXGA W11P

Data sheet

Height

17.5 mm

Width

356 mm

Depth

253.5 mm

Weight

1.7 kg

battery capacity

45 Wh

Bluetooth

Yes

fingerprint reader

Yes

Product Type

Laptop

touchscreen

No

SSD Capacity

512 GB

Memory slots

2x SO-DIMM

Panel type

IPS

Storage temperature (T-T)

5 - 43 °C

Built-in microphone

Yes

Operating temperature (T-T)

5 - 35 °C

AC adapter included

Yes

Housing material

Polycarbonate (PC), Acrylonitrile butadiene styrene (ABS)

Internal memory

16 GB

Display diagonal

40.6 cm (16")

Battery technology

Lithium Polymer (LiPo)

Compatible memory cards

SD

Processor model

125U

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Processor family

Intel Core Ultra 5

Operating system installed

Windows 11 Pro

Front camera

Yes

Ethernet LAN (RJ-45) ports

1

Internal memory type

LPDDR5-SDRAM

Processor cores

12

HD type

WUXGA

HDMI ports quantity

1

Storage media

SSD

Processor boost frequency

4.3 GHz

Total storage capacity

512 GB

Keyboard backlit

Yes

Optical drive type

No

LED backlight

Yes

Card reader integrated

Yes

Operating system architecture

64-bit

WWAN

Not installed

Memory clock speed

5600 MHz

Memory layout (slots x size)

1 x 16 GB

Maximum internal memory

64 GB

Operating relative humidity (H-H)

8 - 95%

Ethernet LAN data rates

100
1000 Mbit/s

Audio system

Dolby Audio

Ethernet LAN

Yes

Storage relative humidity (H-H)

5 - 95%

Display brightness

300 cd/m²

Native aspect ratio

16:10

Cable lock slot

Yes

Certification

ErP Lot 6
ErP Lot 26
TCO Certified 9.0
MIL-STD-810H

HDMI version

2.1

Product colour

Grey

Performance cores

2

Processor manufacturer

Intel

Performance-core Max Turbo Frequency

4.3 GHz

Efficient cores

8

Processor cache type

Smart Cache

Processor generation

Intel® Core™ Ultra (Series 1)

Maximum turbo power

57 W

Processor base power

15 W

Processor cache

12 MB

Efficient-core Max Turbo Frequency

3.6 GHz

Discrete graphics card

No

On-board graphics card

Yes

On-board graphics card model

Intel Graphics

On-board graphics card family

Intel Graphics

Discrete graphics card model

Not available

Memory form factor

SO-DIMM

AC adapter power

65 W

AC adapter frequency

50/60 Hz

AC adapter input voltage

100 - 240 V

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Mobile network connection

No

Antenna type

2x2

Anti-glare screen

Yes

RGB colour space

NTSC

Colour gamut

45%

Display resolution

1920 x 1200 pixels

Speaker power

2 W

Number of built-in speakers

2

SSD interface

PCI Express 4.0

SSD form factor

M.2

Total SSDs capacity

512 GB

NVMe

Yes

Number of SSDs installed

1

Combo headphone/mic port

Yes

Fast charging

Yes

Pointing device

Touchpad

Numeric keypad

Yes

Processor threads

14

Motherboard chipset

Intel SoC

Colour name

Arctic Grey

Trusted Platform Module (TPM)

Yes

Password protection

Yes

Number of microphones

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

On-board GPU manufacturer

Intel

USB Type-C DisplayPort Alternate Mode

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Spill-resistant keyboard

Yes

Trusted Platform Module (TPM) version

2.0

Cable lock slot type

Kensington

Maximum shipping altitude

3048 m

Audio chip

Realtek ALC3287

USB Sleep-and-Charge ports

1

USB Sleep-and-Charge

Yes

Intel® Thunderbolt 4

Yes

Thunderbolt 4 ports quantity

1

Performance-core base frequency

1.3 GHz

Efficient-core base frequency

0.8 GHz

Low Power Efficient-cores

2

Low Power Efficient-core Max Turbo Frequency

2.1 GHz

Low Power Efficient-core Base Frequency

700 MHz

Neural processor unit (NPU)

Intel AI Boost

Windows Studio effects support

Yes

AI software frameworks supported by NPU

DirectML
ONNX RT
OpenVINO
Windows ML

Maximum frequency NPU

1.4 GHz

Sparsity support

Yes

Compliance certificates

RoHS

USB Power Delivery (USB PD)

Yes

USB Type-C charging port

Yes

Hazard pictogram(s)

GHS07: Harmful
GHS08: Health hazard
GHS09: Environmental hazard

Warnings

Do not dispose of your old device in the normal household waste - take it to an electronic waste collection point.
Do not expose to intense heat or open flame for prolonged periods.
Keep out of the reach of children.
